Chapter 3 Cabling K2 SAN devices
Two NH1-10GE K2 Media Servers – Dell R610 PowerEdge – Nearline 10R K2 SAN
Connect the motherboard GigE port 1 (control) to a control port on the GigE
switch. For the NL10R system, connect server A to GigE switch A and connect
server B to the GigE switch B.
Connect the 10 Gig FTP port to the 10 Gig port on the rear of the GigE switch.
For the NL10R system, connect server A to GigE switch A and connect server
B to the GigE switch B.
Connect Fibre Channel ports to the RAID storage device. For the NL10 system,
connect one Fibre Channel port to the RAID controller. For the NL10R system,
on each server connect one Fibre channel port to controller 0 and one Fibre
channel port to controller 1.
• For the NL10R system, install MPIO software on the NH-10GE K2 Media Server.

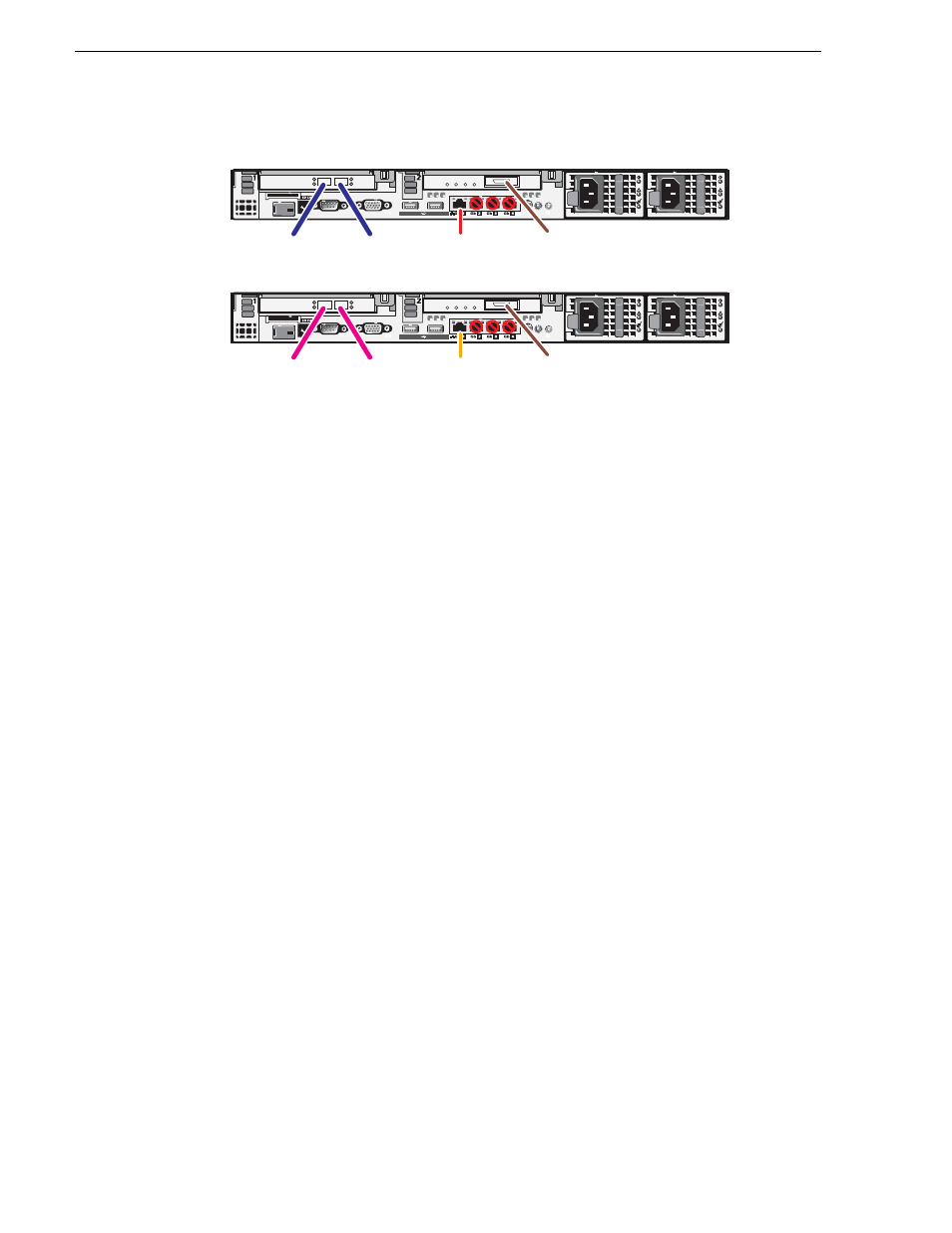

Fibre Channel to
RAID controller 1 Fibre Channel to
RAID controller 0 To control port
on GigE switch A
Fibre Channel to
RAID controller 1 Fibre Channel to
RAID controller 0 To control port
on GigE switch B
A
B
FTP: To 10 Gig port
on GigE switch A
FTP: To 10 Gig port
on GigE switch B
