Chapter 3
72 Ascent Xtrata Pro User's Guide

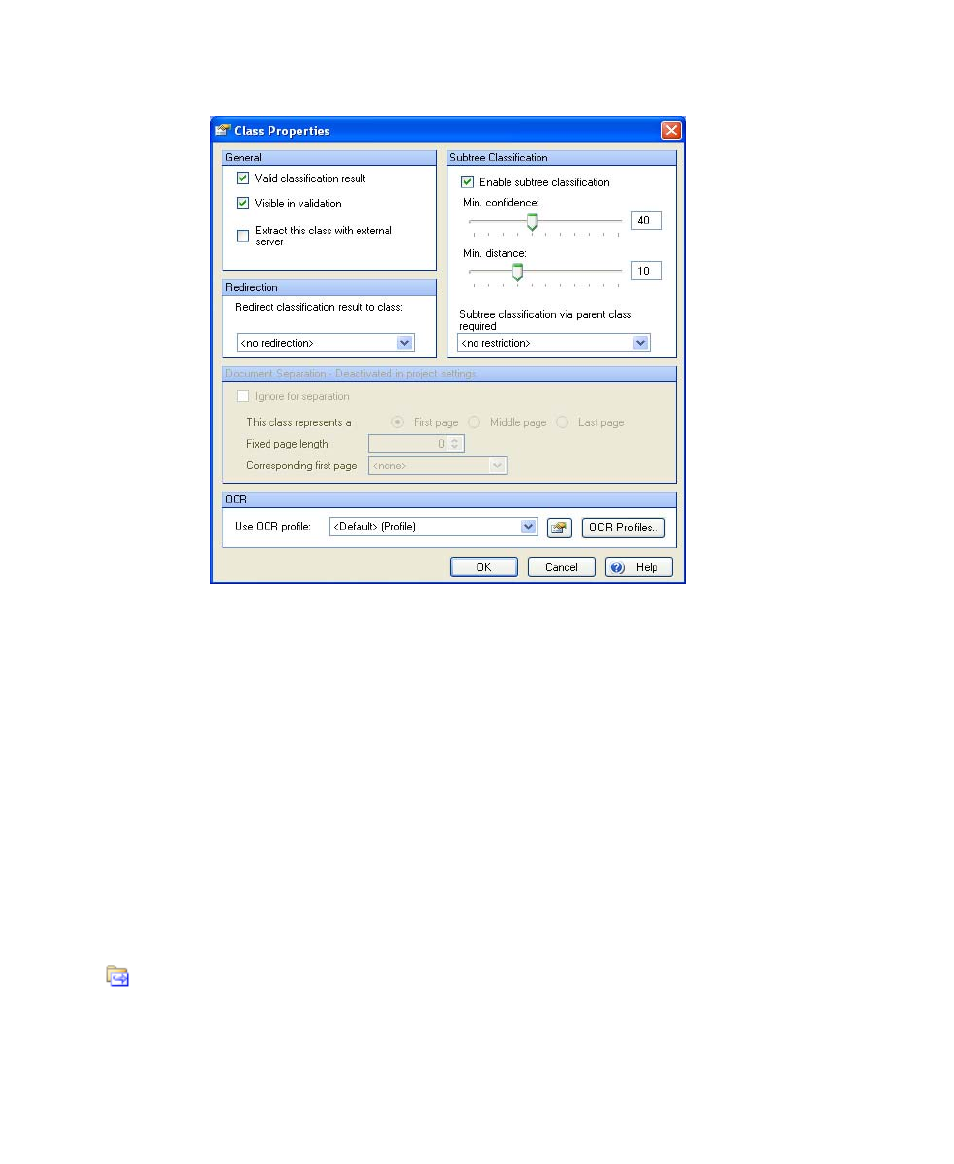

Figure 3-10. Class Properties Dialog Box – Subtree Classification
3
Select “Enable subtree classification” and modify the confidence and distance
thresholds as appropriate.
4 Click OK to save your settings and close the dialog box. The icon next to the
class in the hierarchy will change to indicate that subtree classification is
enabled.
Redirection
The redirection rule forces a classification result to be replaced with some other class.
It does not require any particular class relationships, and is invoked only once at the
very end of the classification evaluation process. This redirection is absolute, and no
subtree classification or other classification rules are applied after the redirection
occurs.
A class with redirection is indicated by a special folder icon.
