Chapter 4
150 Ascent Xtrata Pro User's Guide
X To create a language Classification Locator
1 For an existing project, select any class in the project class hierarchy.
2 Select Show Extraction Design from the Mode toolbar.
3 Create a new locator named Language Locator and select Classification
Locator from the drop-down list of locator methods.

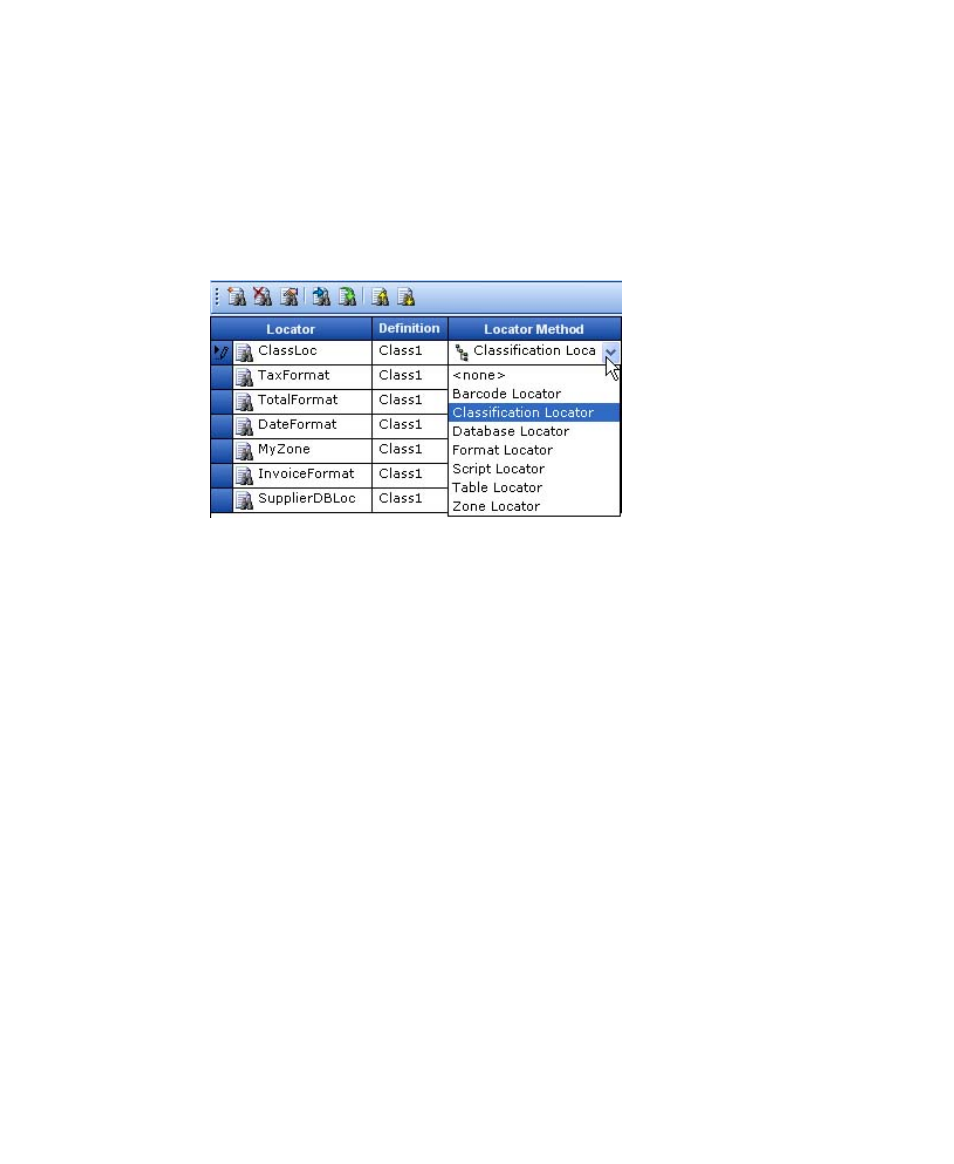

Figure 4-22. Adding a New Classification Locator
4
Double-click the new locator to open the Properties dialog box.
5
Use the file selection dialog box to select an external classification project
(extension .fpr). A sample language classification project named
Language.fpr is provided with the installation in the Samples directory.
6
Close the properties dialog box to save your settings.
7
Create a field for the selected class (for example, Language) to hold the
results, and assign the language Classification Locator to the field.
8 Select a sample document.
9 Click Extract Current Document or Process Current Document in the toolbar
of the Document Viewer.
10
Display the Extraction Results using the Mode toolbar.
