Kofax Getting Started with Ascent Xtrata Pro - Manual (Page 456)

Project Builder User Interface
Ascent Xtrata Pro User's Guide 437
Database Evaluator Dialog Box – General Tab
Use the General tab to select the database and to map database fields to locators.

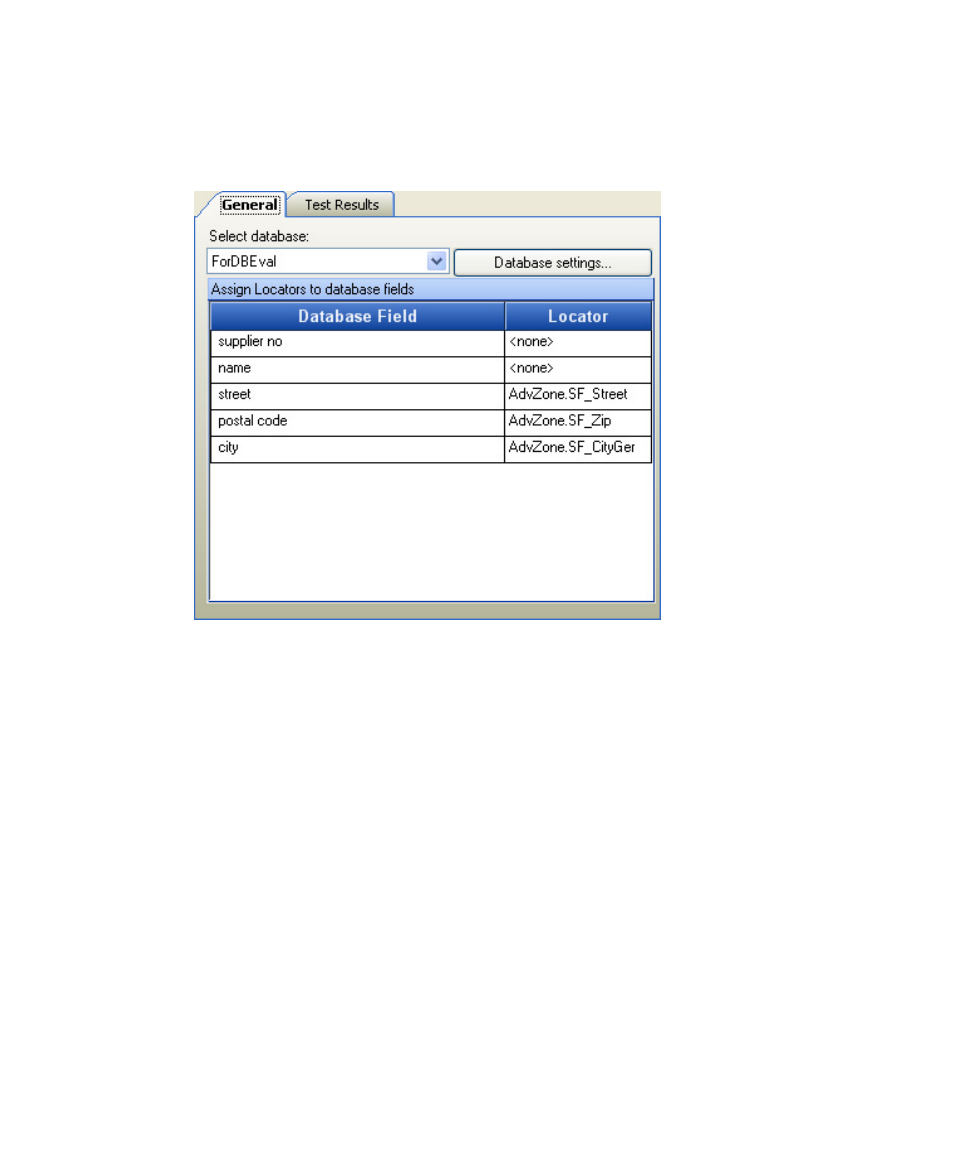

Figure 6-91. Database Evaluator – General Tab
Database Area
Select database
Select the database to be used in this locator this from the list.
Database settings
Click this button, to open the Project Settings dialog box – Databases tab to add a
new database or to change the properties of an existing database.
Assign Locators to database fields
All the database fields will appear in the left column, and each row in the right
column contains lists with all the available locators. Each database field can be
mapped to a specific locator. The results from each locator will be placed in this field
and then the database will be searched in accordance with the field mapping.
