Project Builder User Interface
Ascent Xtrata Pro User's Guide 419
Insert Sample
Click this button to add a document as sample file. The first sample file is used as
reference document on which all zones are defined.
Note
For one class there is only one set of sample documents. If you define
several Advanced Zone Locators, they share the same set of sample pages and
reference document.
Delete Sample
Click this button to remove the currently selected sample document from the list.
Background Removal
If at least five samples of the same class of document have been added, you can take
advantage of the background removal feature. Click Create Info to process the
necessary data.
Advanced Zone Locator Properties Dialog Box – Zones Tab
Use the Zones tab to define the type of registration and manage the zones added to
the reference document.

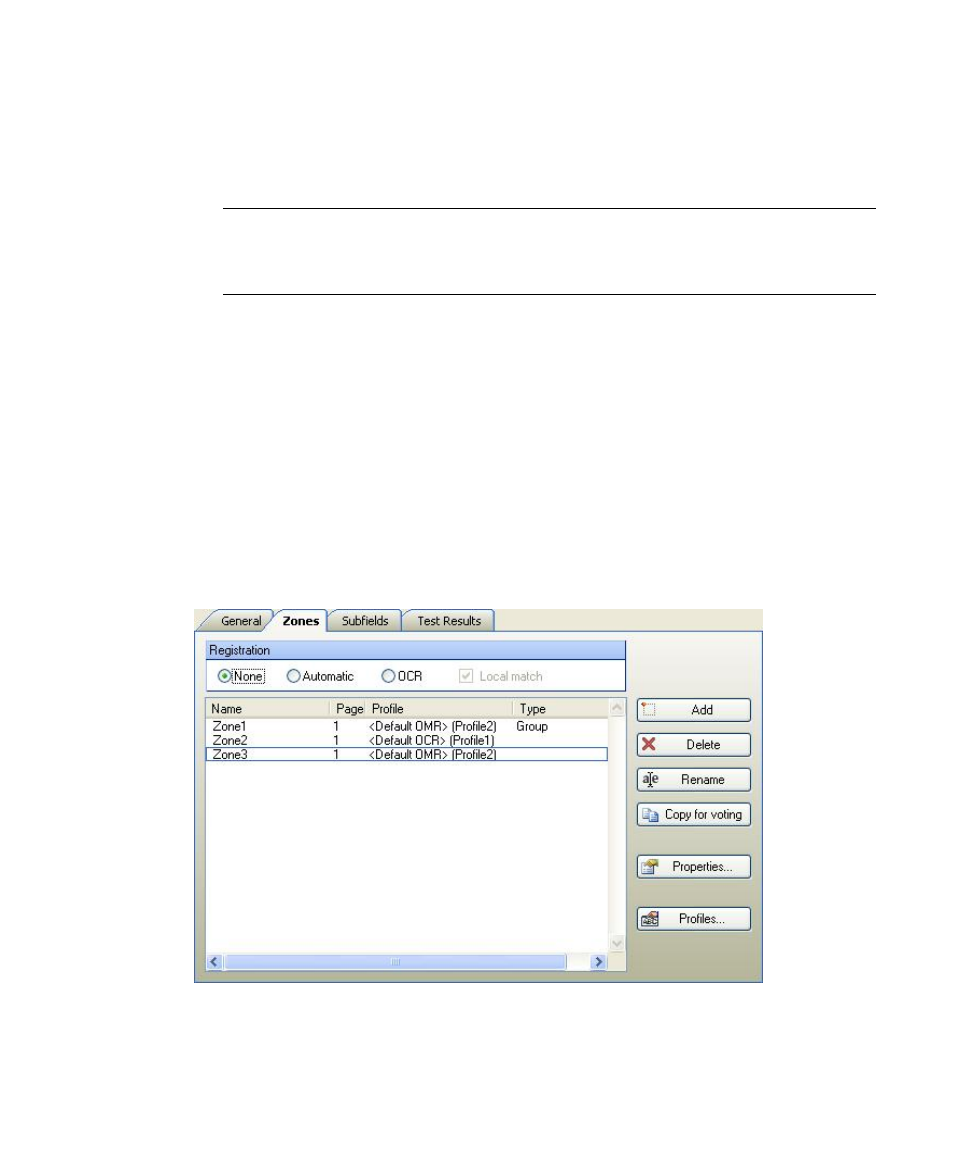

Figure 6-79. Advanced Zone Locator’s - Zones Tab
