Project Builder User Interface
Ascent Xtrata Pro User's Guide 497
Delete
Click this button to remove the currently selected zone.
Rename
Click this button to change the zone’s name.
Properties
Click this button to open the zone’s properties dialog box.
Zone Locator Properties Dialog Box – SubFields Tab
Use the Subfields tab to create subfields and map them to the zones.

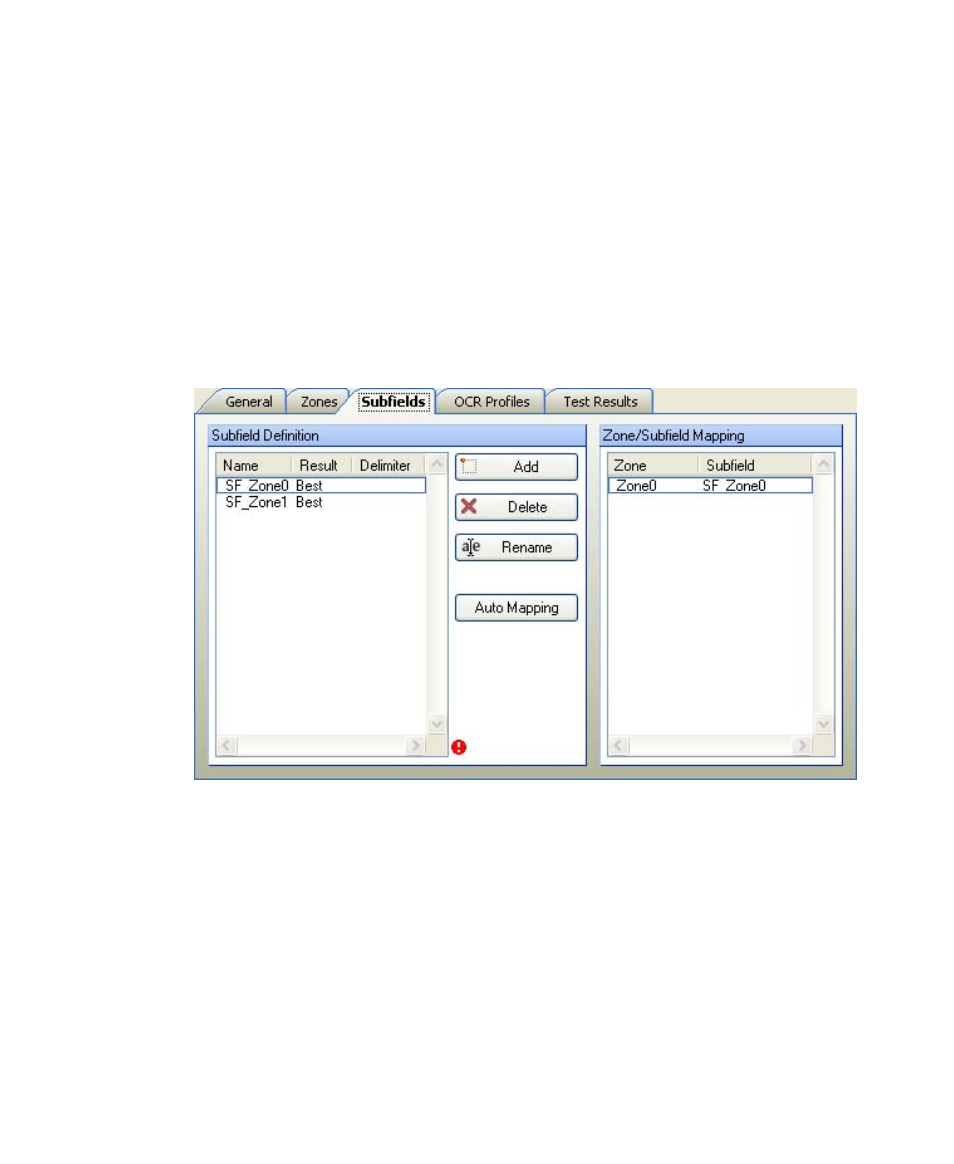

Figure 6-132. Zone Locator Properties - SubFields Tab
Subfield Definition
The panel shows a list of all subfields that have been created for the locator. Subfields
are fields that can be assigned to extraction fields.
For each subfield, you can specify what results are to be returned by selecting Best or
All from the list. If All is selected, you can specify delimiters by entering them in the
Delimiter column.
Buttons
