Chapter 3
82 Ascent Xtrata Pro User's Guide
Selection list. With a value of 2 or higher, some images will not be displayed if
they are not put into an existing cluster. You can use this, for example, if you
want to hide documents that appear only once inside the directory.
X To use image clustering for creating a training set
1 From the main menu bar, select Tools | Image Clustering. The Image
clustering wizard dialog box will display.
2
Select a directory
3
Adjust the various settings as desired.
4
Click Start. The Image Clustering window will display and show thumbnails
of the images being processed. It closes automatically when all images are
processed.

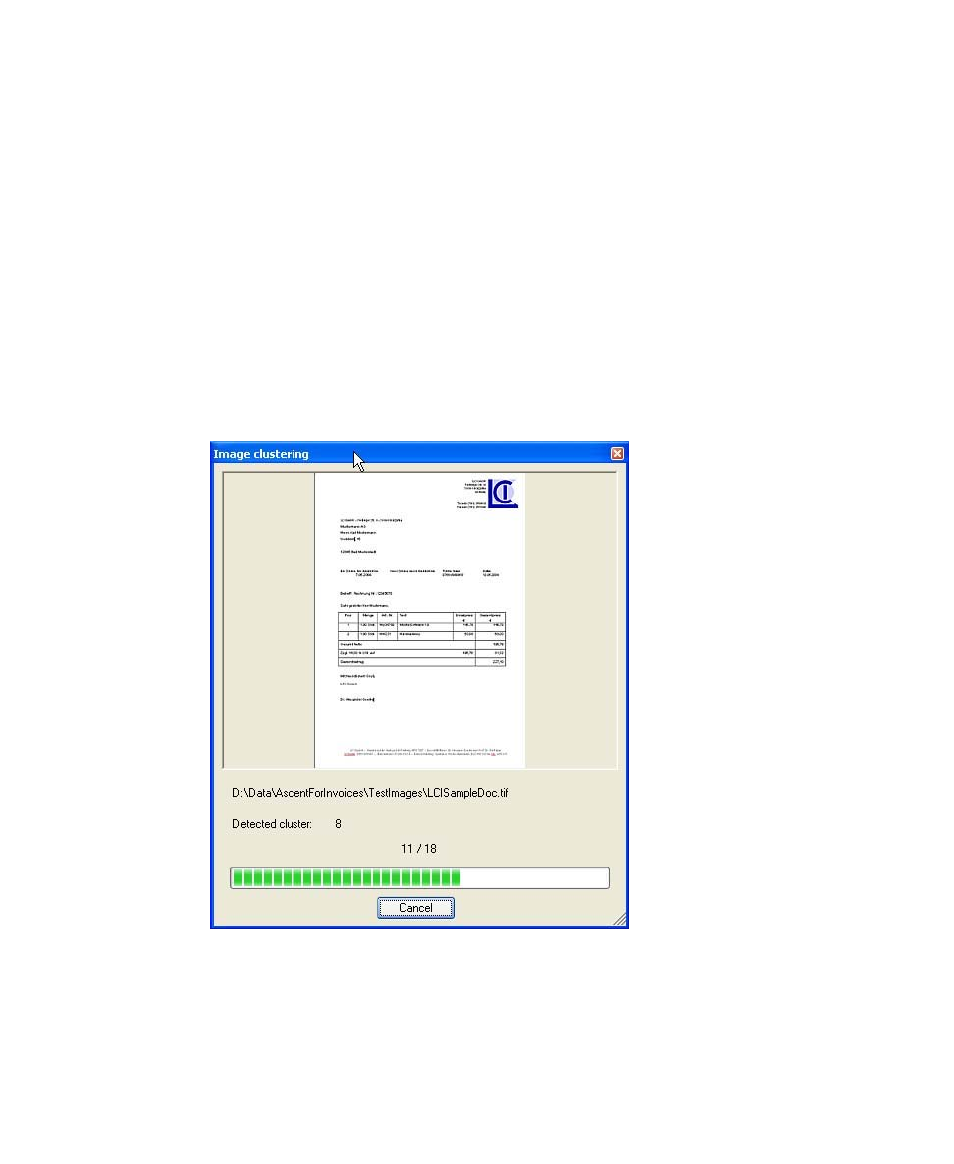

Figure 3-17. Performing Image Clustering
5
The clusters are placed in the Selection list. Double-click an entry to view an
image file inside a cluster.
