Project Builder User Interface
Ascent Xtrata Pro User's Guide 487
Test
Click this button to test the settings. The results are shown on the Test Results
tab, which is automatically selected.
Help
Click this button to view the online Help topic for this dialog box
Table Locator Properties Dialog Box – Settings Tab
Use the Settings tab to make general settings and configure the types of extraction.

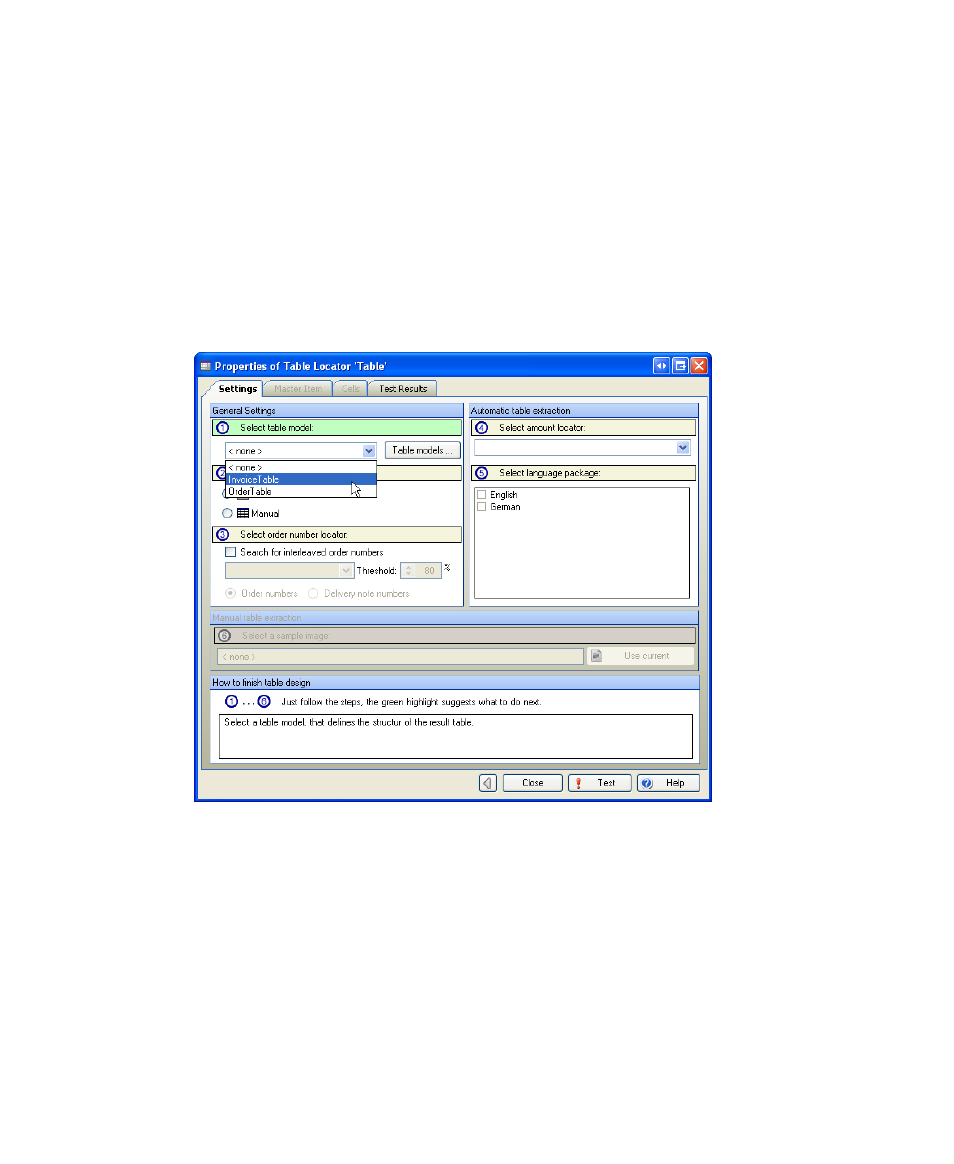

Figure 6-126. Table Locator Properties – Settings Tab
General Settings
Use the general settings panel to select the table model, the detection mode, and the
order number locator.
Select table model
Select a table model from the list.
