Kofax Getting Started with Ascent Xtrata Pro - Manual (Page 147)

Chapter 4
128 Ascent Xtrata Pro User's Guide

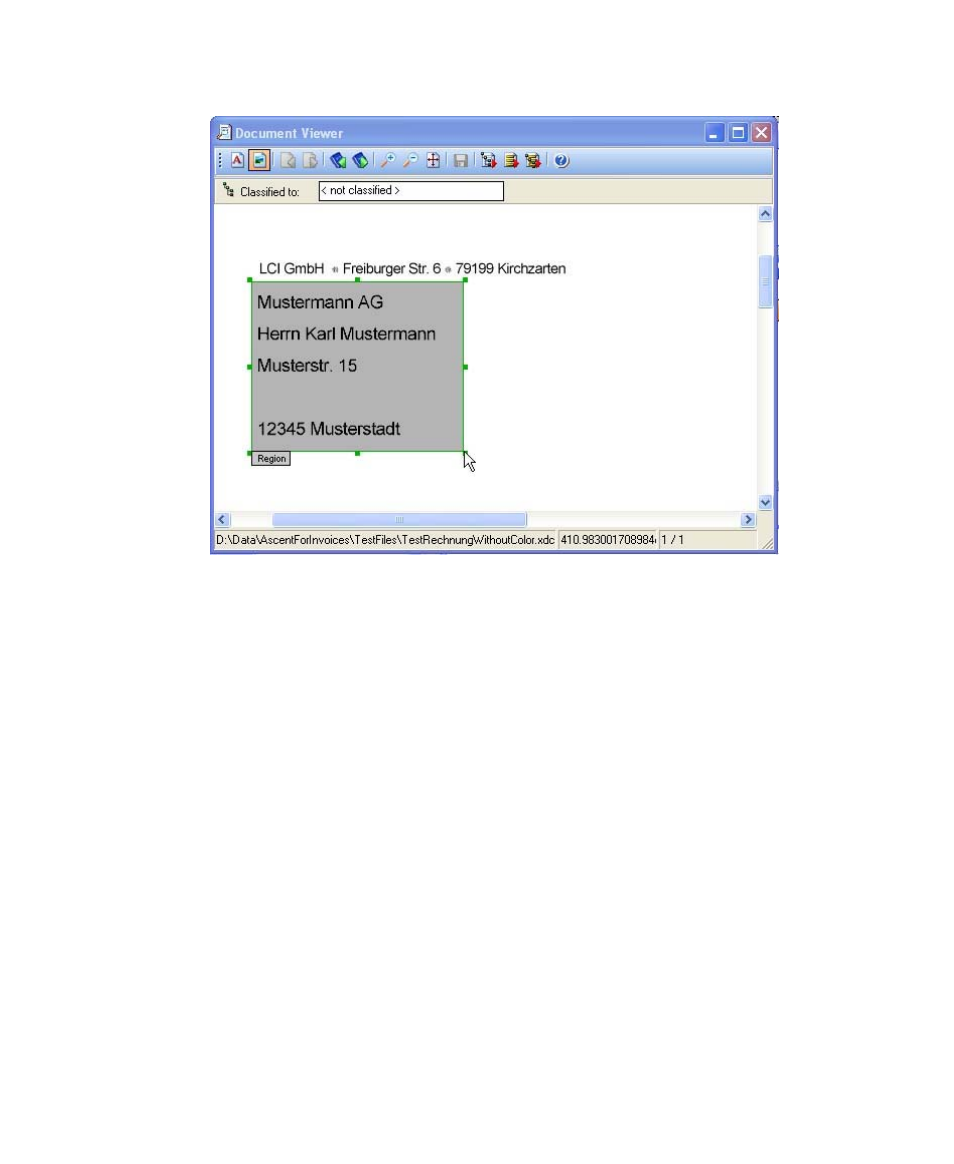

Figure 4-15. Manually Drawing a Region in the Document Viewer
6
Specify whether the locator is for all pages or a specific page. You can make
your selection from the “Enable locator for” area or the Page column for the
locator.
7
Specify the desired Access setting.
8
Click Test to show the result for a selected test document.
9
Click Close to save the settings and to exit the dialog box.
For more information about the settings of the Regions tab, see Project Builder User
Interface – Format Locator Properties Dialog Box – Regions Tab.
X To locate an item on any page in the entire document
1
Open the Properties dialog box for the locator.
2
Select the Regions tab.
3
If necessary select All pages from the “Enable locator for” panel (this is
normally selected by default).
