HP Hitachi Dynamic Link Manager Software Licenses - Manual (Page 189)

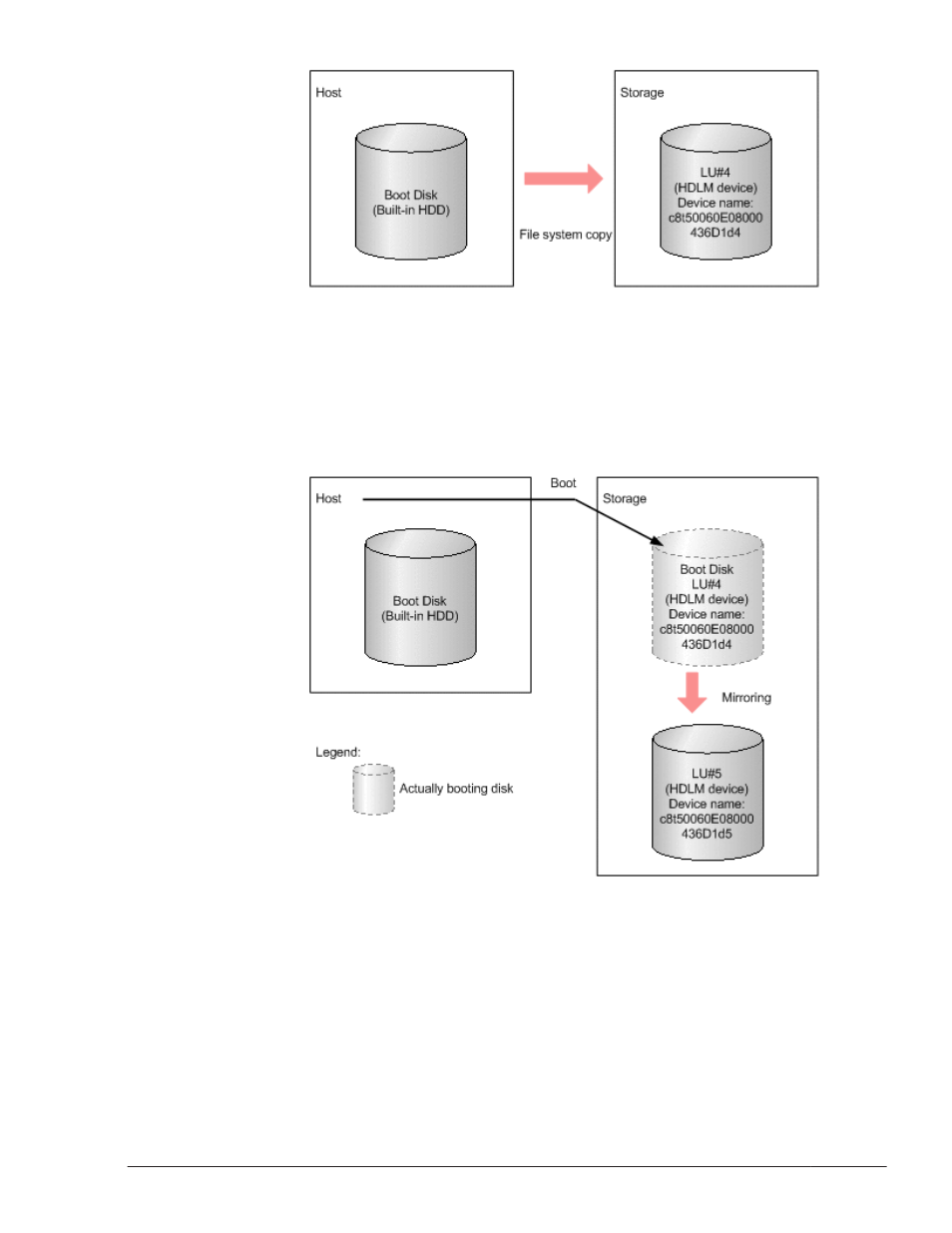

Figure 3-15 Configuring a boot disk environment in which HDLM manages
the boot disk, from the local boot disk environment
Mirroring a Boot Disk Environment in Which HDLM Manages the Boot Disk by
Using SVM
Mirror a configured boot disk by using SVM. The following figure provides an
overview of mirroring a boot disk environment.
Figure 3-16 Mirroring a boot disk environment in which HDLM manages
the boot disk
In this example, the LU device names of the boot disks are
c8t50060E08000436D1d4 and c8t50060E08000436D1d5, as shown in figure
above.
In the examples of commands and settings here, assume that the following
slices are allocated:
Creating an HDLM Environment
3-123
Hitachi Dynamic Link Manager (for Solaris) User Guide
