Extended Least Blocks. See Setting Up the HDLM Functions on page
3-140 , and select the appropriate load balancing algorithm as required.
¢
Nothing is displayed for Support Cluster even if you are using cluster
software. However, the cluster-support functions are, in fact,
operating without problem.
10
.
By checking the execution results of the view operation, verify the
version of the installed HDLM.
If HDLM Version is x.x.x-xx, the installed version of HDLM is correct.
The installed version of HDLM is shown for x.x.x-xx.
11
.
By checking the execution results of the view operation, verify that the
programs are running normally.
If HDLM Manager, HDLM Alert Driver, and HDLM Driver are all Alive, the
programs are running normally.
Installing HDLM in an LDoms Environment
This section explains how to install HDLM in a system configuration in which
HDLM-managed sd or ssd devices are assigned as virtual disks for the guest
domain.
The following figure shows a configuration example before installing HDLM.

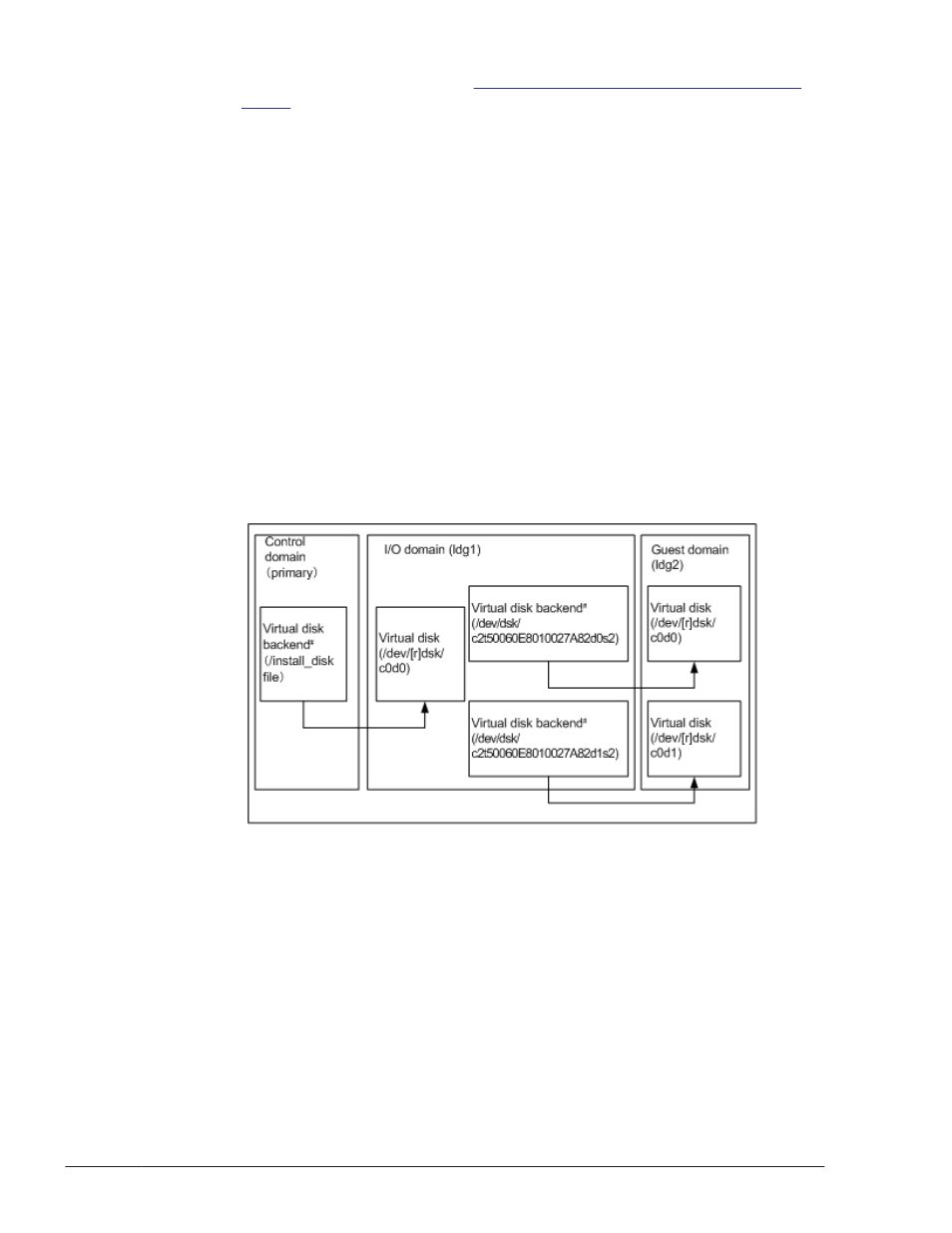

Figure 3-6 Configuration Example (Before Installation)
#
A virtual disk backend is a location where virtual disk data is stored. A
disk, disk slice, file, or volume (such as ZFS, SVM, and VxVM) can be
used for the backend.
In the control domain, register the install_disk file on a built-in disk as a
virtual disk backend. The I/O domain recognizes this disk as a virtual disk.
The device name of this virtual disk is /dev/[r]dsk/c0d0. In the I/O domain,
register an sd or ssd device used in the storage system as a virtual disk
backend. The guest domain recognizes this disk as a virtual disk.
