Chapter 9
Hardware
231
Elevator Cab Setup

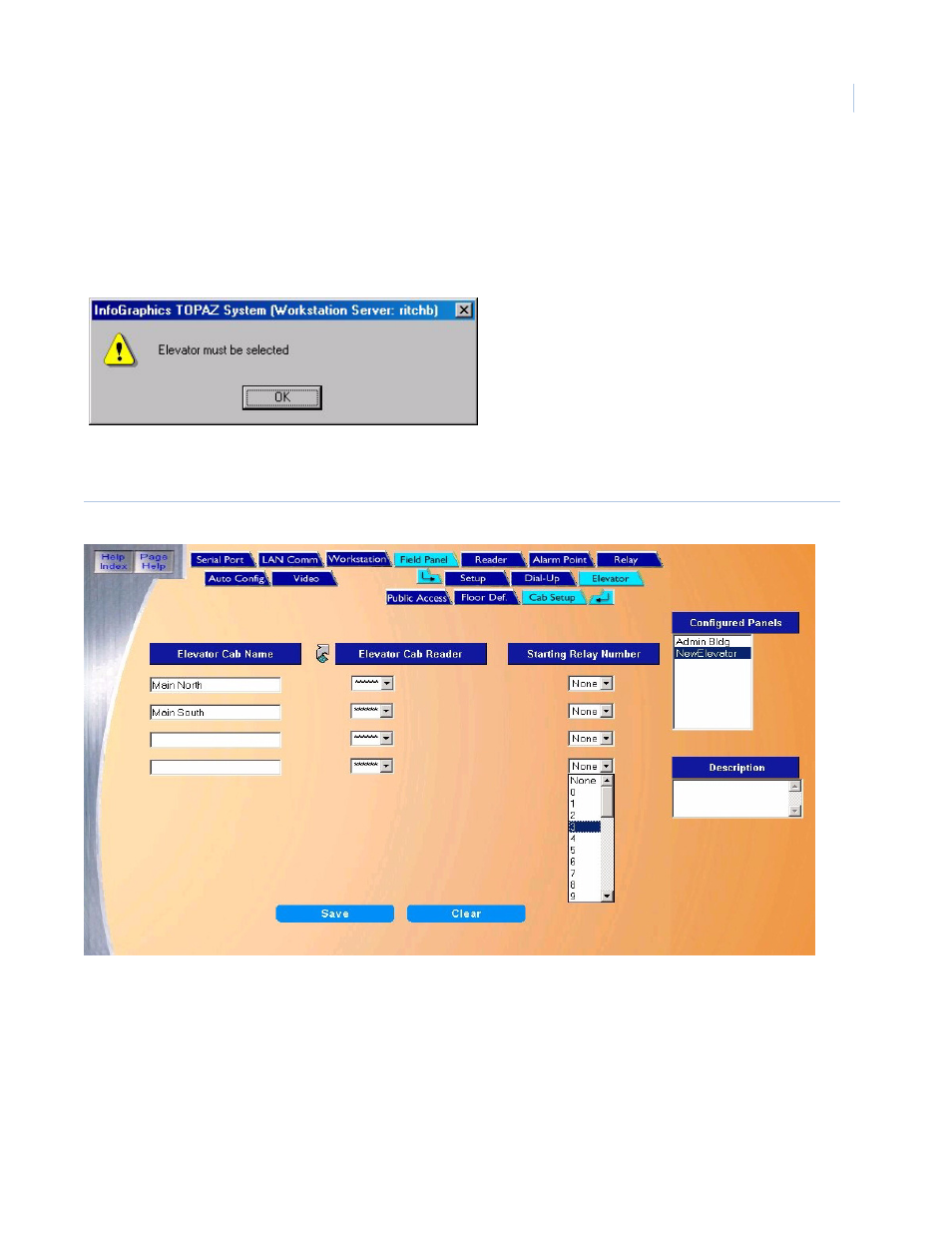

To navigate to the Cab Setup page from any page in the Field Panel Setup pages, on the Setup –
Field Panel page, first make sure you have a panel selected and Elevator Operation selected. If
you don’t, when you try to select Setup – Field Panel – Elevator, the “Elevator must be selected”
message displays:
After selecting Elevator Operation, click the Elevator tab button at the top of the window. The
following page displays.
Figure 169.Elevator: Cab Setup
Note: If you entered data on a new field panel to be used with the elevator cab, you must first save the data on the panel
before you can assign cab readers to this elevator device.
