75

SiteOmat Setup and Maintenance Manual – MDE 4817G

4-4.7. Page 7 - Pumps

In this page (see Figure 3-17), the user can define the pumps and configure the connection of the

pumps to the controller, printer and Fuel Point PLUS system. The screen displays a grid with a row

for every pump, according to the number of pumps defined on Page 4.

Proceed as follows:

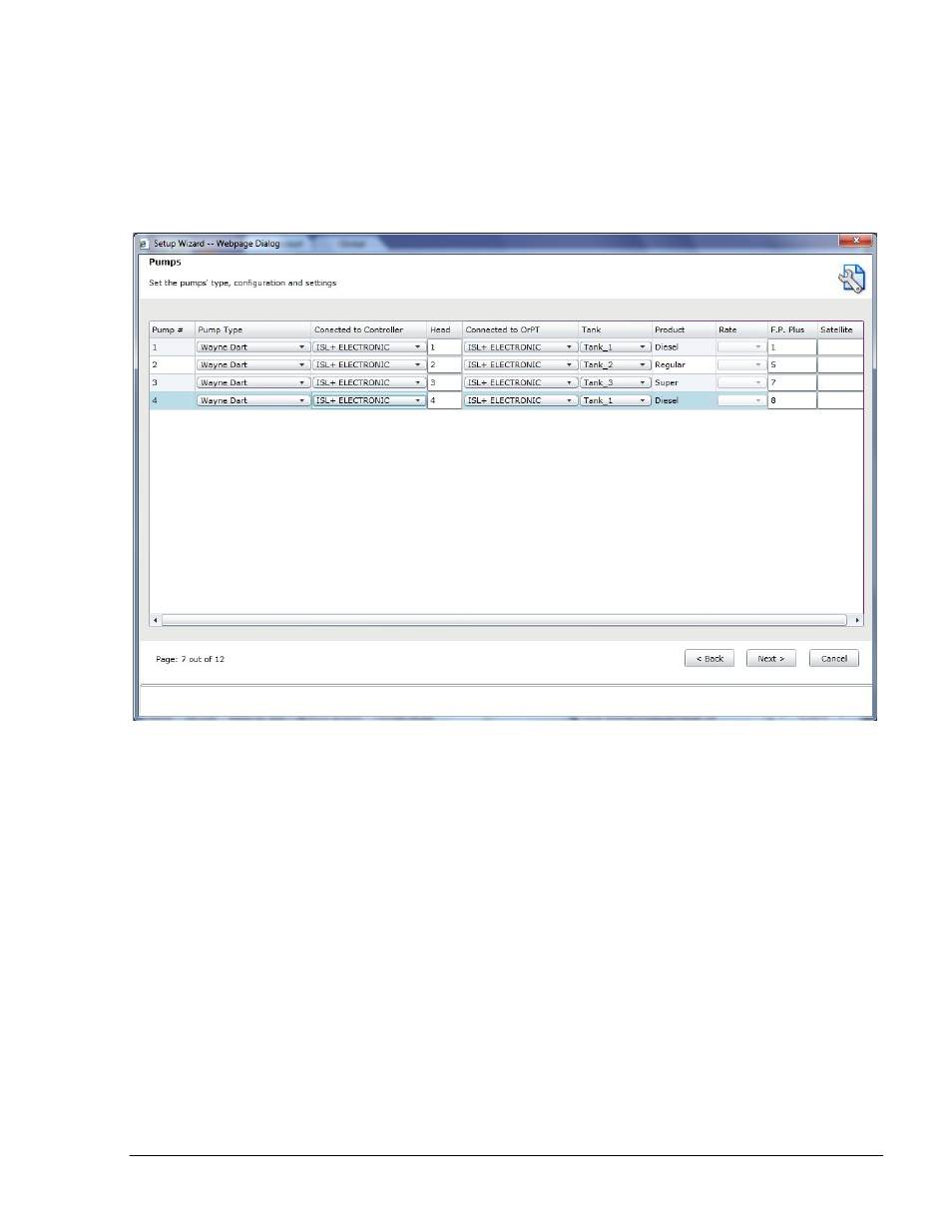

Figure 4-16. SiteOmat Setup Wizard, Page 7

1. Select the Pump Type from the drop-down list containing all supported pump types.

2. Select the Controller to which the pump is connected from the Connected to Controller

drop-down list containing the available controllers or peripherals as set on Page 3. The

wizard checks for compatibility between Controller and pump types selected and notifies the

user on the following mismatches:

a. You connected MPI pump to controller that do not have MPI slots

b. You connected more MPI than can be on a specific controller

c. Not all pumps are connected to controller

d. You connected more electronic pumps than can be on a specific controller.

3. Enter the Head number, namely the communication protocol address of the pump head, as

defined in the dispenser setup and acquired by the technician (must be less than 64)
