SiteOmat Setup and Maintenance Manual – MDE 4817G

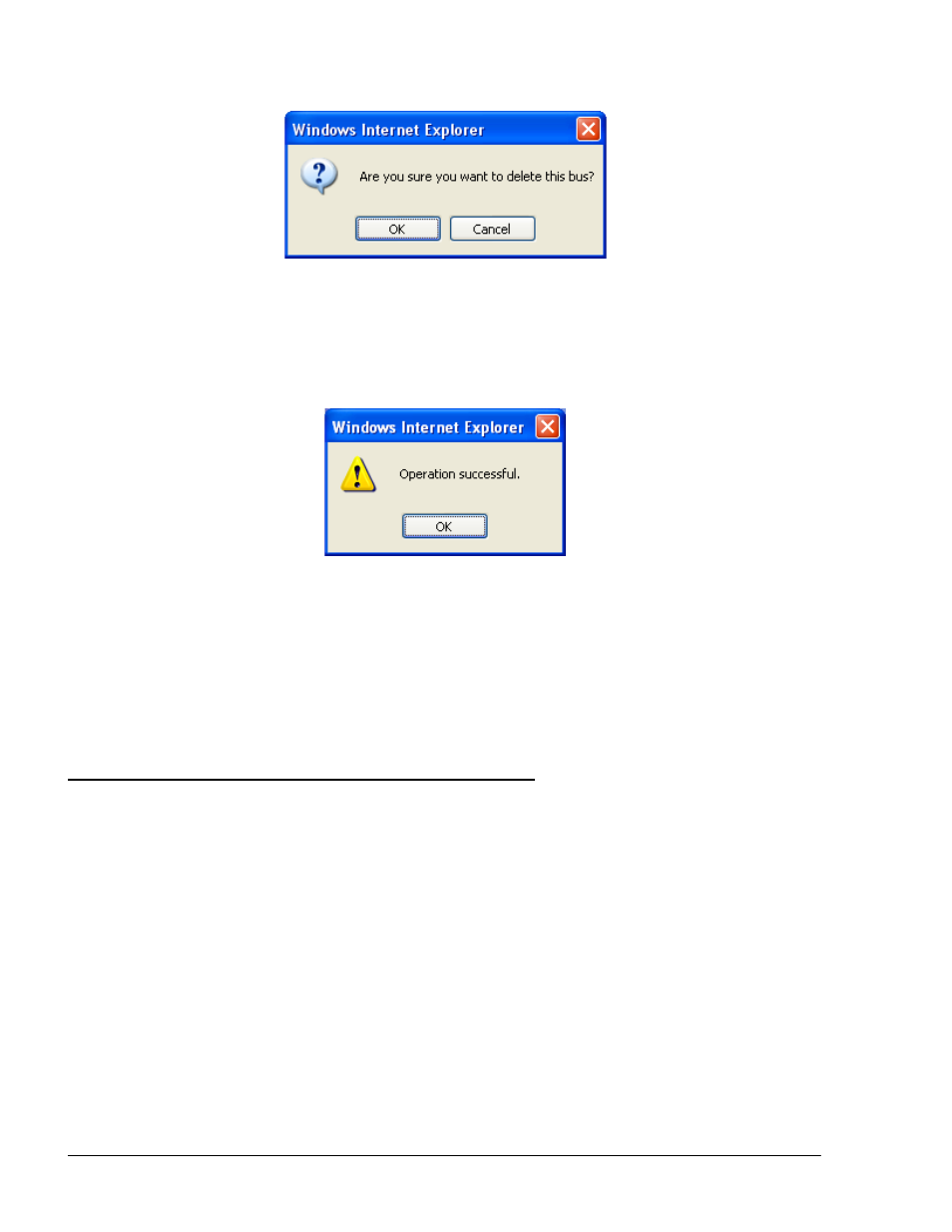

Figure 2-12. Confirmation Message

2-5.5. Success

In cases where an action has successfully completed, the success message is displayed (see

Figure 2-13).

Figure 2-13. Operation Successful Message

2-6. CONFIGURATION AND SETUP PROCEDURES

All setup steps are summarized into the following list, guiding the user through all the

installation stages, more details on each step are provided in the following chapters:

1. Open the door on the Islander PLUS or CFN PLUS (Controller)

2. Connect the pumps (or pump simulator) to the controller

3. Check the connections

4. Power on the pumps

5. Connect the controller to power and turn power on

6. Connect the technician PC to any free connector on the 5 port switch with an

Ethernet cable (CAT5E)

7. Set the technician's PC IP address to 192.168.1.10 (see APPENDIX E)

8. Open Internet Explorer 7.0 or higher on the connected computer
