SiteOmat Setup and Maintenance Manual – MDE 4817G
2-5. NAVIGATION NOTES
The user-interface of the SiteOmat application may display common messages during operation.
These messages are common to several situations, and they are provided below for general
information.
2-5.1. Not Saving Change
If data has been changed in a dialog box or a screen and the user tries to navigate away from it
without saving the changes, the following message is displayed (see Figure 2-6).

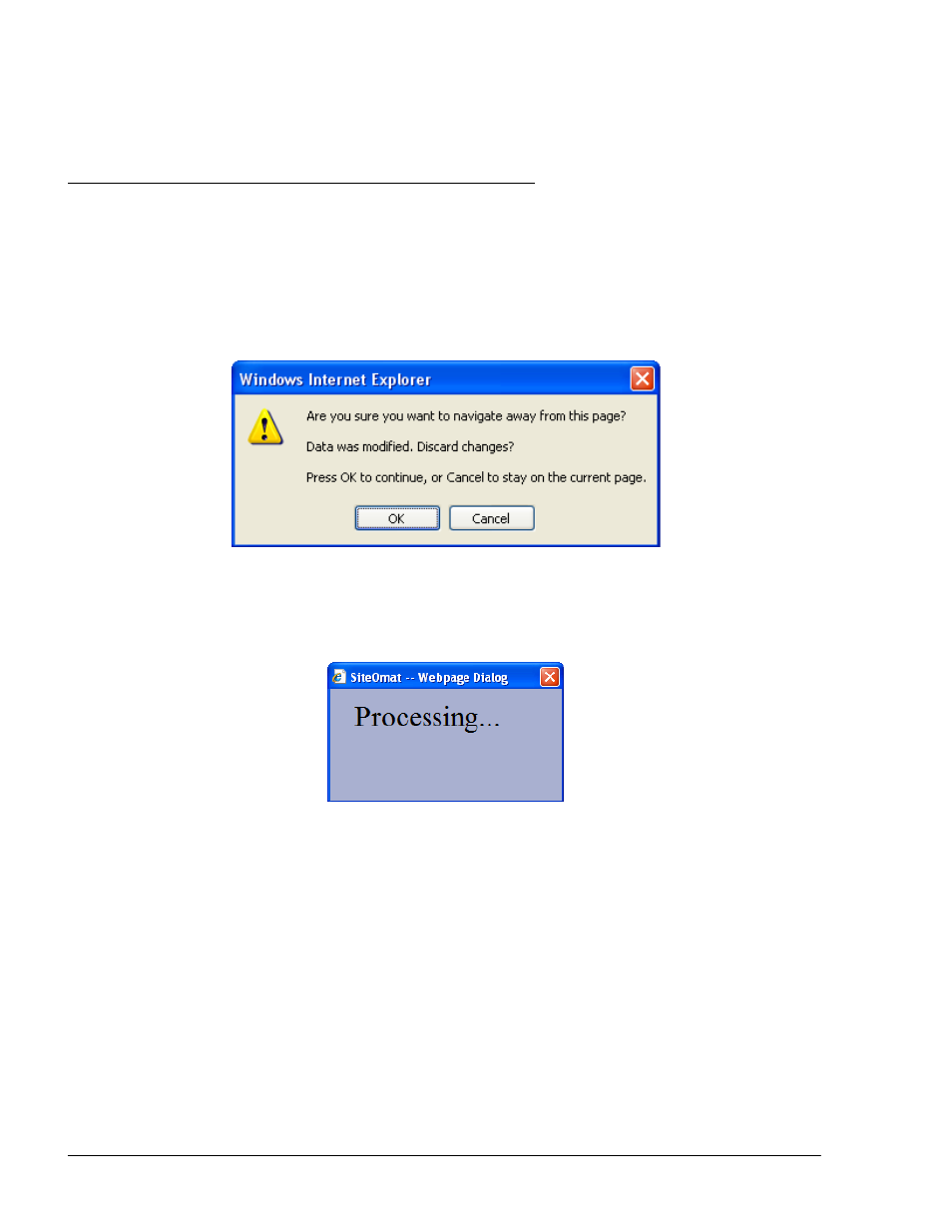

Figure 2-6. Cancel Warning Message
2-5.2. Saving Data
When saving data or performing an operation, the following message appears (see Figure 2-7).
Figure 2-7. Processing Message
Once the processing has successfully completed, the screens are updated to reflect the changes.
2-5.3. Errors
In all setup and definition dialogs, a validity check is made when clicking on New or Modify. The
first check is for duplicate definition of the same device. For the same device type (printer, bus,
etc.) the name must be unique. Attempting to define the same name displays the Operation failed
error message (see Figure 2-8).
