SiteOmat Setup and Maintenance Manual – MDE 4817G
Table F-1. W&M Security Plug Installation Kit P/N 819235520
P/N
Description
Packs
Qty.
819135510 Security Plug
1
814935530 Bracket
1
815504611 Spacer
2
F-3. INSTALLATION PROCEDURE
To install the W&M Security Plug, proceed as follows:
WARNING
Verify that the pedestal/cabinet is disconnected from
power supply during the course of the procedure.
1. Unlock the pedestal's/cabinet's door lock, utilizing the dedicated key
2. Locate the OrCU unit
3. Release and retain the two(2) spacers and spring washers from the RS-232 DB-9
connector using a ratchet (see Figure F-2)

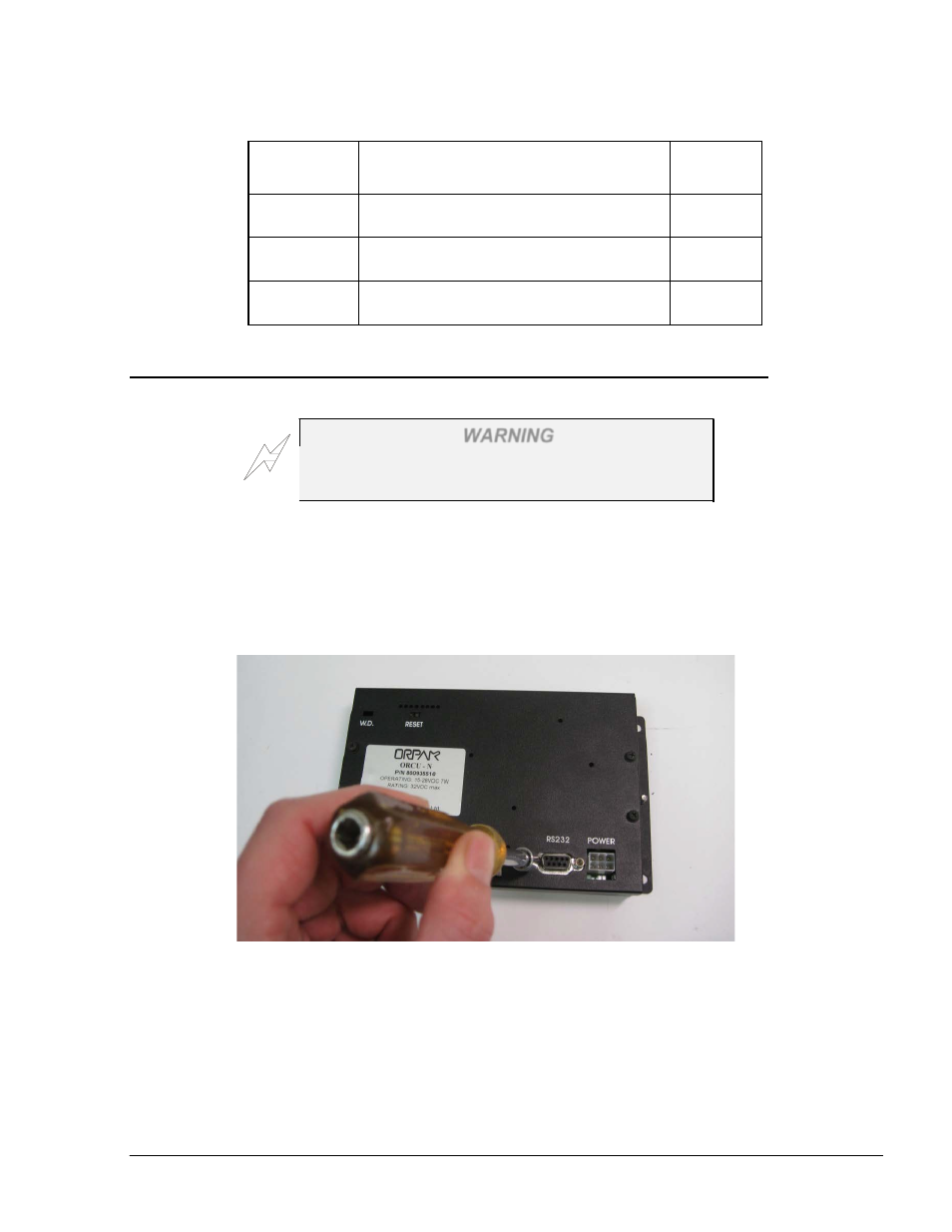

Figure F-2. Removing Spacers from RS-232 Connector
4. Install the bracket provided in the kit on the RS-232 connector aligning the
mounting holes as shown in Figure F-3
