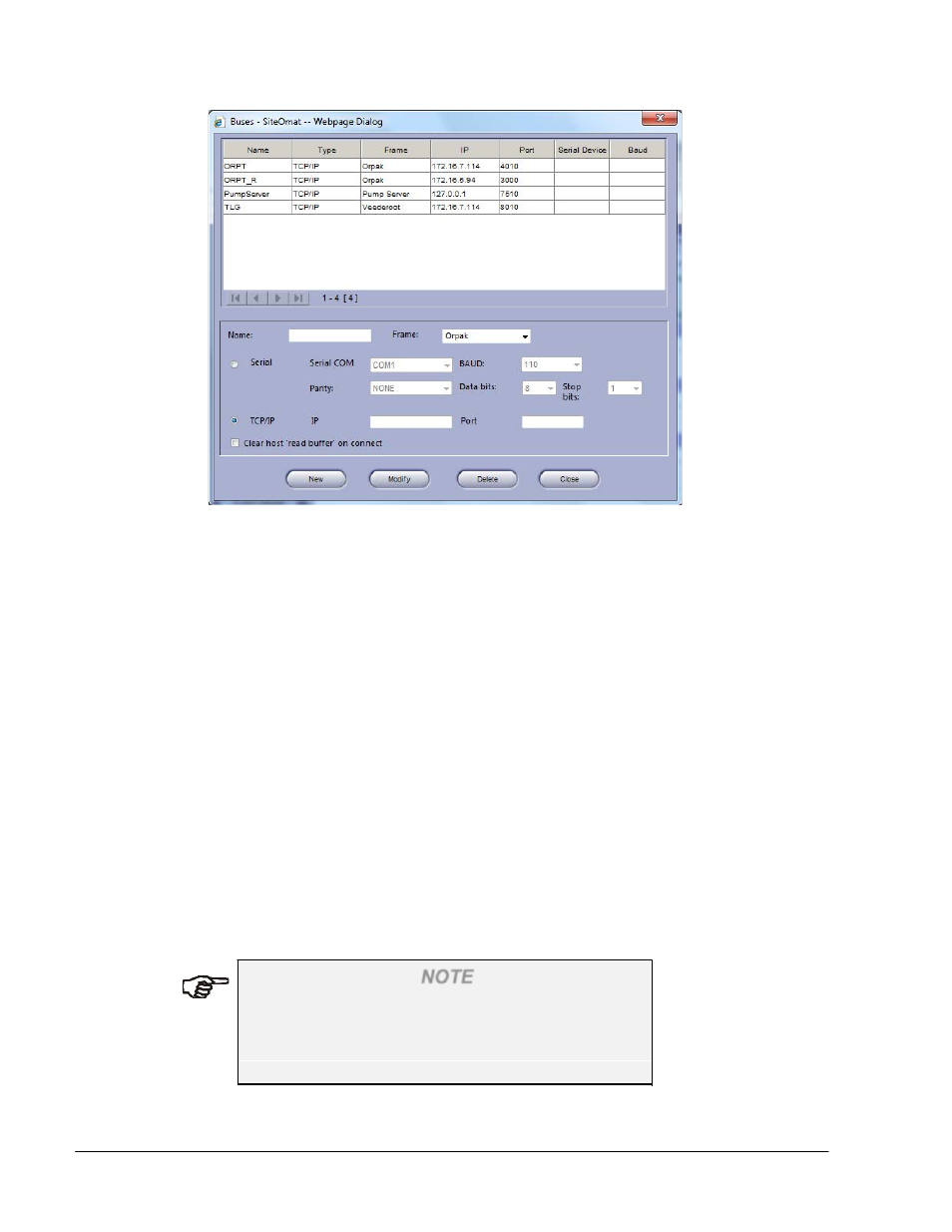

Figure 7-2. Buses Dialog Box
7-3.2. Settings
Buses are defined in the Name dialog box, and bus protocol in the Frame box. To link a bus to a
protocol, insert the Name of the bus in the dialog box, and select the Frame.
Frame
represents the communication protocol of the bus. Consequently, only devices that use the
same protocol (frame) can be defined to link to this bus.
Select the frame in accordance with the devices connected to this bus, as listed in Table 7-2:
Table 7-2 Protocol Settings
Frame Devices
Orpak
Printer, OrPT, uVIT, WGT, Journal Printer, OrTR, UPI, My tag reader
Pump Server
Pump server
Hectronic
Hectronic TLG
Veeder-Root
Veeder-Root TLS 350 or 450
NOTE
Devices cannot be connected to a bus with a frame
incompatible to the device frame. For example, a
Pump server device cannot be connected to an
Orpak frame.
