143 SiteOmat Setup and Maintenance Manual – MDE 4817G
2. Click Close to return to the TLG dialog box
7-7.3. Sensors
Once the TLG is defined, users are required to define the TLG leak sensors. Click on the Sensors
button and the Sensors dialog box appears (see Figure 7-14)
Enter a Number, Description and Type for each sensor. Types can be: Liquid for liquid level
detection sensors or Input for any 0/1 switch sensor.
Click New in order to save the new sensor.
To modify an existing sensor, select the sensor, update the relevant field and click on the Modify
button.
To delete a sensor, select the sensor from the list and click Delete.
Click Save to save the changes and return to the TLG dialog box.

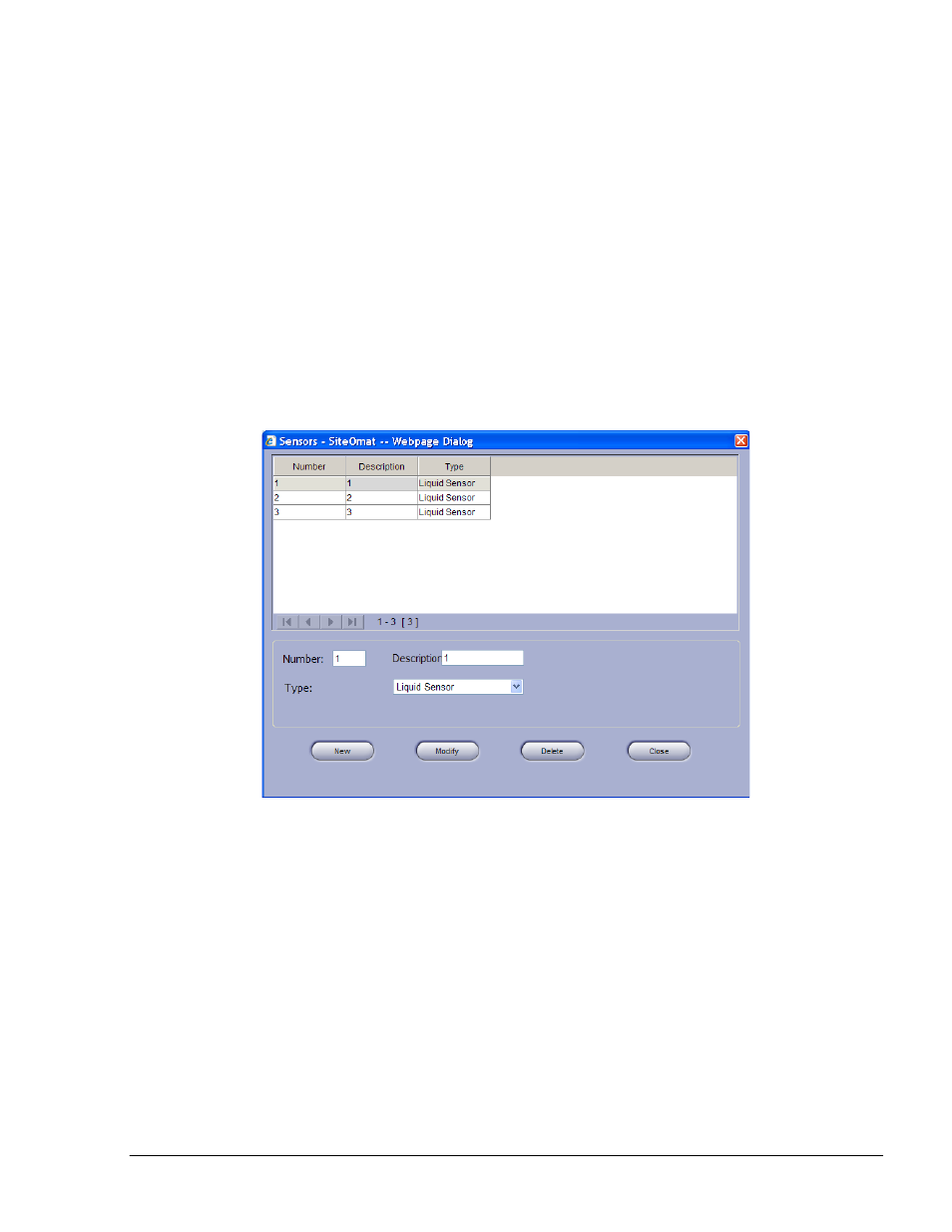

Figure 7-14. Sensors Dialog Box
7-7.4. Finalizing Settings
Once all the parameters have been defined, proceed as follows:
1. Click New or Modify to save the TLG settings
2. Click Close to return to the Setup screen
Users can otherwise delete a TLG from the list. First, select it by clicking on its row. Once its
parameters are displayed, click Delete. The TLG is deleted from the list.
However, a TLG cannot be deleted if its probes are linked to a tank.
