SiteOmat Setup and Maintenance Manual – MDE 4817G
Figure F-3. Placing the Bracket
5. Secure the bracket to the OrCU front panel using the spacers provided in the kit
and the previously removed spring washers (see Figure F-4)

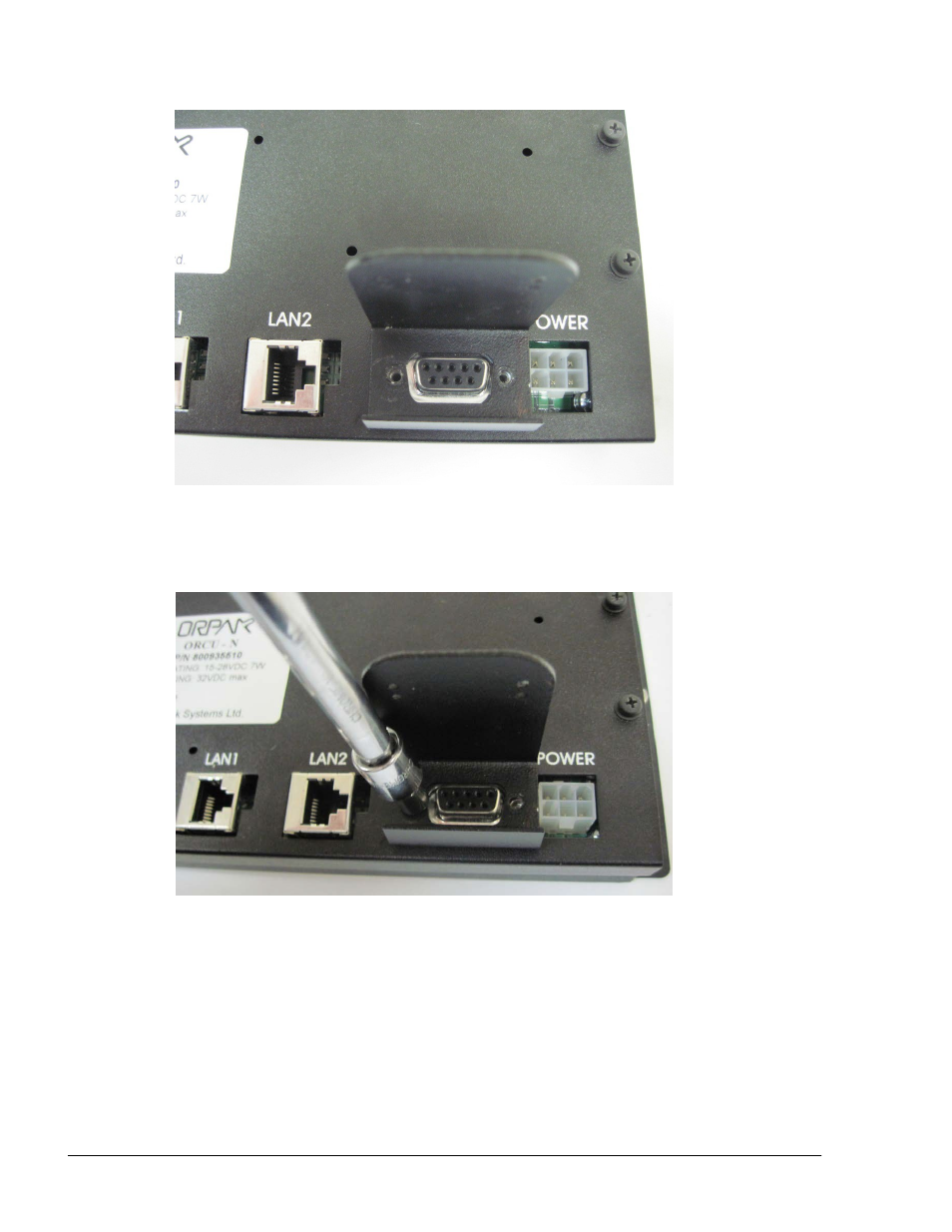

Figure F-4. Securing the Bracket
6. Install the Security Plug on the bracket and secure both thumbscrews (see
Figure F-5)
