151 SiteOmat Setup and Maintenance Manual – MDE 4817G
Set these parameters and their corresponding dead band.
7-8.6. Probes Definition
Since all these alarm settings require probes for the provision of data, click on the Probes button at
the bottom row to open the Tank Probes Dialog Box and connect probes (Previously defined in the
TLG section 7-7) to the tank (see Figure 7-20).
Connect probes to the tank from the Not Connected list: click on a probe in the Not Connected list
and press the  button. The opposite procedure can be done to disconnect a probe.
Select one or more probes to connect them to the tank. Manifold tanks are defined by connecting all
the probes to the same tank. The system sums up the volume for all connected probes to obtain the
tank volume.
Click Modify to Save the changes and return to the Setup Tanks dialog box, or click Cancel to
return to Setup Tanks without saving the changes.

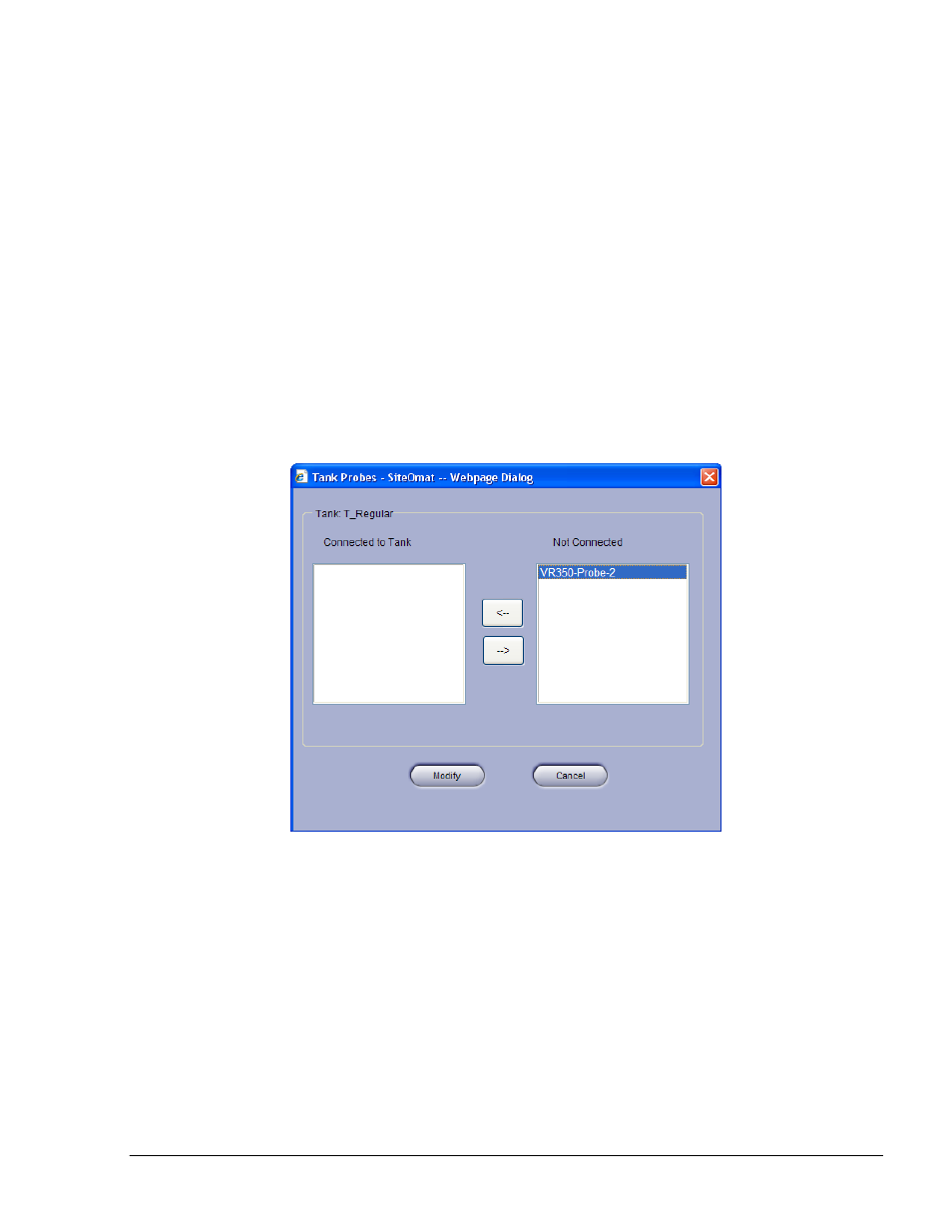

Figure 7-20. Tanks Probes Dialog Box
7-8.7. Finalizing Settings
Once all the parameters have been defined, proceed as follows to save the definitions:
1. Click New or Modify in the Setup Tanks dialog box to save all the settings
2. Click Close to return to the Setup screen
Users can otherwise delete a tank from the list. First, select it by clicking on its row. Once its
parameters are displayed, click Delete.
If the tank is dispensing fuel from a nozzle, it also cannot be deleted.
