169 SiteOmat Setup and Maintenance Manual – MDE 4817G

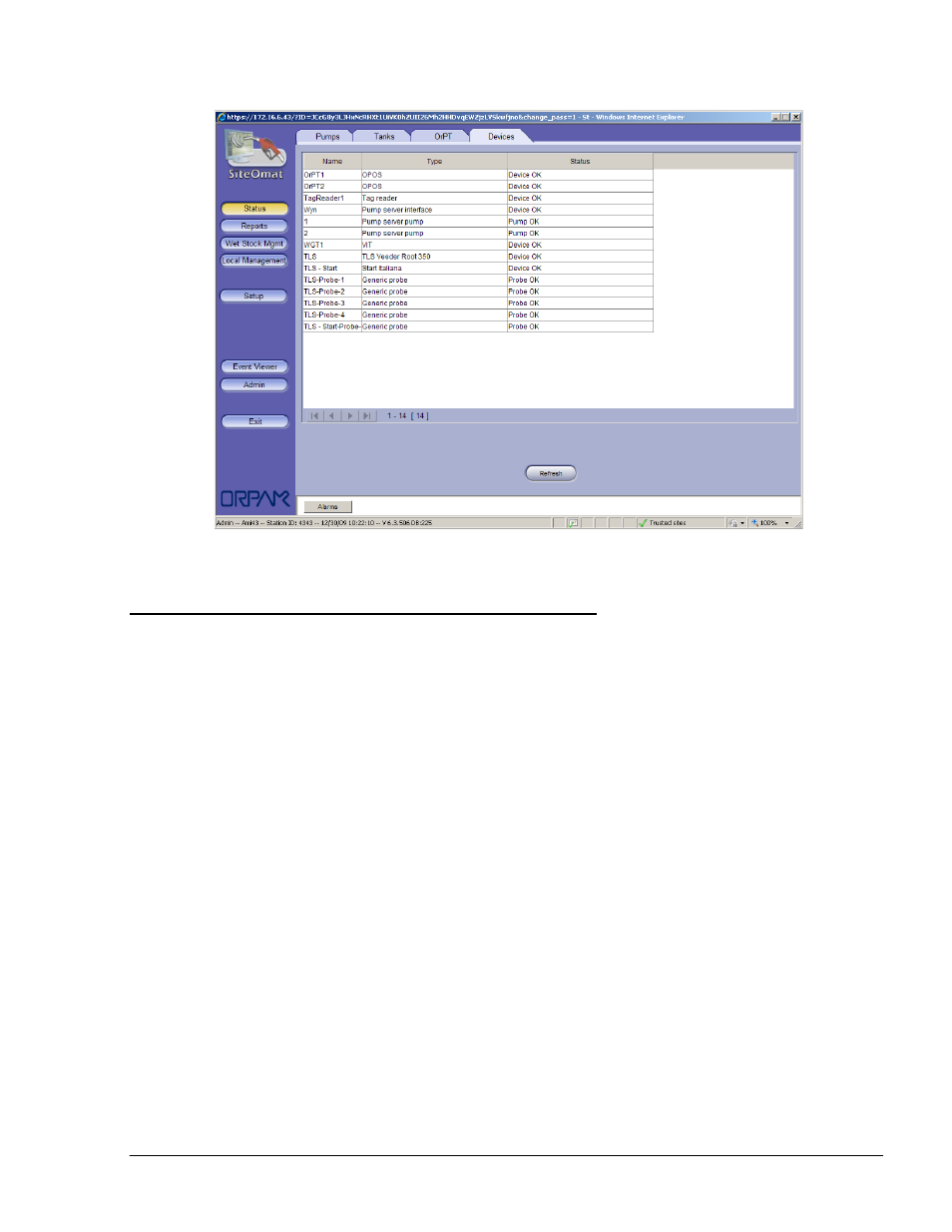

Figure 7-33. Devices Tab in Status Page
7-15. PIPE FLOW MEASUREMENT
In addition to the aforementioned features, the system enables the user to measure fuel flow through
pipes, by defining the pipe as a virtual pump.
Firstly, install a flowmeter pulser on the pipe and connect the pulser without IN_USE and
CONTROL wires to the MPI-C card on the 8-port CommVerter.
Then, proceed to define the pipe, as follows:
1. Define a new Pump Server (refer to paragraph 7-10)
2. In the Pump Server Settings dialog box select Mechanical Pump – Card from the Type
drop-down list and enter a high value to the Authorization Timeout field. In the example
below (see Figure 7-34), the system closes virtual zero transactions every 99999 seconds)
