Gasboy SiteOmat Maintenance Manual User Manual
Page 288
284
SiteOmat Setup and Maintenance Manual – MDE 4817G

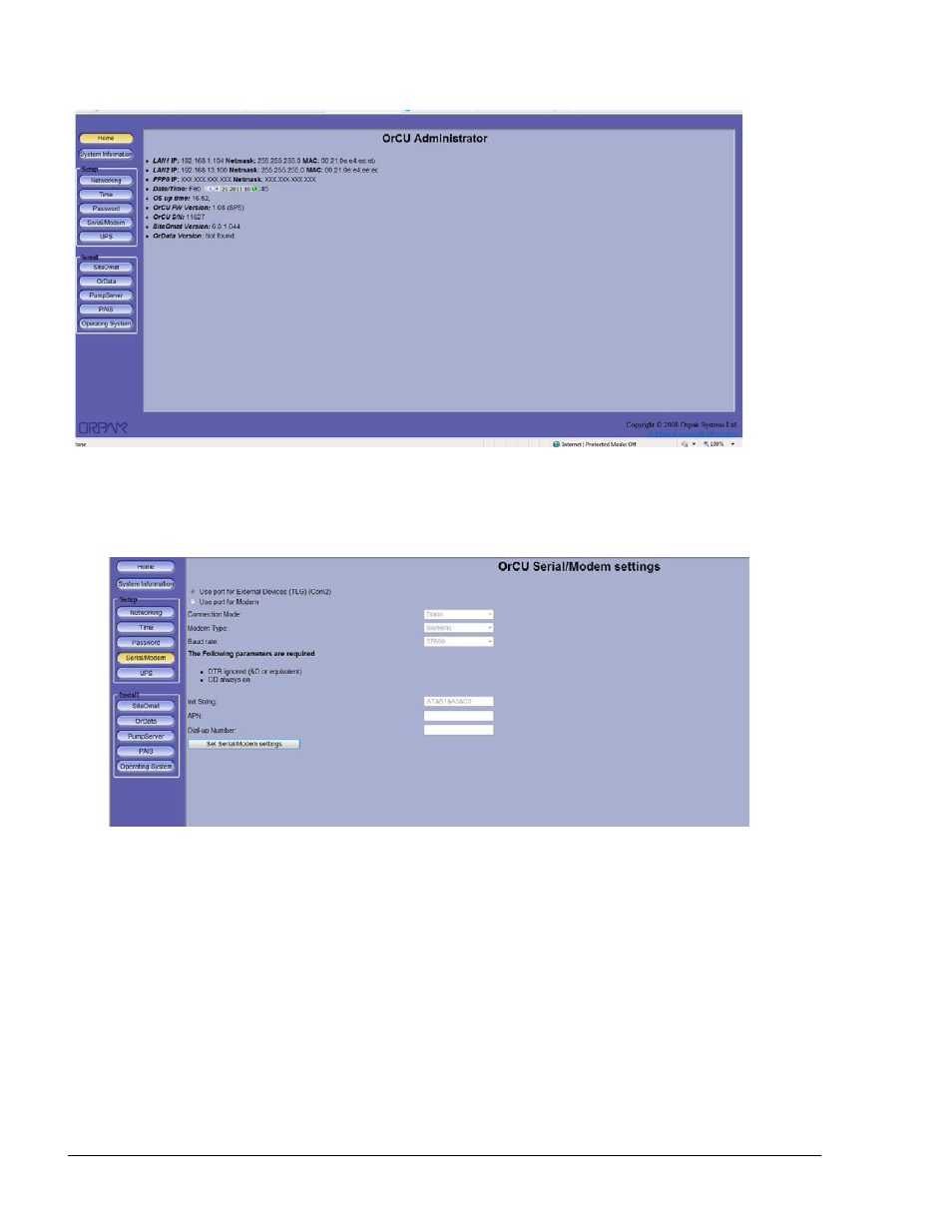

Figure F-7. OrCU Administrator –Home Screen
4. Click on the Serial/Modem navigation button. The OrCU Serial/Modem Settings
screen appears (see Figure F-8)
Figure F-8. Serial/Modem Settings Screen
5. Select the Use port for External Devices radio button
6. Click Set Serial/Modem settings
7. Reboot the OrCU:
a. Click on the System Information navigation button. The following screen
appears (see Figure F-9)
