116
SiteOmat Setup and Maintenance Manual – MDE 4817G
6-3.2.1. Product Translation
This feature enables users to associate the products defined in SiteOmat to the external payment
processor.
Proceed as follows:
1. Click on the Product Map button to open the Product Translation dialog box (see
Figure 6-4)
2. Select a product by clicking on its row in the Fuel Type text box
3. Enter the processor's code for the product in the External Code text box
4. Click Save to save the changes, or Close to close the dialog box without saving the
changes

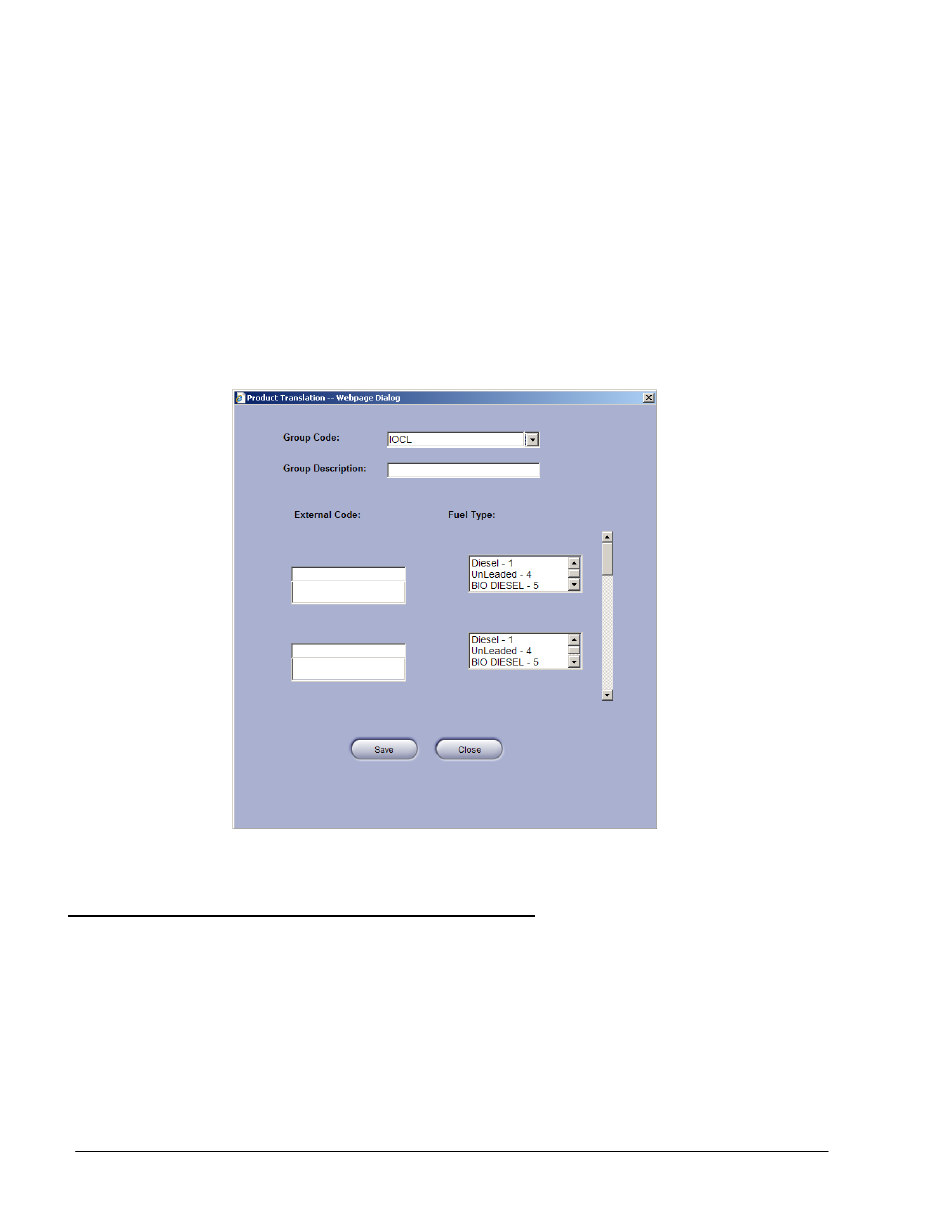

Figure 6-4. Product Translation Dialog Box
6-4. RECEIPT
Click on the Receipt button to select the receipt format. A dialog box appears (see Figure 6-5),
enabling the users to select a format from a list of fully customizable templates as well as create
new receipt formats to better meet their needs.
