Page 244
240
SiteOmat Setup and Maintenance Manual – MDE 4817G

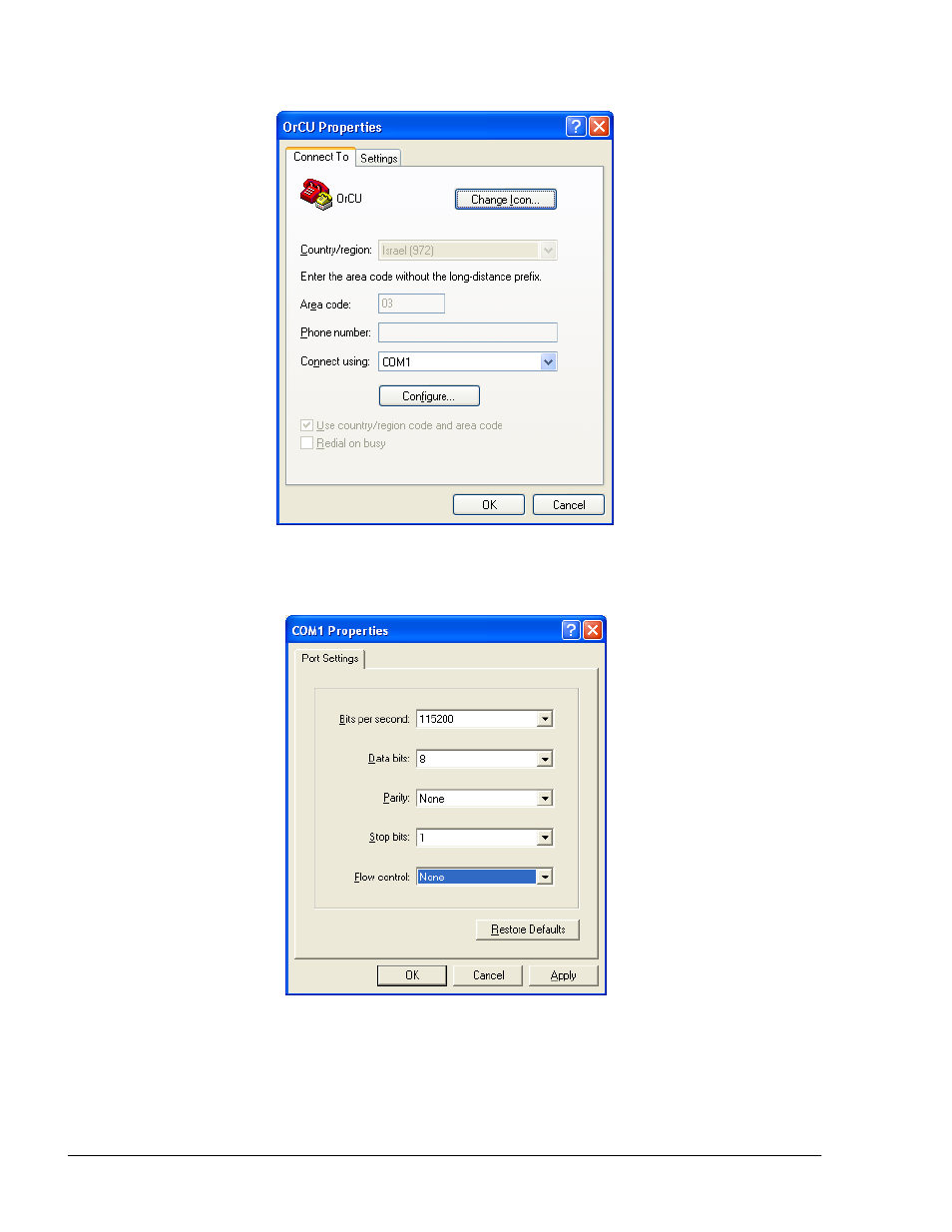

Figure 8-45. OrCU Properties Dialog Box
5. Set the connection Properties to: 115200, 8, None, 1, None (see Figure 8-46) and click OK
Figure 8-46. COM1 Properties Dialog Box
6. The OrCU Terminal screen appears (see Figure 8-47) Restart the OrCU (power Off/On)
