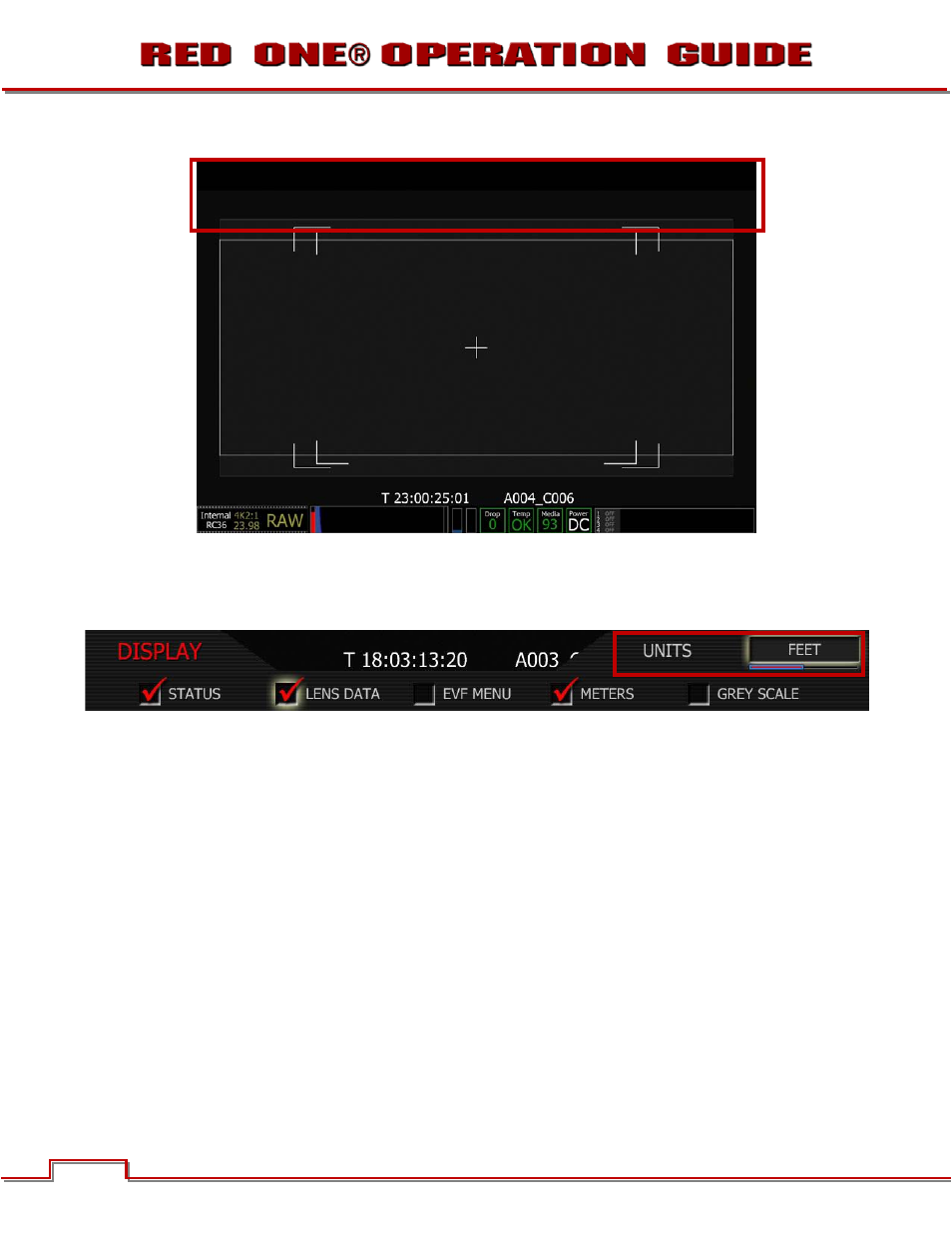

When unchecked, the upper edge of all external motors will be blank.
LENS DATA
When checked focus / zoom / iris data on all external monitors mid-upper edge will be displayed. Also
allows the user to choose if Distance is reported in Feet or Meters. Unchecked by default.
1. To change lens data preferences, push in or down on joystick to place checkmark in the LENS DATA
checkbox.
2. UNITS box will highlight.
3. Twist joystick to change the highlighted UNITS box to the desired setting.
4. Move joystick right, up or push in to set.
