17
An SD Memory Card slot (D) is located below User Key 2, which supports most SD Cards of up to 1GB
capacity. It is not possible to store video or audio data to the card SD card, however it may be used for
camera firmware upgrades and to store
REAR OF CAMERA
A
Clip Start / Previous Clip
C
Clip Play / Pause
E
Clip End / Next Clip
B
Play Reverse
D
Fast Forward

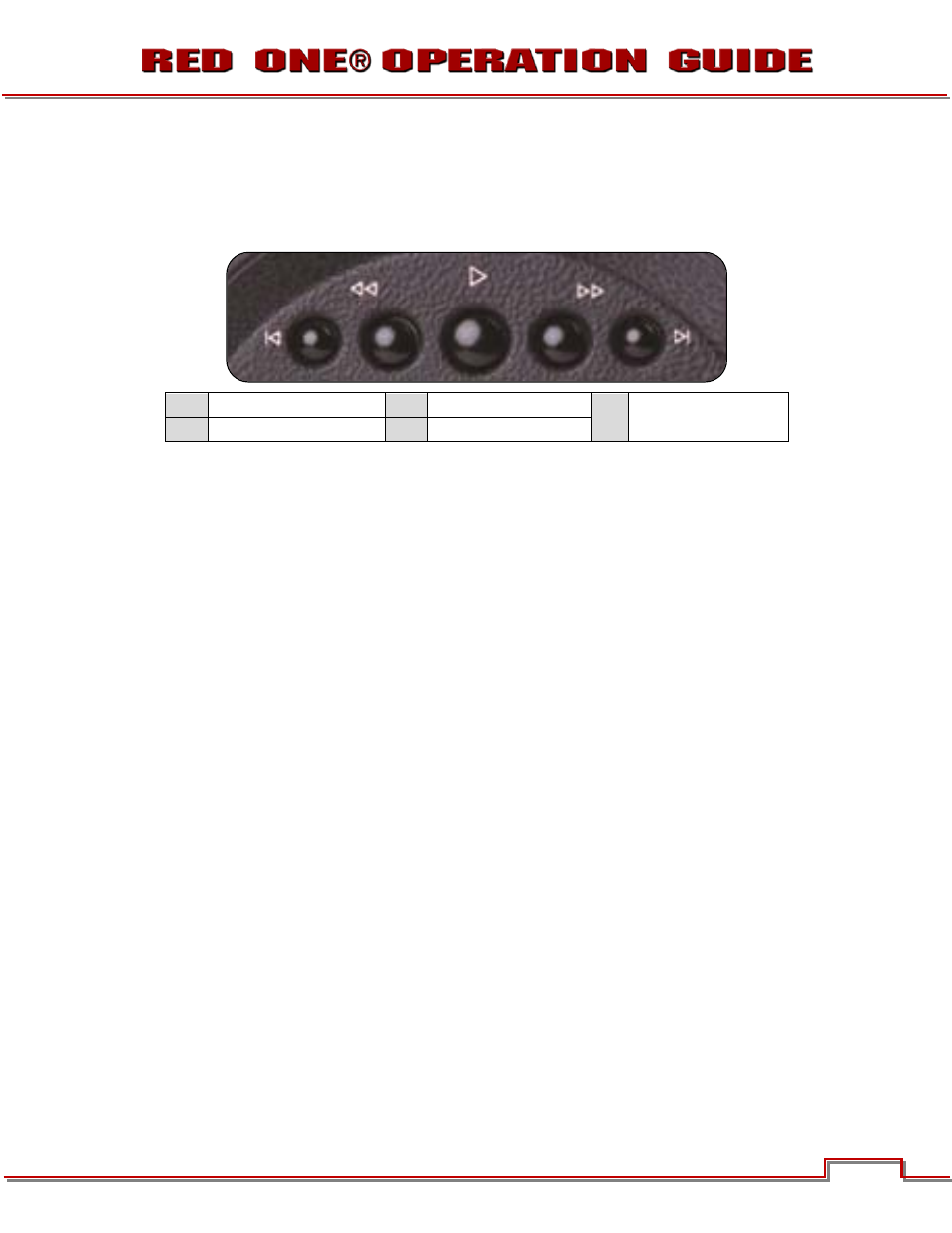

Figure 2 – Rear Upper Playback Camera Controls
A. Cues the Clip to its Start Frame. If already at the Start Frame, pushing this key again will cue to the
Start Frame of the previous clip recorded on the digital media, if one exists.
B. FRW – Plays the clip back in reverse. Each push of this key cycles clip playback between – 1 x, - 2 x
and - 8 x speed playback.
mode and to initiate playback of the last recorded clip. Push
once to enter Playback mode, a second time to start playback. Once in clip playback, this key acts as
a Play/Pause toggle.
D. FFW - Plays the clip at higher speeds. Each push of this key cycles clip playback between 1 x, 2 x, 8 x
and 32 x speed playback.
E. Cues the Clip to its End Frame. If already at the End Frame, pushing this key again will cue to the Start
Frame of the next clip recorded on the digital media, if one exists.
Rotating the joystick allows cycling through available clips while in playback mode. Refer to
NOTE: It is not necessary to exit Playback mode prior to the next recording. To exit playback mode,
either push the RECORD key, or push the EXIT key to the left of the joystick.
When in playback, all cursors will be disabled, and the camera provides a clean feed of the recorded vid-
eo signal at 1280 x 720 resolution on the Preview
and
outputs.
Depending on the capture frame rate, pull down will be added to create a standard 1280 x 720 progres-
sive scan 59.94Hz or 50.00 Hz high definition video signal. SMPTE timecode is embedded on the Preview
HD-SDI output, and both Preview HD-SDI and HDMI outputs provide up to 4 independent channels of 24-
preference is set to 1080p, HD Preview HD-SDI and HDMI outputs will
switch to 1920 x 1080p progressive scan 10-bit 4:2:2 at 23.98, 24.00, 25.00 or 29.97 fps.
NOTE: If
preference is set to CLIP, the color adjust metadata will be read from
the recorded clip. If set to CAMERA, the metadata used are the current camera settings.
A
B
C
D
E
