SET: Push SET to save these parameters to non-volatile memory, exits menu and returns to normal oper-
ation.
USER TITLE
Enables the user to program a custom Safe Title area. Operation is the same as USER ACTION. Refer to
PREVIEW

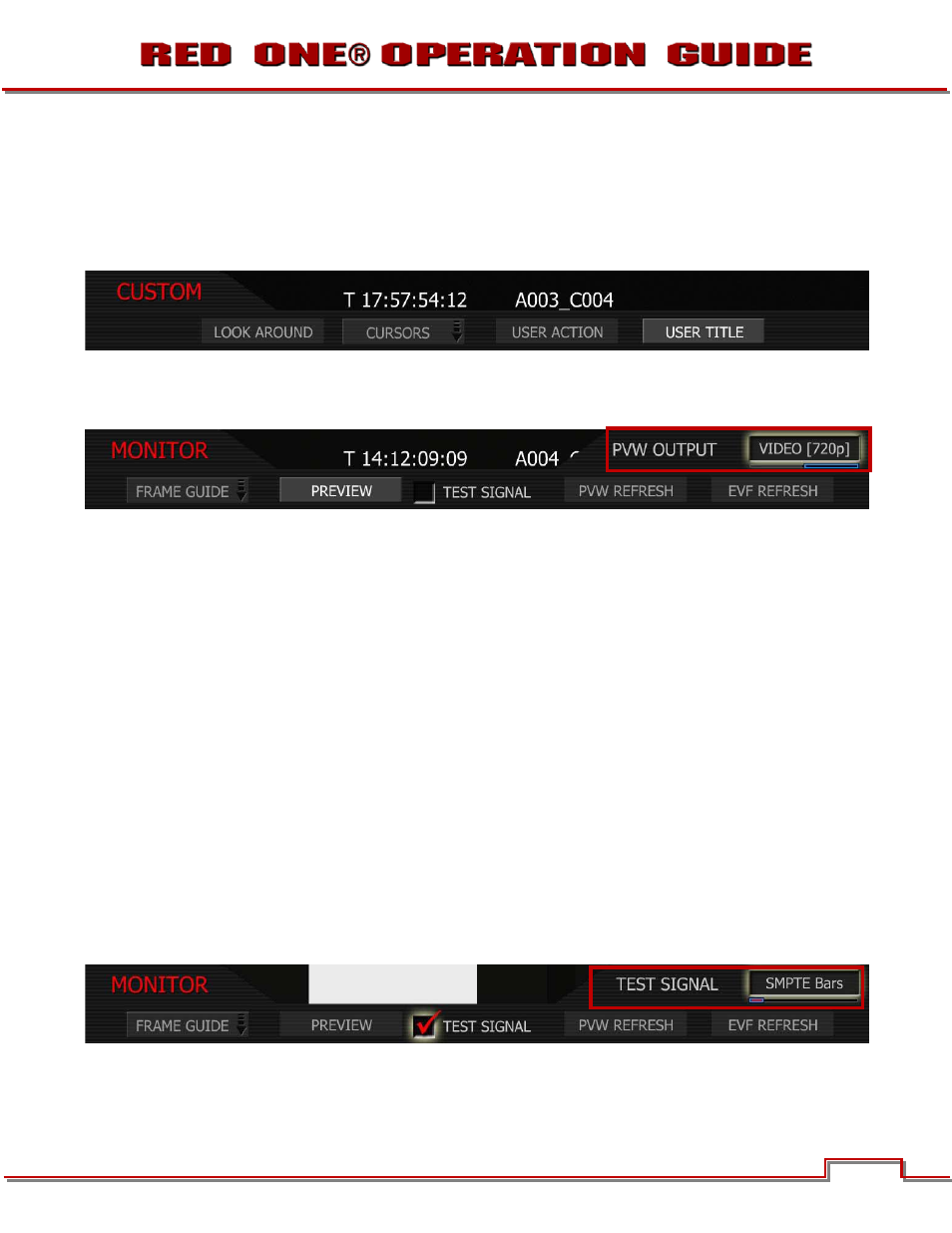

This sub-menu selects the operating mode of the HD Preview output.
If only one of either a RED EVF or RED LCD are present, the HD-SDI and HDMI outputs will support Sur-
round View, frame guides and safe action / title overlays, waveforms overlaid on a 1280 x 720 pixel video
signal. Both of these outputs include up to 4 channels of 24-bit 48KHz audio. The HDMI output is com-
patible with HDMI equipped 720p compatible HDTV monitors.
As a user choice, the HDMI (but not the three HD-SDI outputs) can support a 1280 x 848 pixel output with
Surround View, frame guides and safe action / title overlays, waveforms, and camera status and operation
menus. This signal is compatible with most DVI equipped SXGA computer monitors, but is not compatible
with HDMI equipped HDTV displays.
If both a RED EVF and RED LCD are present, the HD-SDI and HDMI outputs will be forced to 1280 x 720
(with Surround View) irrespective of the Preview Output parameter setting.
NOTE: The video format of the HD-SDI Preview output will also be affected by the HD-SDI refresh
rate and PLAYBACK resolution selections described elsewhere in this guide.
To select between 720p and 848p output options, select VIDEO (720p) or MENUS (DVI). The default is
VIDEO (720p) The Preview output setting will be held in camera memory.
NOTE: A shortcut to toggle between MENUS (DVI) and VIDEO (720) without entering the menu is to
press and hold the UNDO button, then press the Clip Start / Previous Clip button.
TEST SIGNAL
Permits the video monitor outputs to be replaced with a video test pattern.
