1. Select OUTPUT LEVEL and push in or down on Joystick.
2. VOLUME box will highlight to allow you to choose a volume level between -6.0dB and 6.0dB (default

is 0dB).

3. Twist joystick to change the highlighted VOLUME box to the desired setting.
4. Move joystick left, right or up to select and exit.
NOTE

The RED-ONE camera does not provide a reference level Tone Generator. However an ap-

proximately 1 minute digital recording of a reference level Tone Generator provided by an external
signal source may be used as a substitute for an internal Tone Generator.
NOTE

Before digital audio recordings can be made, audio inputs need to be enabled.

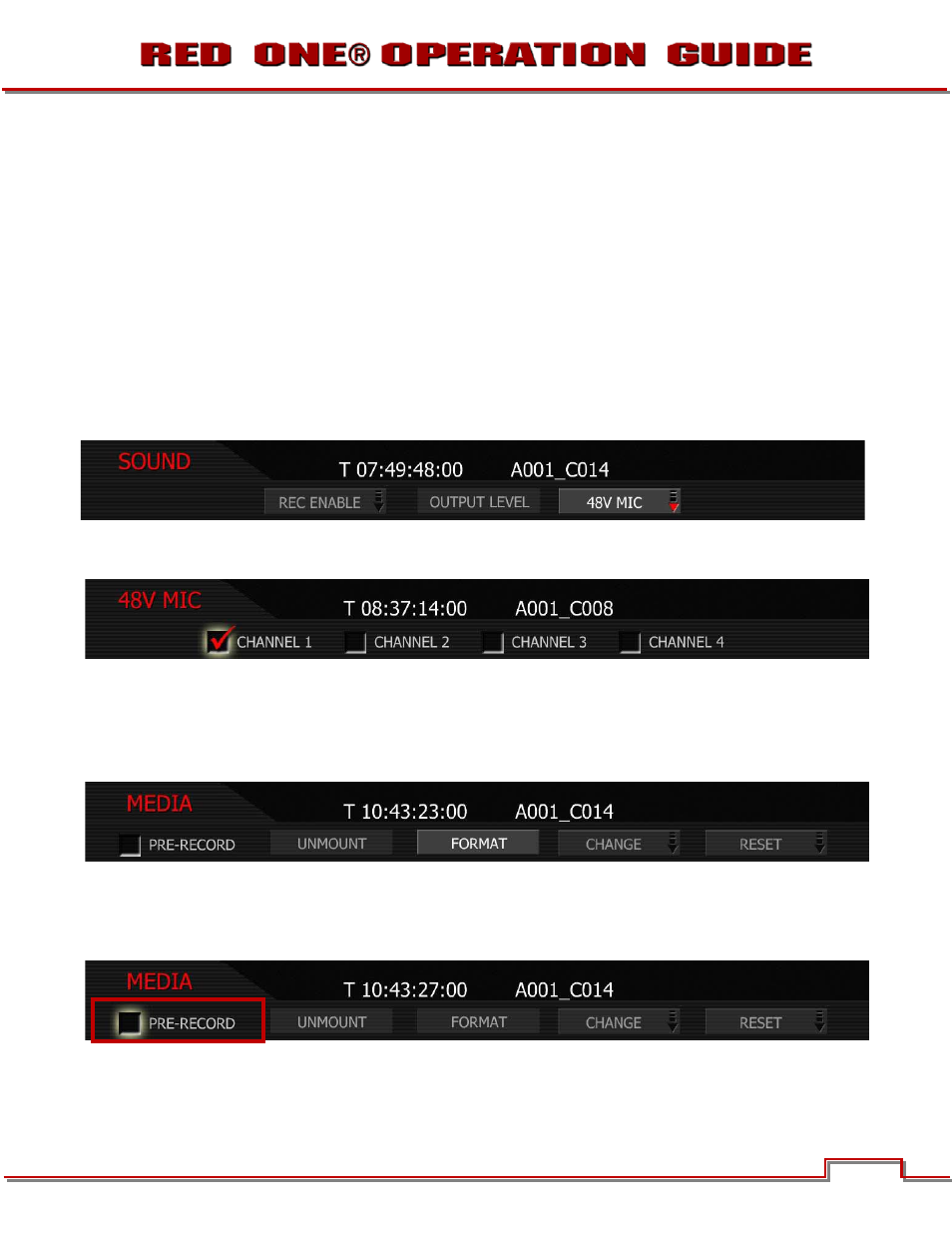

48V MIC

Push

48V MIC

to access the channels that you wish to provide 48V Phantom Power on.

NOTE: With firmware prior to Build 18, and all cameras with Rev A audio hardware, the +48V Phan-
tom Power output will be disabled each time the camera is power cycled.

MEDIA

This menu provides various media management functions including digital media formatting. Options

available are PRE-RECORD, UNMOUNT, FORMAT, CHANGE and RESET. For detailed instructions on

formatting, copying and deleting files from media, go to

APPENDIX B: MANAGING DIGITAL MEDIA

PRE-RECORD

Pre-Record enables a loop recording of definable duration (10 or 30 seconds) that permits continuous

video and audio capture for that defined duration “before the actual RECORD event”.

When enabled, a GPI trigger (ensure that either

GPIO

are set to PRE-RECORD) will place the camera into

pre-record mode. In this mode, the camera records 1-second chunks of video and audio to the digital
