83
4. Move joystick left or right to select and exit.

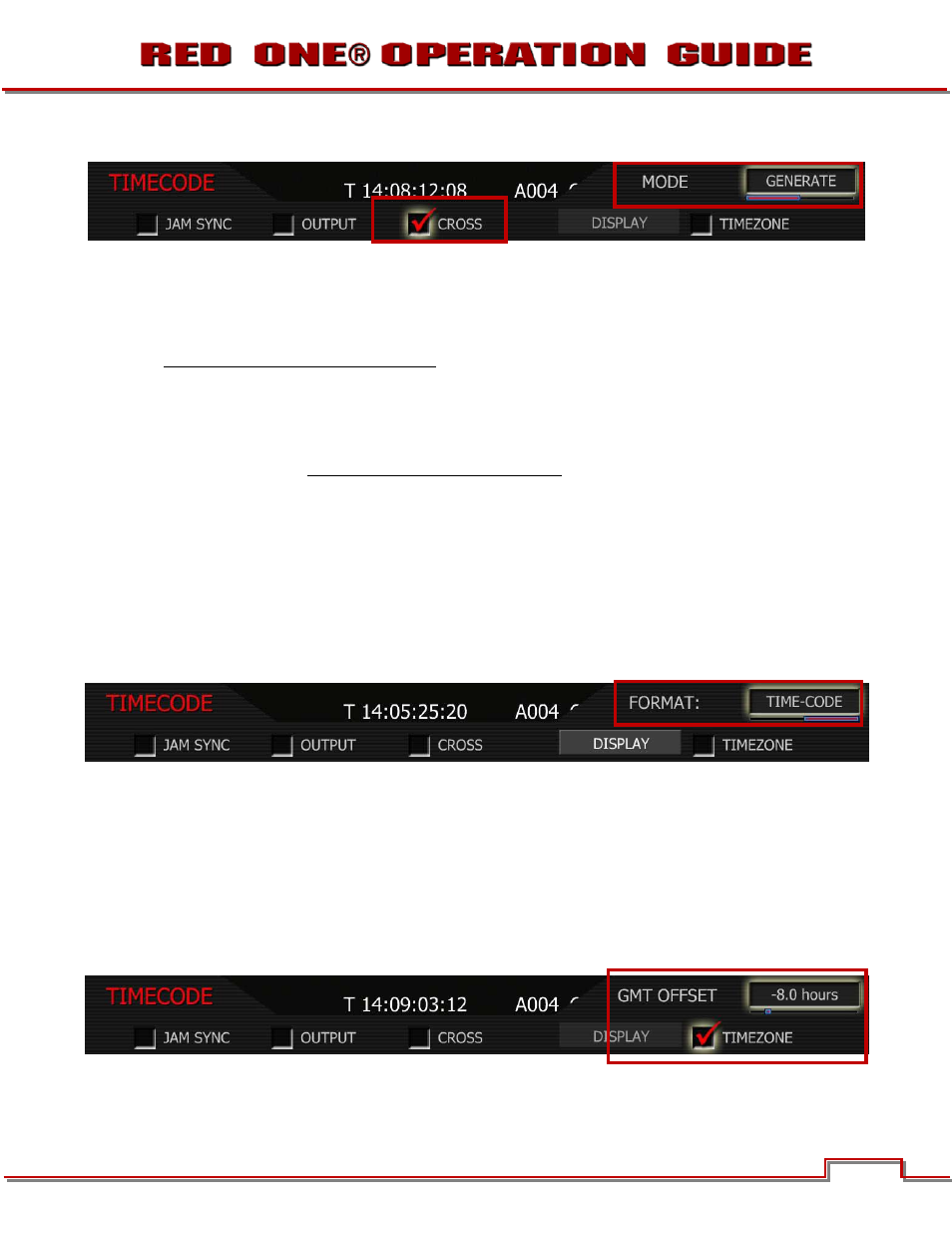

GENERATE
Cross Gen activates 29.97 from 23.98 fps time code sync. The RED-ONE camera will generate a 23.98
Timecode signal for use with the camera’s 23.98 fps recording, and also generates a synchronized 29.97
fps Timecode signal for use by an external device, available as an output from the 5-pin timecode I/O
connector.
Normally used with JAM SYNC off.
JAM
Cross Jam activates 23.98 from 29.97 fps time code sync. The RED-ONE camera will accept a 29.97 fps
time base external Timecode signal and generate a synchronized 23.98 Timecode signal for use with the
camera’s 23.98 fps recording.
Normally used with OUTPUT off.
DISPLAY
Display lets the operator select whether Edge Code or Timecode is displayed in the status displays. This
selection also determines which of the two recorded timecode tracks will be used in the QuickTime refer-
ence movies, and the primary timecode track in HD-SDI outputs.
1. To set display, select DISPLAY and press in or down on joystick.
2. Twist joystick to change the highlighted FORMAT box to either EDGE-CODE or TIME-CODE.
3. Move Joystick right or up to select and exit.
EDGE-CODE
If Edge Code is selected, “E” precedes the value shown in the status display.
TIME-CODE
If Timecode is selected, "T," precedes the value shown in the status display. Default setting is Timecode.
TIMEZONE
Applies a time offset to the SET CLOCK value established for the camera. Unchecked by default.
