WAVEFORM

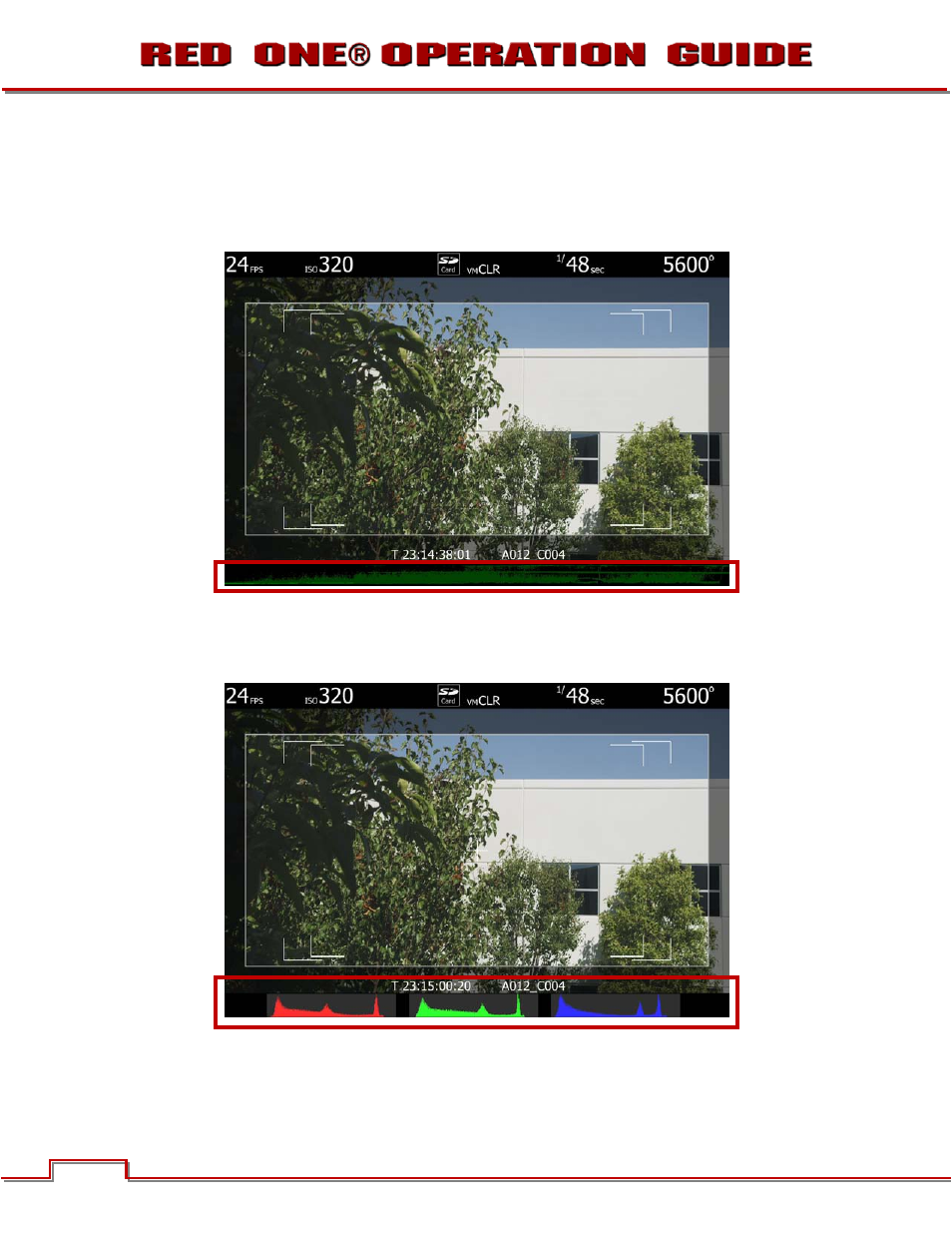

A color-coded waveform illustrates the exposure values using the full width of the lower section of the
camera display. As exposure reaches maximum, waveform color changes to Yellow and then Red. At
minimum exposure, the waveform color changes to Light Blue then Dark Blue. These colors match those
used in the False Color Meter.
RGB PARADE
A corresponding histogram illustrates the exposure distribution in the R, G and B channels using the full
width of the lower section of the camera display.
