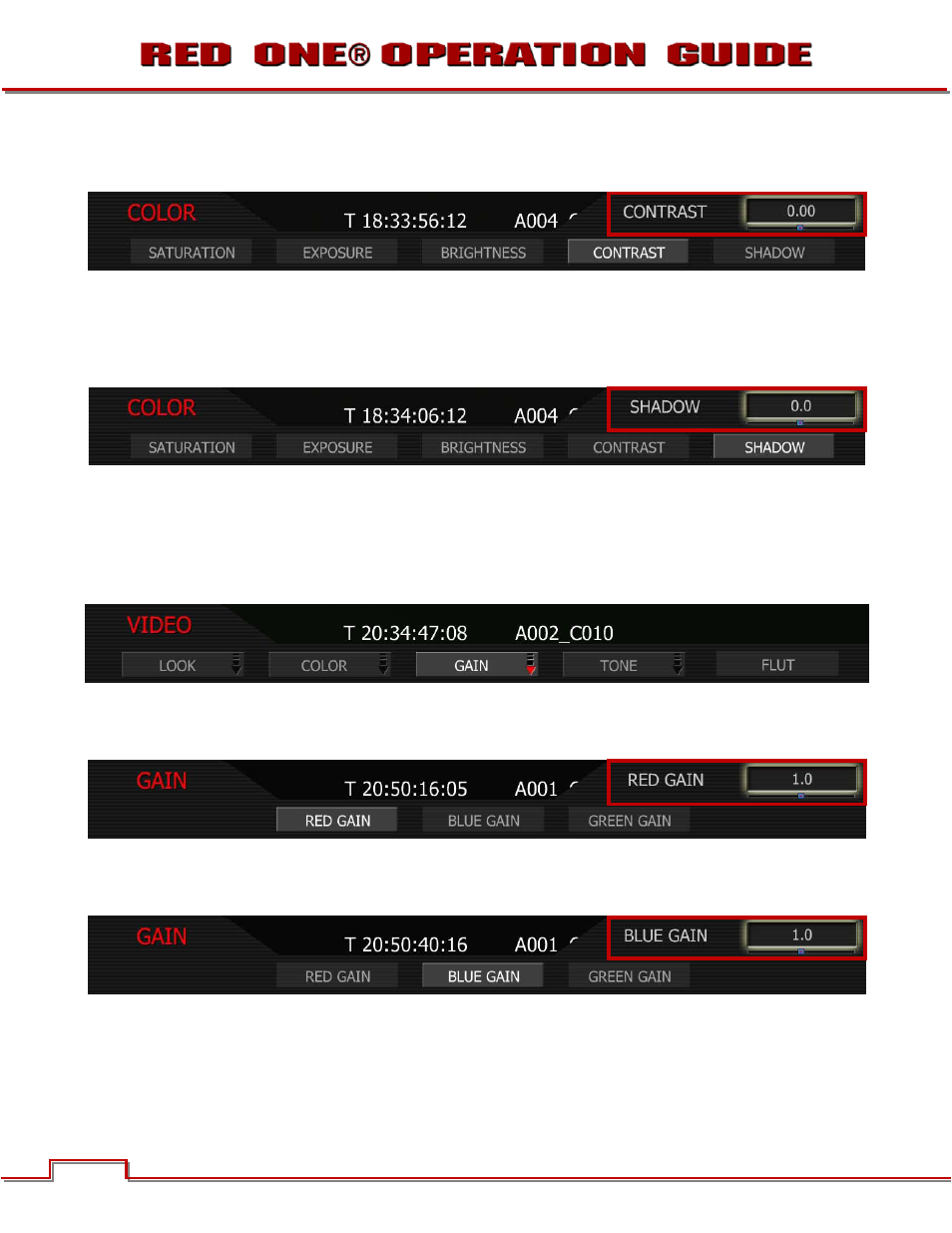

CONTRAST
Adjusts the overall contrast of the image. Range is -1.00 (flat) to +1.00 (max contrast). Default is 0.00.

SHADOW
Shadow adjusts the toe of the FLUT or in other words, the image near Black. Range is -1.0 to +1.0. De-

fault is 0.0. Increasing the shadow value raises the video level of near Blacks. Lowering the shadow de-

creases the video level of near Blacks.

GAIN

The Gain sub-menu selects various image processing parameters that may be applied to the monitor path

(RED GAIN, BLUE GAIN and GREEN GAIN). They do not affect the actual REDCODE RAW data being
recorded.

To adjust: Select the desired setting and twist joystick to change the highlighted box to the de-

sired setting.

RED GAIN
Adjusts the gain of the RED channel only. Range is 0.0 (no Red) to 2.0. Default is 1.0.

BLUE GAIN
Adjusts the gain of the BLUE channel only. Range is 0.0 (no Blue) to 2.0. Default is 1.0.
