Build 31 v31.6.16

NOVEMBER 28, 2011

© 2007-2011 RED.COM INC.

23

CAMERA DISPLAYS

The LCD status display mounted at the rear of the RED ONE camera provides a snapshot of the camera

setup.
RED LCD and RED EVF monitors are factory preset digital displays. There are no saturation, peaking or

contrast adjustments as found on analog monitors to correct color reproduction.
Monitor outputs on the RED ONE camera are set up for REDcolor gamma and color space.
Image intensity can be adjusted to compensate for ambient lighting conditions. For the RED LCD, use the

Up / Down keys on top of the display. For the RED EVF use the rotary encoder.
To assist with exposure, all monitor outputs can display a dual Zebra pattern and a False Color exposure

meter overlaid on the video. In addition the RED EVF and RED LCD outputs can display a RGB histogram,

and RAW sensor data exposure meter with individual R, G, B channel clip "stop lights".

CAMERA LCD STATUS DISPLAY

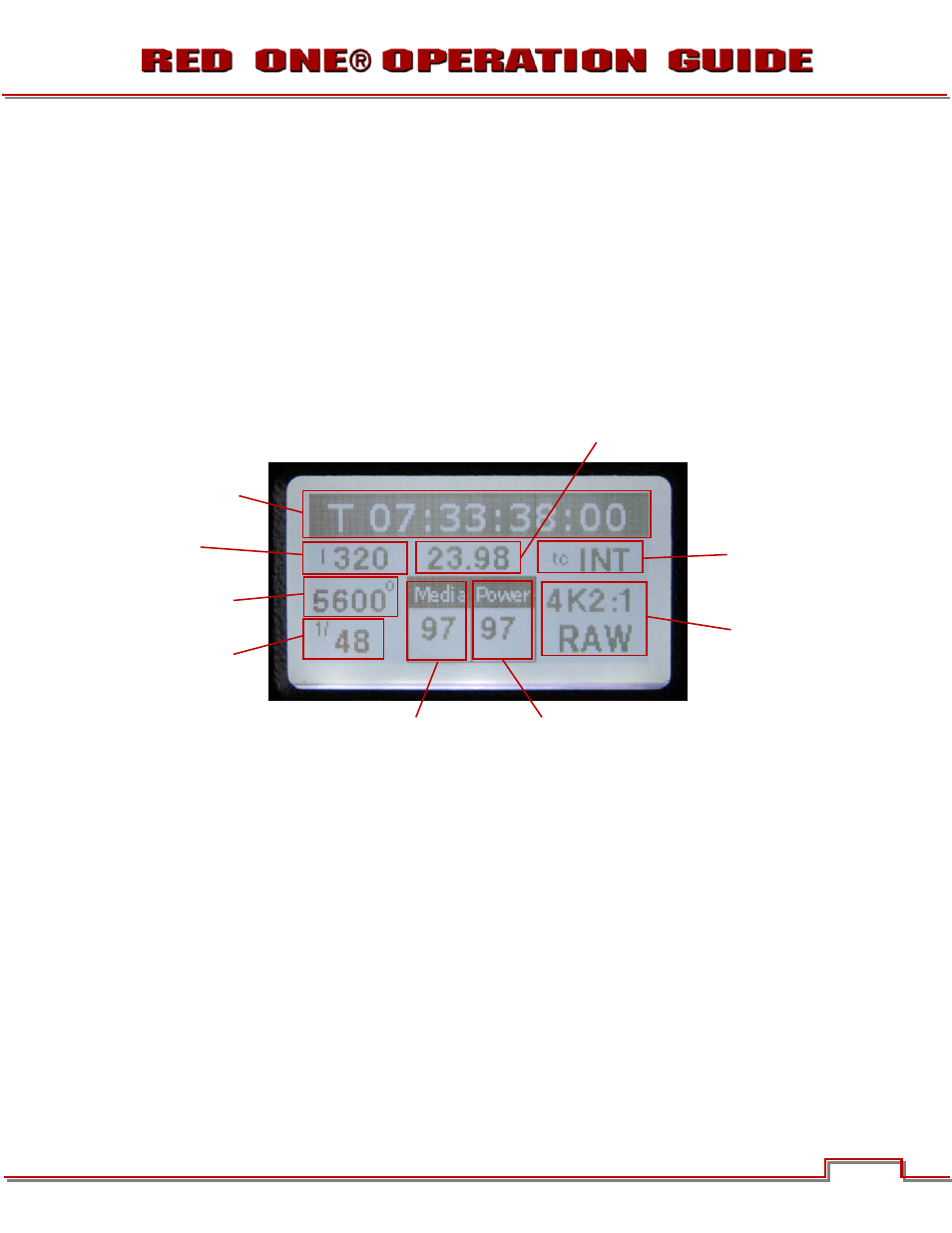

Figure 7 – Camera LCD Display

The LCD status display elements include:
Timecode / Status: Displays current timecode

value, clip name or system messages

ISO Rating: Displays current exposure rating
Project Frame Rate: Displays the project frame

rate, 23.98 fps in this example

Timecode: Displays timecode lock status
White Balance: Displays current color temp

Media: Displays remaining media capacity in %
Power: Displays remaining battery capacity in

% (as shown) or connection to DC power

Shutter Speed: Displays current exposure time
Format: Displays video recording format, 4K

RAW in this example

NOTE: The timecode value reported is Edge Code or Timecode, as selected by the user in the

TIMECODE

menu. During recording, the Clip Name is reported in this display field.

TIMECODE / STATUS

ISO RATING

WHITE BALANCE

SHUTTER SPEED

TIMECODE

FORMAT

PROJECT FRAME RATE

MEDIA

POWER
