BASIC OPERATION

This section describes powering up/down and basic controls of the RED ONE camera and how to initiate

a project.

POWER UP / DOWN

Power is supplied to the camera via a RED-BRICK battery (connected through a RED BATTERY PLATE,

RED QUICKPLATE or RED CRADLE) or RED CHARGER connected to the POWER connector located at

the rear of the camera.

To power the camera up (turn on); push the

once.

To power the camera down (turn off); push the

once.

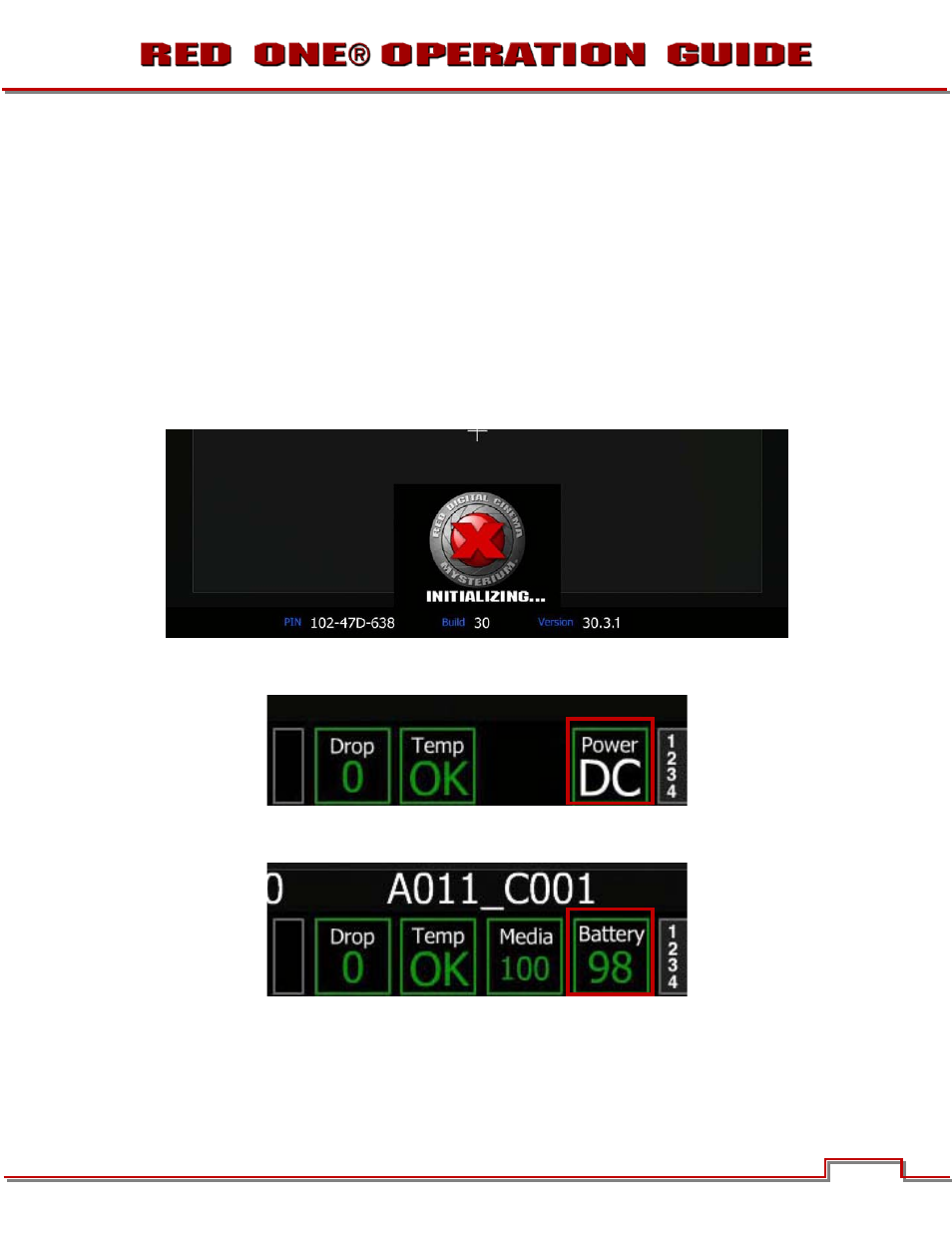

During power up, PIN, Build and Version will display on the camera LCD display and all external monitors.

When powering the camera through direct DC power such as RED CHARGER, status is displayed on the

camera’s LCD Display and any external monitoring outputs as “Power DC”.

When powering camera through RED-BRICK batteries, battery status is displayed on the camera’s LCD

Display as well as any external monitoring outputs as “Battery (with battery power percent remaining)”.
