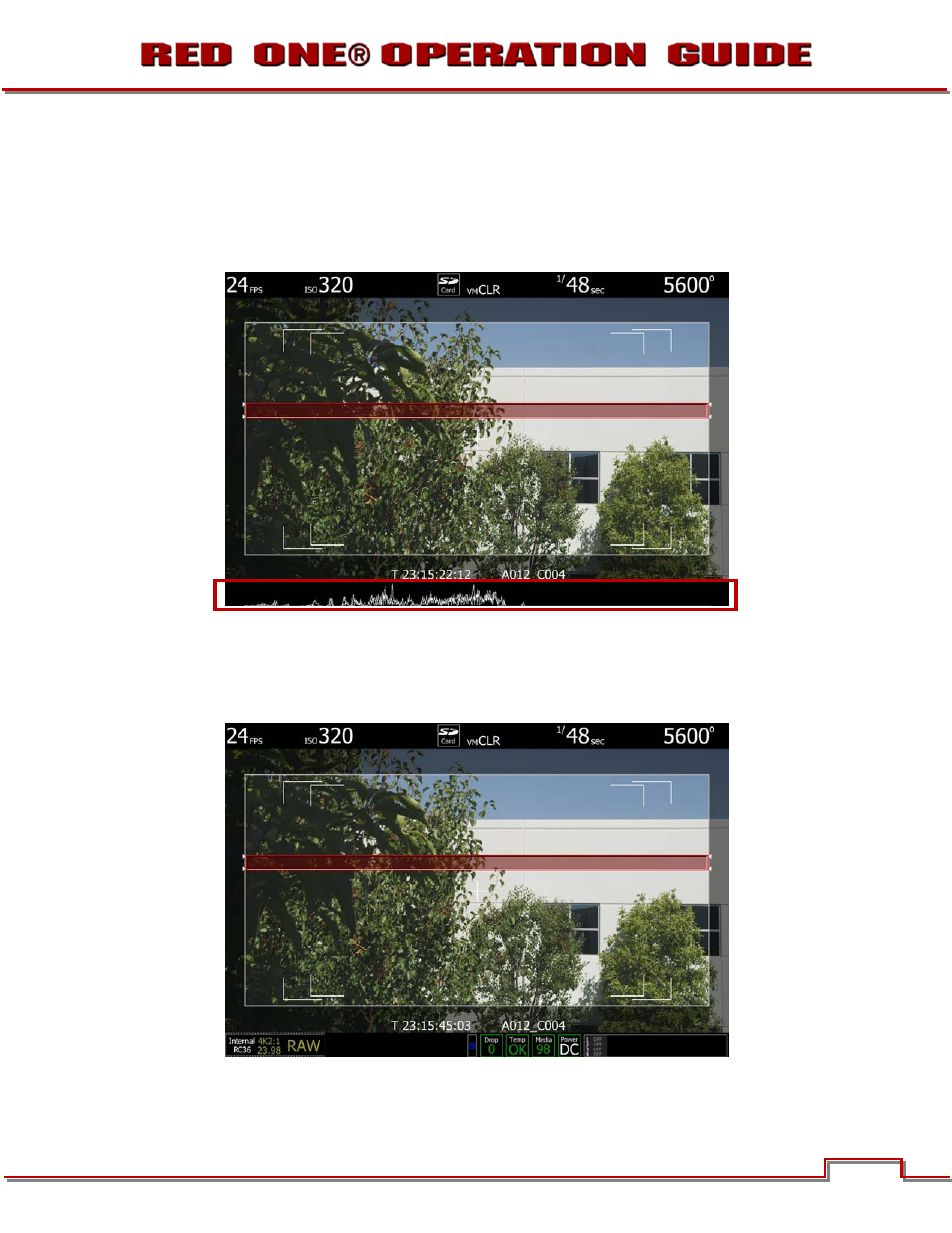

FOCUS ASSIST
A full screen width red rectangular box will appear centered on the center cursor of the image. The vertical

position of this sample box can be adjusted by rotating the joystick, and its height can be adjusted by

moving the joystick left or right. Push the joystick to fix the sample box. The average focus value of the

pixels in the sample box are shown in a full width graph restricted to the lower section of the camera dis-

play.

FOCUS OVERLAY
A full screen width red rectangular box will appear centered on the center cursor of the image. The vertical

position of this sample box can be adjusted by rotating the joystick, and its height can be adjusted by

moving the joystick left or right. Push the joystick to fix the sample box.
