MODE

Enables one of three following shutter modes: Normal, Syncro, or Relative. Default selection is Normal.

For additional information, see SPEED section.

Normal: Shutter Speed is defined exclusively by the Shutter Speed setting.
Syncro: Shutter Speed is defined by Shutter Speed, but modified by Syncro setting.
Relative: Shutter Speed is defined by Shutter Speed, but modified by the capture fps.

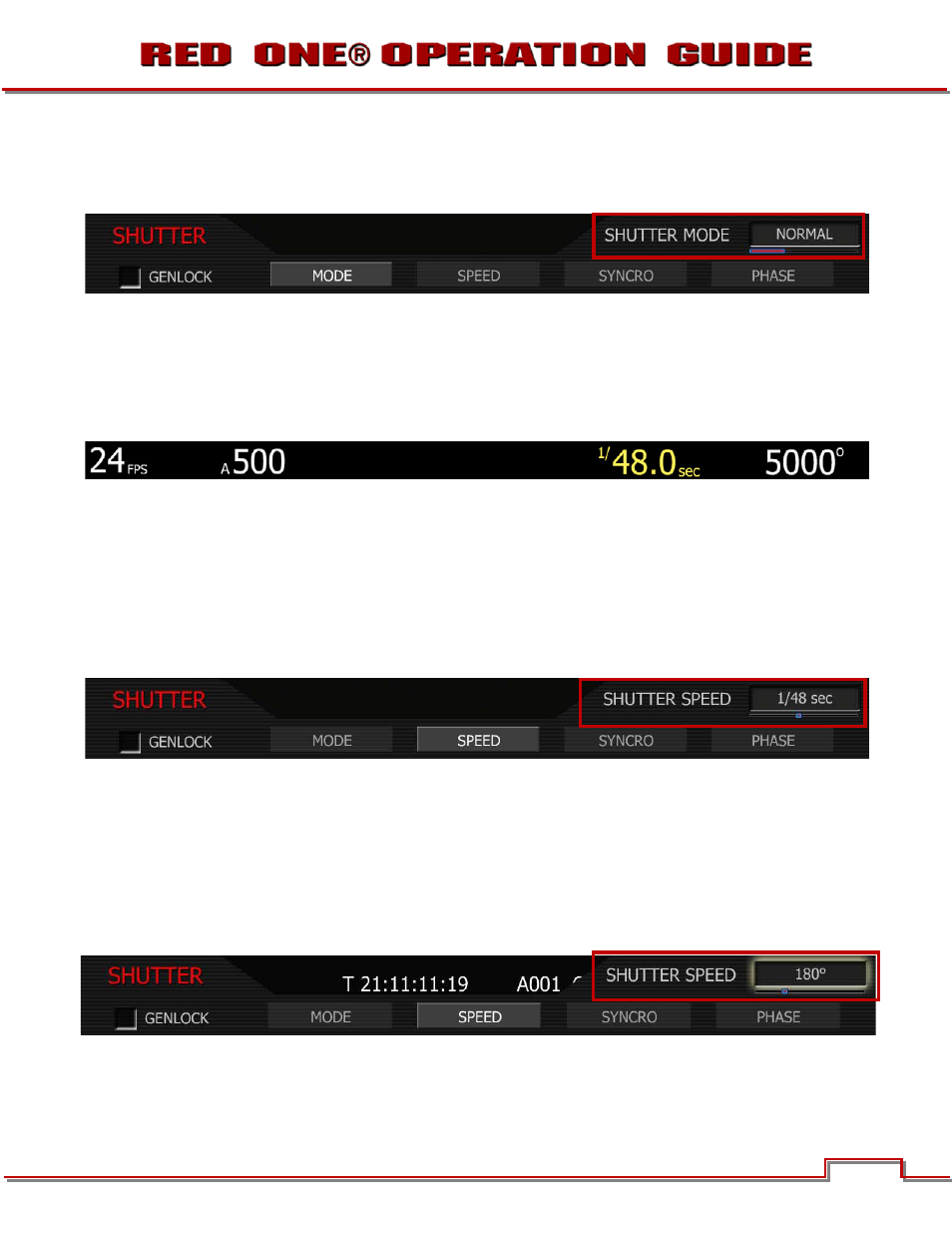

To adjust: Select MODE and twist joystick to change the highlighted SHUTTER MODE box to the desired

setting.

NOTE: If operating in Relative or Syncro modes, the shutter speed is reported in yellow text.
NOTE: If the operator requests a shutter speed (angle) that is outside the capability of the camera

in that mode, the actual shutter speed (angle) used will be reported in red text.

SPEED

When operating in

Normal mode, the Shutter Speed value used by the camera is fixed, i.e. it is inde-

pendent of the image capture rate. This is opposite from a mechanically shutter camera. Default is 1/48

sec.

Decreasing Shutter Speed will allow more light to fall on the sensor, increasing exposure and motion blur

on any objects moving within the frame. As Shutter Speed increases less light falls on the sensor, de-
creasing exposure and motion blur on objects moving within the frame.

To adjust: Select SPEED and

twist joystick to change the highlighted SHUTTER SPEED box to the desired setting.
Exposure times in 1/Second presets: 1/24, 1/25, 1/30, 1/32, 1/33, 1/40, 1/48, 1/50, 1/60, 1/96, 1/100,

1/120, 1/125, 1/192, 1/200, 1/250, 1/384, 1/400, 1/500, 1/696, 1/800, 1/1,000, 1/1,200, 1/2,000

sec.

NOTE: If SYSTEM > SETUP > PREFERENCES > DISPLAY >

STATUS

is set to DEGREES, the shutter

speed values will be displayed in degrees.

Exposure time in degree presets: 360, 345, 288, 270, 262, 216, 180, 173, 144, 90, 86, 72, 69, 45, 43, 35,

22, 22, 17, 12, 11, 9, 7, 4.
