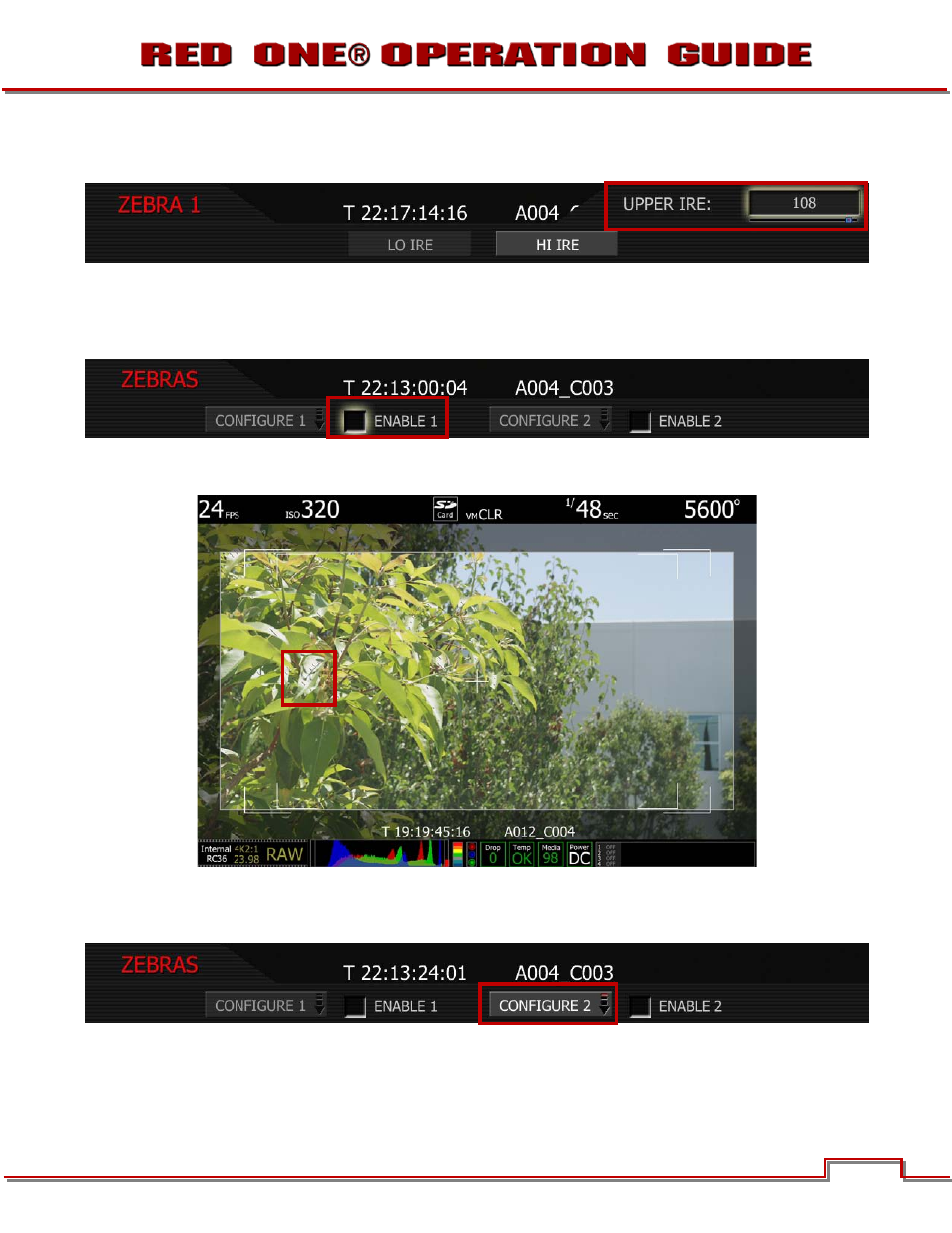

To adjust HI IRE: Select HI IRE and twist joystick to change the UPPER IRE: box to the desired setting

between 93 and 109 (default is 108).

ENABLE 1
By selecting this checkbox, settings under CONFIGURE 1 are used. To select: Highlight and push in or

down on joystick to place checkmark in ENABLE 1 checkbox. Default is Disabled.

Areas of the image exposed within these ranges will be indicated by crosshatched overlays. Zebra 1 is

displayed in the image below.

CONFIGURE 2
Takes you to ZEBRA 2 sub-menu. Choose between LOW IRE and HI IRE settings.
