85

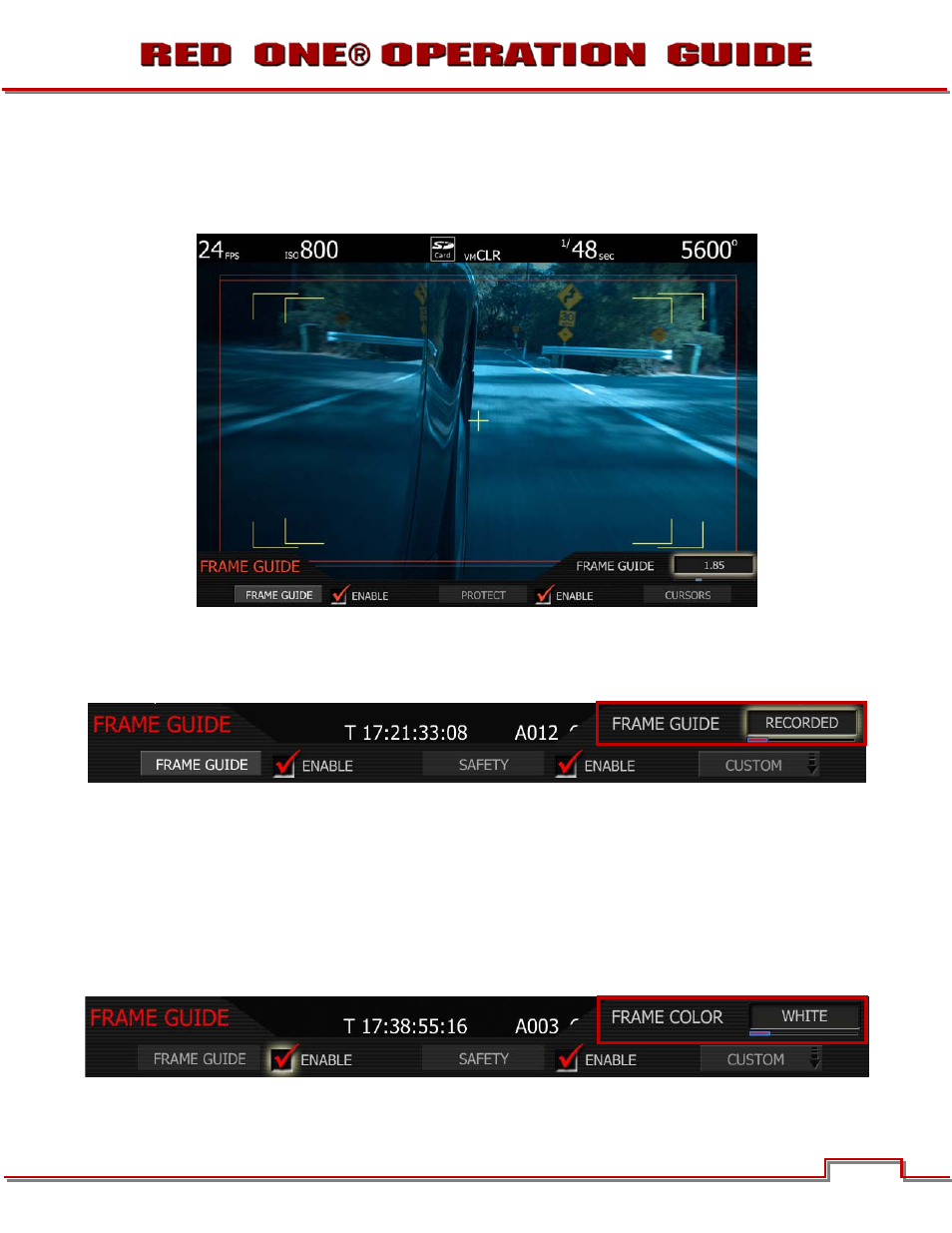

FRAME GUIDE
This sub-menu provides a selection of frame guides and safe action and safe title guides. User definable
safe action and safe title guides may be saved as a USER PREFERENCE, thereby permitting the camera
guides to be fully customized for any application.
FRAME GUIDE
Options are RECORDED, 2.39, 1.85, 4:3, and 16:9. Film projection areas are best suited using 1.85 or
2.39 aspect ratios and television display areas using 16:9 or 4:3 aspect ratios.
1. To change frame guide aspect ratio, select FRAME GUIDE.
2. FRAME GUIDE box will highlight to allow you to choose from FULL to 16:9. Default is FULL.
3. Twist joystick to change the highlighted FRAME GUIDE box to the desired setting.
4. Move joystick left, right or up to select and exit.
FRAME GUIDE ENABLE
Allows you to set the frame guide line color to White, Black, Blue, Red or Yellow for maximum color con-
trast with the scene you are shooting. Checked by default.
