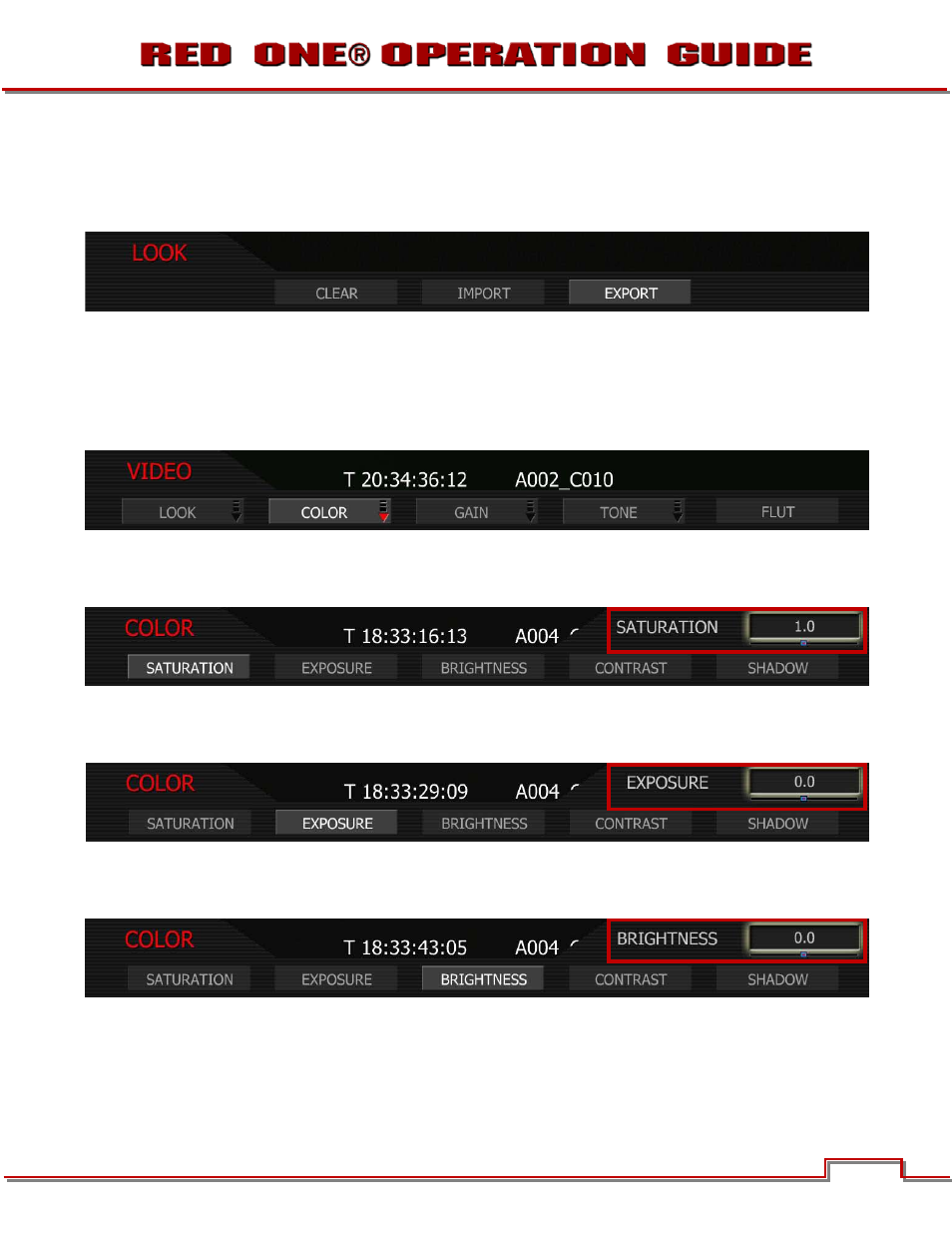

EXPORT
The current settings for Color and Gain parameters are stored to the SD Card. The camera generates a

file name of the format PROFILE_**.RLK. For detailed information on exporting LOOK files, go to

COLOR

The Color sub-menu selects various image processing parameters that may be applied to the monitor

path (SATURATION, EXPOSURE, BRIGHTNESS, CONTRAST, and SHADOW). They do not affect the ac-
tual REDCODE RAW data being recorded.

To adjust: Select the desired setting and twist joystick to

change the highlighted box to the desired setting.

SATURATION
Adjusts color saturation. Range is 0.0 (monochrome) to + 2.0 (super color). Default is 1.0.

EXPOSURE
Adjusts exposure compensation. Available exposure range is – 7.0 to +7.0. Default is 0.0.

BRIGHTNESS
Adjusts brightness without crushing highlights. Available range is – 20 to +20. Default is 0.0.
