27
NOTE: The internal test signals cannot be recorded; they are provided to align external video re-
corders or monitors connected to the camera via the HD-SDI or HDMI ports.
RED LCD / RED EVF / HD-SDI / HDMI DISPLAY ELEMENTS
The following is a general representation of elements displayed on RED LCD, RED EVF and external moni-
tor outputs (HD-SDI, HDMI).

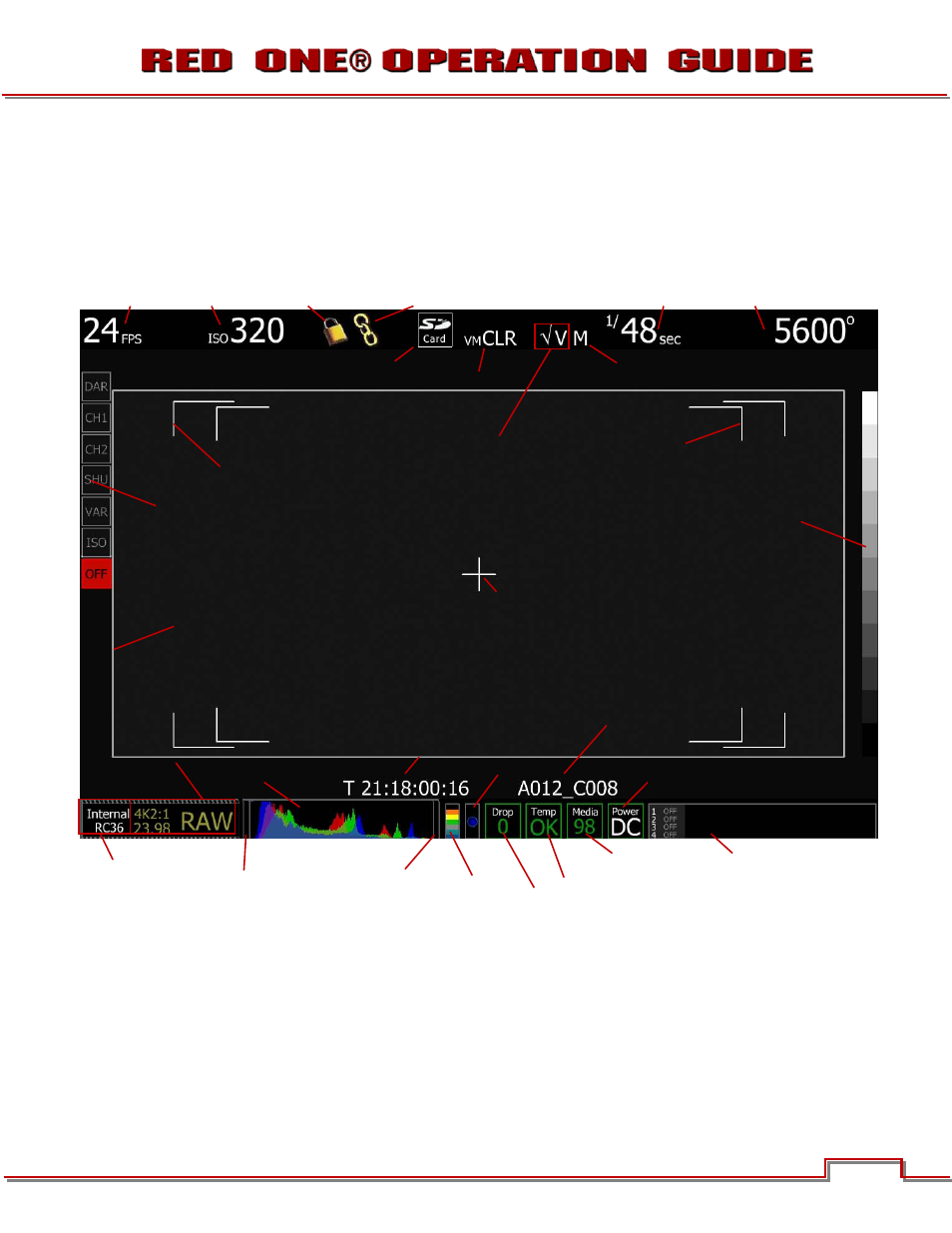

Figure 10 – RED LCD Display
The RED LCD status display elements include:
• Frame Rate: Current frame rate, 24 fps in this
example
• ISO Rating: Displays current exposure rating
• Genlock: Displays current Genlock status
• Jam Sync: Displays current Jam Sync status
• View: Current view settings
• False Color Check Mode: Displays current
false color check mode (video shown)
TIMECODE
ISO RATING WHITE BALANCE SHUTTER SPEED
MEDIA /
QUALITY
FORMAT /
PROJECT
FRAME RATE
FRAME RATE
MEDIA
POWER
AUDIO METER
HISTOGRAM
DROP
RAW LEVEL
METER
RAW CLIP
METER
TEMPERATURE
VIEW
SD MEMORY CARD
INSTALLED
NEXT CLIP FILENAME
FRAME GUIDE
PICTURE CENTER
SAFE ACTION
SAFE TITLE
RAW NOISE
LEVEL BAR
RAW CLIP
LEVEL BAR
GENLOCK JAM SYNC
FALSE COLOR CHECK
MODE (VIDEO)
MASTER / SLAVE
INDICATOR
EVF MENU
GRAY SCALE
