Undo / exit buttons, Shortcuts, Joystick operation – RED ONE OPERATION GUIDE User Manual

Page 20: Joystick, Operation

Build 31 v31.6.16

NOVEMBER 28, 2011

Below the LCD status display are the Joystick (E), Exit (D), Undo / Alternate Action (F) and

RECORD

(H)

buttons, plus the

SENSOR

(B),

AUDIO

SYSTEM

(G) menu buttons. The camera control menus are

logically grouped under these last three buttons to provide streamlined camera operations.
The status display reports key camera status values, and is complimented by two LED’s (I): the REC LED

provides record status (illuminates Red when recording), while the OK LED indicates the camera is ready

for operation (illuminates Green when ready).

UNDO / EXIT BUTTONS

EXIT (D) will exit the menus.

SHORTCUTS

Press and hold

UNDO (F) and SYSTEM (G) menu buttons at the same time to navigate to the last dis-

played menu before exiting.

Press and hold

UNDO (F) and EXIT (D) buttons at the same time to unmount media from the camera.

Refer to

REMOVE MEDIA FROM CAMERA (UNMOUNT)

under APPENDIX B: MANAGING DIGITAL

MEDIA.

Press and hold

UNDO (F) and press in on JOYSTICK (E) to display the current camera build version

on the camera LCD display.

Press and hold

UNDO (F) and press CLIP START/PREVIOUS CLIP button to cycle the HD-SDI and

HDMI output between VIDEO [720p] and MENUS [DVI]. Refer to SYSTEM MENU CONTROLS > MON-

ITOR >

PREVIEW

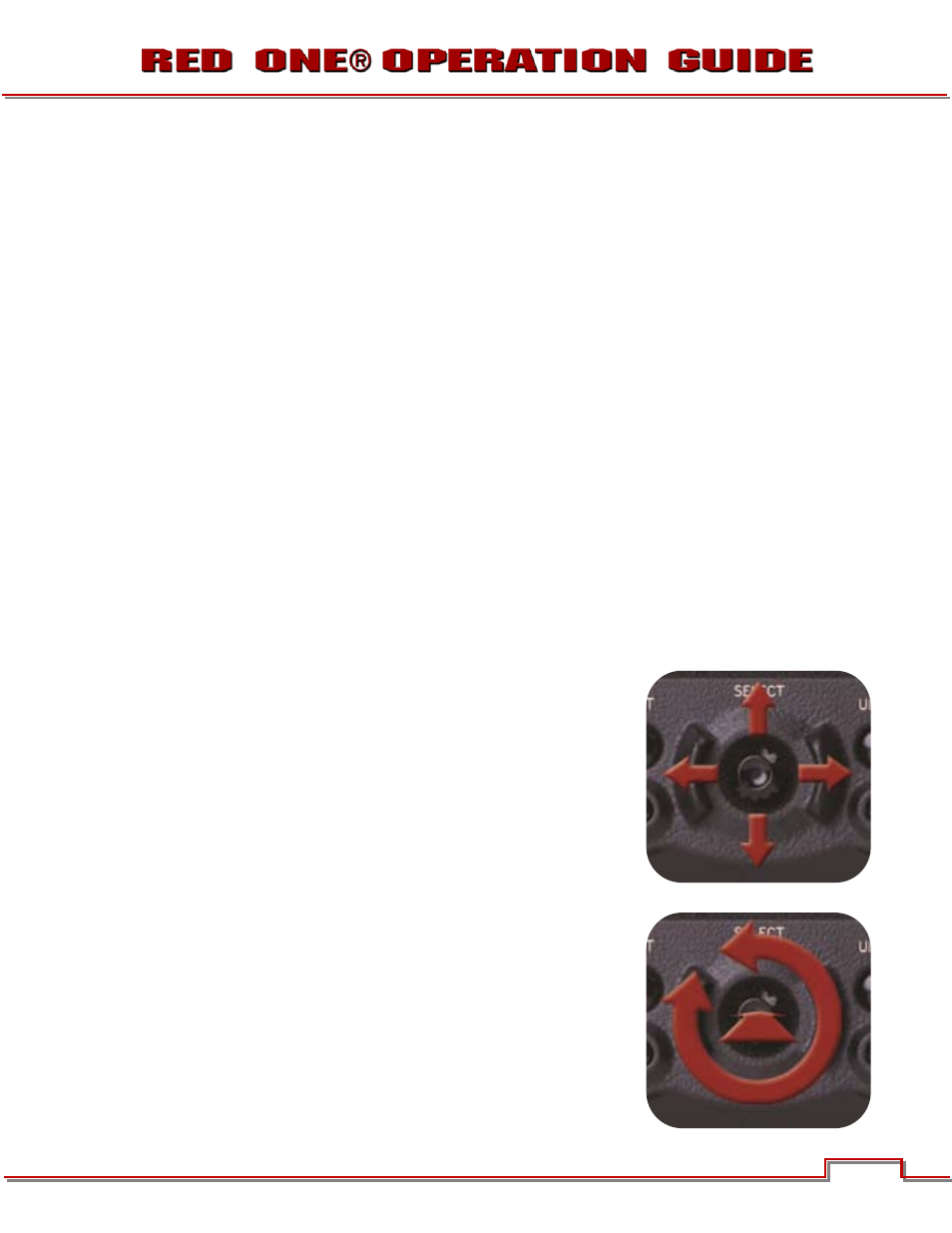

JOYSTICK OPERATION

Left/Right to navigate menu selections.

Up to go previous screen (will exit menu when at top level).

Down to go to next menu (similar to Push to select a menu item).

Rotate (turn/twist like a knob) changes value in highlighted box.

Push (like a button) to enter a selection.
