RED EVF

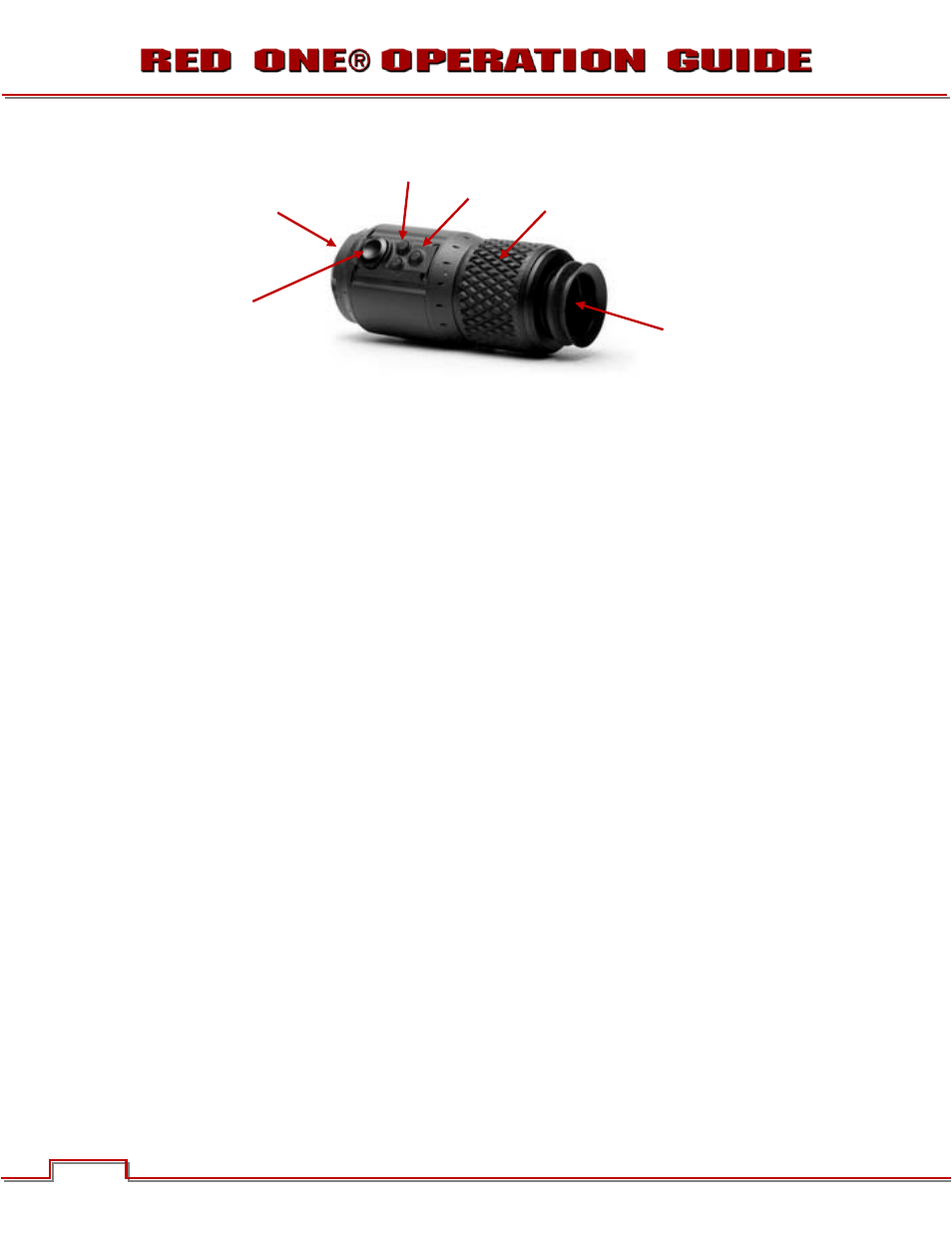

Figure 9

–

RED EVF

The RED EVF comprises the following components:
A. High-resolution color display: Provides a 1280 pixel x 848-pixel resolution progressive scan color im-

age equivalent to viewing a 17” reference color monitor from a distance of approximately 4 ft.

B. Focus ring: May be adjusted for optimal subject focus for your eye. Available diopter range is +1.5 to -

2.0.

C. Rotary encoder/switch: Used to adjust a variety of parameters. These include the EVF Intensity, but

also camera parameters such as Ch1 Audio Level or Ch 2 Audio Level, and Shutter speed, Varispeed
frame rate and ISO setting.

For detailed information on enabling and using this feature, go to

EVF

MENU

under DISPLAY in PREFERENCES under SETUP in SYSTEM MENU CONTROLS.

D. Two (2) programmable USER KEY 3 and 4 buttons. When looking from the side of the RED EVF, US-

ER KEY 3 is on the top and USER KEY 4 is on the bottom.
• Default setting of USER KEY 3 is COLOR (turns FALSE COLOR -

EXPOSURE

On/Off).

• Default setting of USER KEY 4 is VIEW RAW (toggles the

VIEW

between REDColor and RAW).

• USER KEY 3 and 4 can be programmed. Refer to SYSTEM MENU CONTROLS > PREFERENCES

KEY-MAP

E. One (1) fixed function button.

• The fixed function button (located closest to the focus ring) selects 1:1 FOCUS CHECK (Image

Zoom) mode. When selected this shows the central region of the

MYSTERIUM

sensor in native 4K

resolution.

NOTE: This function is not available during RECORD.

F. Tally Light: Illuminates during recording. Can be turned off through SETUP > PROGRAM > FEED >

TALLY
