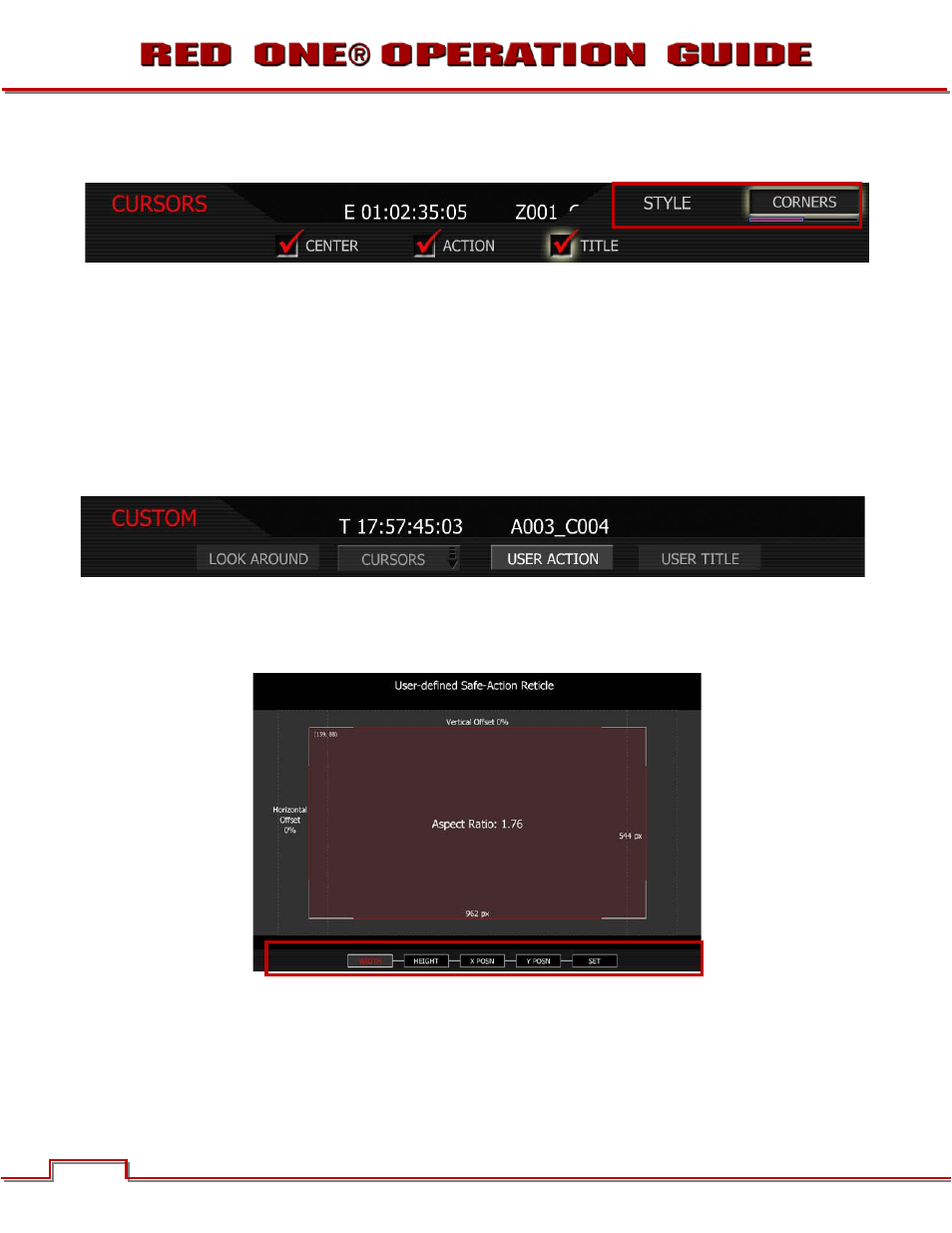

TITLE: Enables / disables inner guides. Style may be specified as a corner marker or a rectangle. Default
is checked with CORNERS selected.
1. To set ACTION or TITLE, push in or down on joystick to place checkmark in ACTION or TITLE
checkbox.
2. STYLE box will highlight to allow you to choose between CORNERS or RECTANGLE.
3. Twist joystick to change the highlighted STYLE box to the desired setting.
4. Move joystick left, right or up to select and exit.
USER ACTION
Push to program a custom Safe Action area. Area may be adjusted for width, height, and center offset.
User Action values may be saved in USER PREFERENCE files.
1. To adjust, select desired setting to modify.
2. Twist joystick to change the highlighted the desired setting.
3. Push up or in on Joystick or push EXIT button to set and exit (you cannot go back to the menu).
WIDTH: Adjusts the width of the guide. Maximum width of the guide is 1280 pixels.
HEIGHT: Adjusts the height of the guide. Maximum height of the guide is 720 pixels.
NOTE: The camera will display the aspect ratio of the guide based on these two values
.
X POSN: Adjusts the horizontal center position of the guide.
Y POSN: Adjusts the vertical center position of the guide.
