S tint (slave camera tint trim), S wbal (slave camera white balance trim), S flut (slave camera flut trim) – RED ONE OPERATION GUIDE User Manual

Page 42: Shutter

Build 31 v31.6.16

NOVEMBER 28, 2011

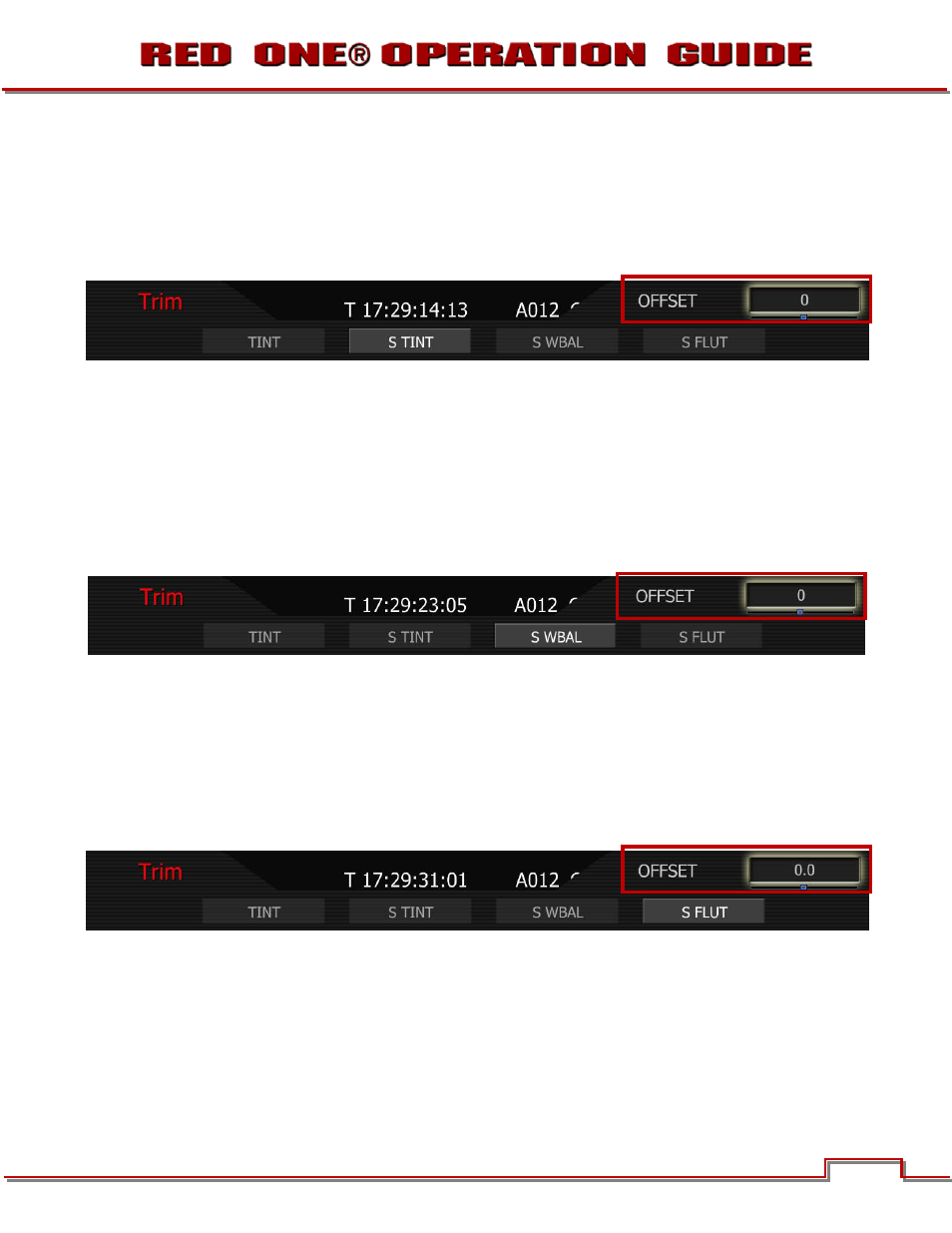

S TINT (SLAVE CAMERA TINT TRIM)
Only used when in Master / Slave configuration, S TINT provides a trim (offset) to the programmed or cal-

culated TINT value of the Slave camera. This permits a difference in light color tint between direct and re-

flected light paths of a beam split mirror to be compensated by trimming the monitor path output of the

Slave camera.
Range is -100 to 100, default is 0

NOTE: Pushing AUTO WB will cause a calculation of a new Tint value for both Master and Slave
cameras and will reset the S TINT trim to 0.

S WBAL (SLAVE CAMERA WHITE BALANCE TRIM)
Only used when in Master / Slave configuration, S WBAL provides a trim (offset) to the programmed or

calculated WBAL value of the Slave camera. This permits a difference in light color temperature between

direct and reflected light paths of a beam split mirror to be compensated by trimming the monitor path

output of the Slave camera.
Range is -100000 to 100000, default is 0

NOTE: Pushing AUTO WB will cause a calculation of a new WBal value for both Master and Slave

cameras and will reset the S WBAL trim to 0.

S FLUT (SLAVE CAMERA FLUT TRIM)
Only used when in a Master / Slave configuration, S FLUTL provides a trim (offset) to the programmed

FLUT value of the Slave camera. This permits a different in light intensity between the direct and reflected

light paths to be compensated by trimming the monitor path output of the Slave camera.
Range is -4.0 to 4.0, default is 0.0
