ure to do so may result in lost data or corrupted files. Refer to

This procedure outlines the formatting of REDFLASH Compact Flash (CF) cards, REDMAG, RED-DRIVE

and RED-RAM magazines using the RED ONE camera. Formatting a REDFLASH CF card, REDMAG or

RED-RAM will take about 10 -15 seconds; a RED-DRIVE formats in less than a minute.

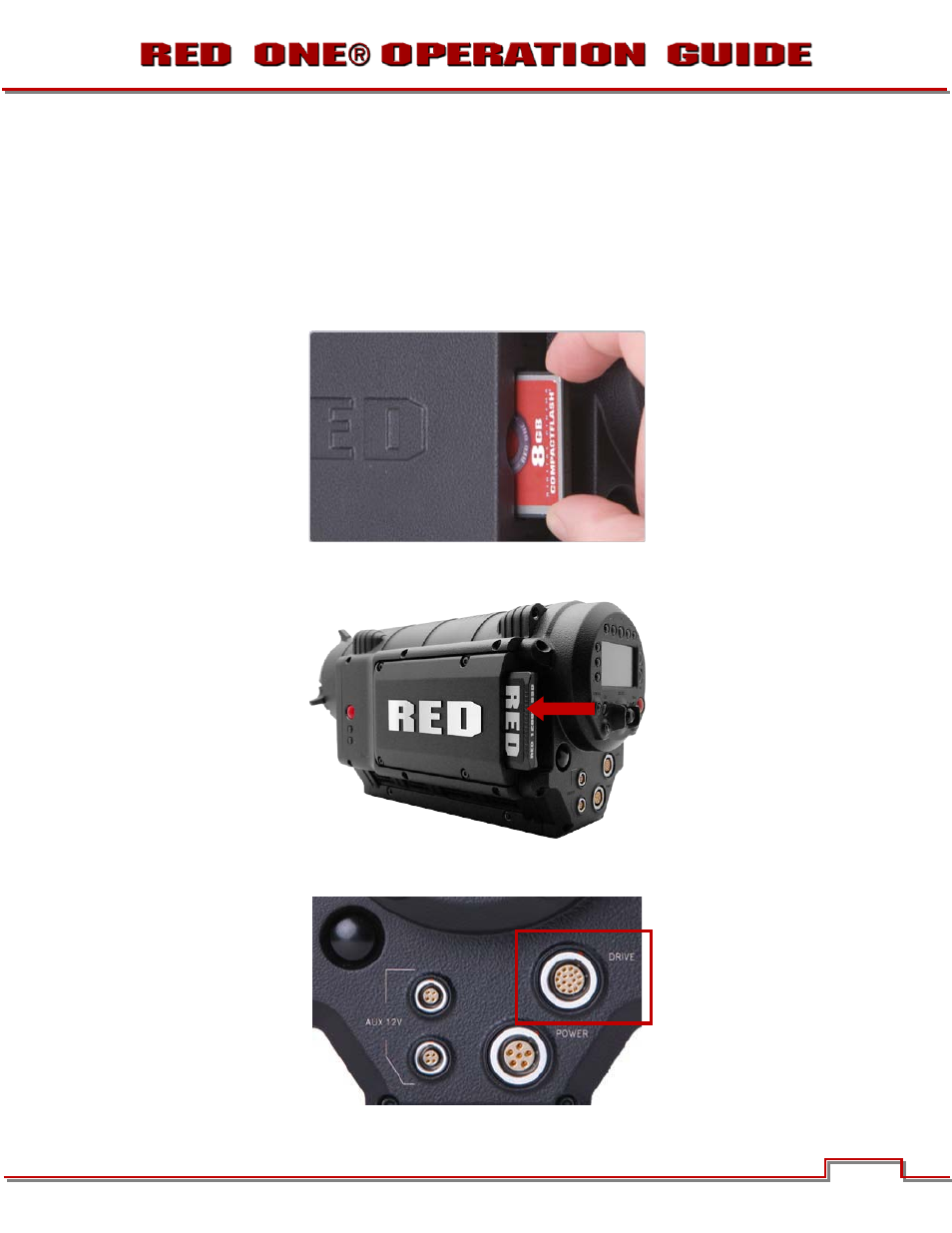

1. Insert or connect media to camera.

Insert the CF card with the manufacturer’s label facing outward (away from camera body). Push

the CF firmly into the CF slot, but without using excessive force to prevent damage.

Or insert the REDMAG with RED facing outward (away from camera body). Push the REDMAG

firmly into the Side SSD slot, but without using excessive force to prevent damage.

Or attach a RED-DRIVE or RED-RAM magazine to the DRIVE connector (e-SATA port) located on

the rear of the camera using the 16-pin e-SATA cable provided.
