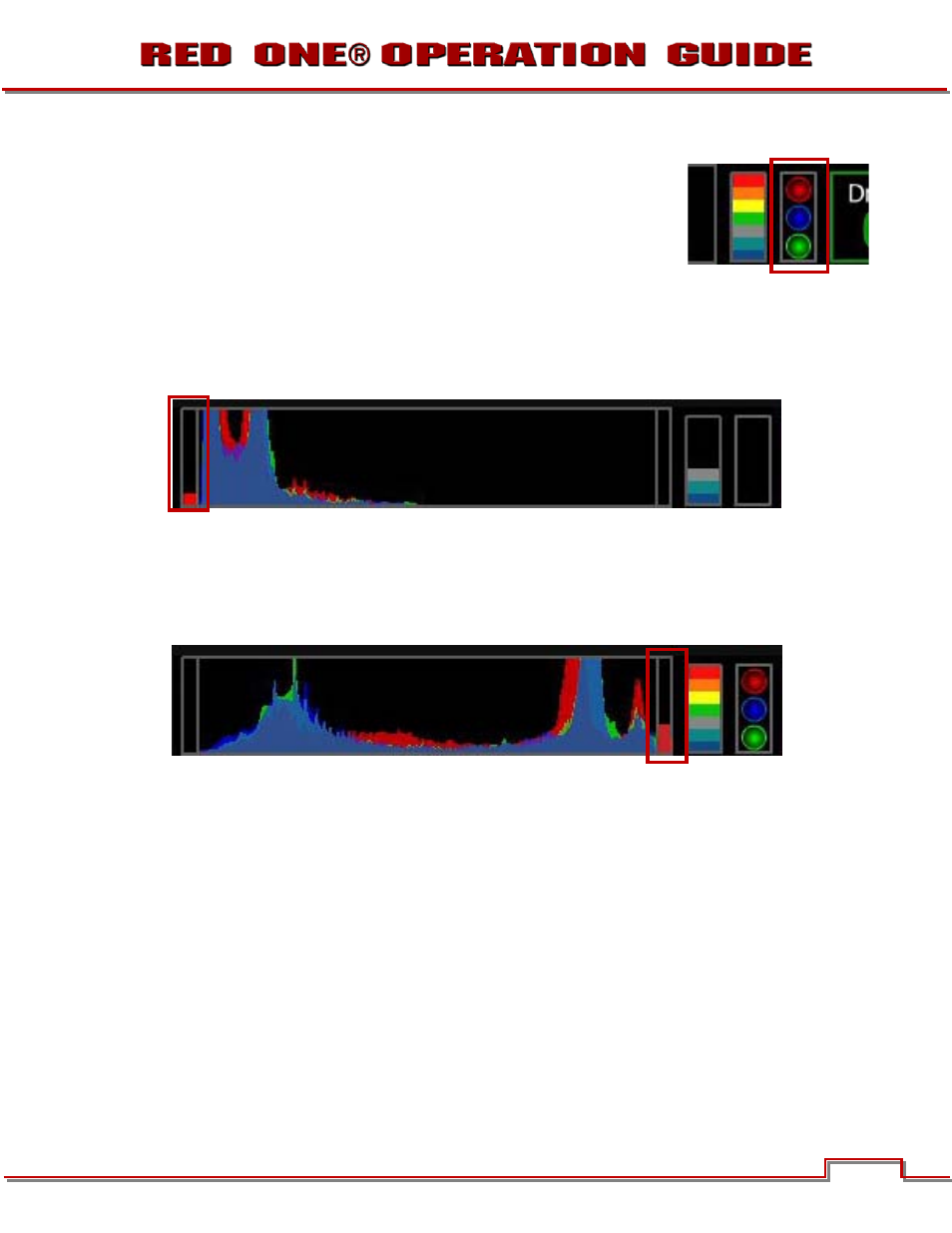

RAW CLIP METER
The RAW Clip meter looks a traffic light style meter and indicates if either of
the Red, Blue or Green channels of the RAW sensor data are clipping. This
meter is unaffected by White Balance, ISO, VIEW or LOOK settings and there-
fore represents a true measurement of the exposure levels of the sensor at all
times.
RAW NOISE LEVEL BAR
The RAW noise level bar displays the amount of pixels in the image that are in noise. For example, if the
bar is about 1/8 of the total height, this would indicate approximately 1/8 of the total pixels in the image
are at an exposure level at risk of displaying noise when pushed at higher ISO or FLUT values in post pro-
duction.
RAW CLIP LEVEL BAR
The RAW clip level bar displays the amount of pixels in the image that are clipping. For example, if the bar
is about 1/4 of the total height, this would indicate approximately 1/4 of the total pixels in the image are at
an exposure level at risk of clipping and may not be recoverable by lowering ISO or FLUT values in post
production.
