CAMERA CONTROLS, CONNECTORS AND DISPLAYS

This section describes the physical controls, connectors and displays on the RED ONE camera body.

CAMERA CONTROLS

LEFT FRONT OF CAMERA

This section describes the physical controls on the RED ONE camera body.

PL Lens Mount Cover

Record Button

User Keys 1 and 2

SD Memory Card

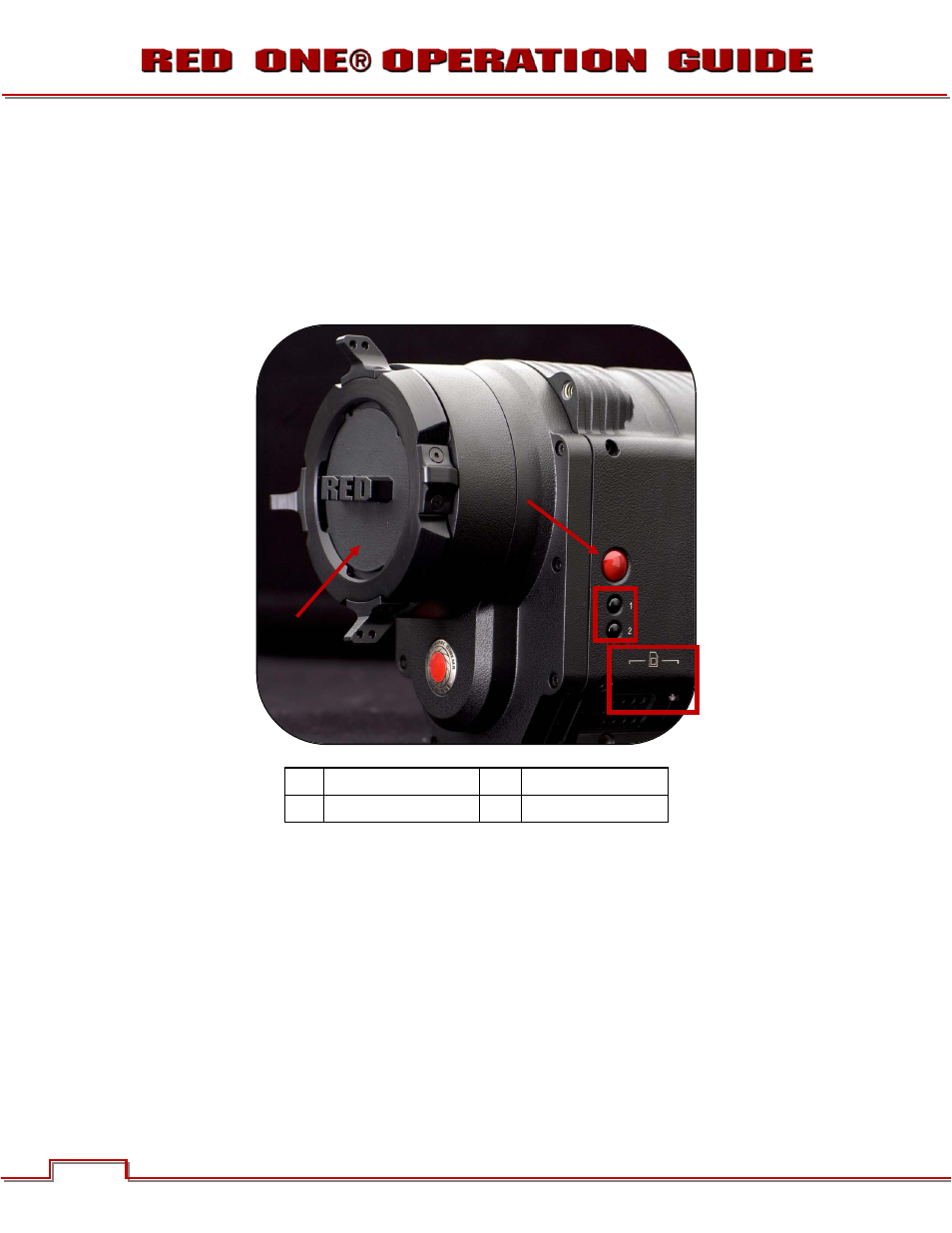

Figure 1 – Left Front Camera Controls

A PL Lens mount is provided as standard with the RED ONE camera. The mount is compatible with the

majority of S35mm, 35mm and S16mm cinematography lenses. In addition, broadcast B4 mount lenses

may be used if the camera is equipped with the optional B4 to PL mount optical converter.
The PL Lens mount (A) includes a 4-pin S4/i data interface. This allows the camera to gather lens metada-

ta from lenses supplied by RED and Cooke Optics, Ltd. using S4/i protocol.
On the left side of the camera body is a RECORD key (B) and two User Keys (C). User Key 1 is pre-

assigned to

AUTO WB

and User Key 2 is pre-assigned to 1:1 FOCUS CHECK. Focus check zooms in the

image to allow for precise focus adjustment. These assignments can be changed in the KEYMAP prefer-

ences menu. Refer to SYSTEM MENU CONTROLS > SET UP > PREFERENCES >

KEY-MAP

NOTE: If User Key 2 assignment is changed, FOCUS CHECK is still available through the EVF but-

tons. Refer to CAMERA DISPLAYS >

RED EVF

for additional information.
