HAPSITE ER Operating Manual
Chapter 3
Operating HAPSITE in Portable Mode
3.1 Starting the HAPSITE in Portable Mode
Portable Mode refers to using the HAPSITE without the Laptop computer.
Required Materials
HAPSITE (Analytical Module)
Internal Standard Gas Canister
Carrier Gas Canister
Charged Battery
AC to DC Power Converter Power Supply
Probe
Procedure
1
Assemble the HAPSITE as shown in
Section 2.2, Basic Assembly, on page 2-5
.
2
Press the POWER button on the front panel. The word POWER will illuminate.
Powering on the HAPSITE takes one (1) to two (2) minutes. See
Figure 3-1
.

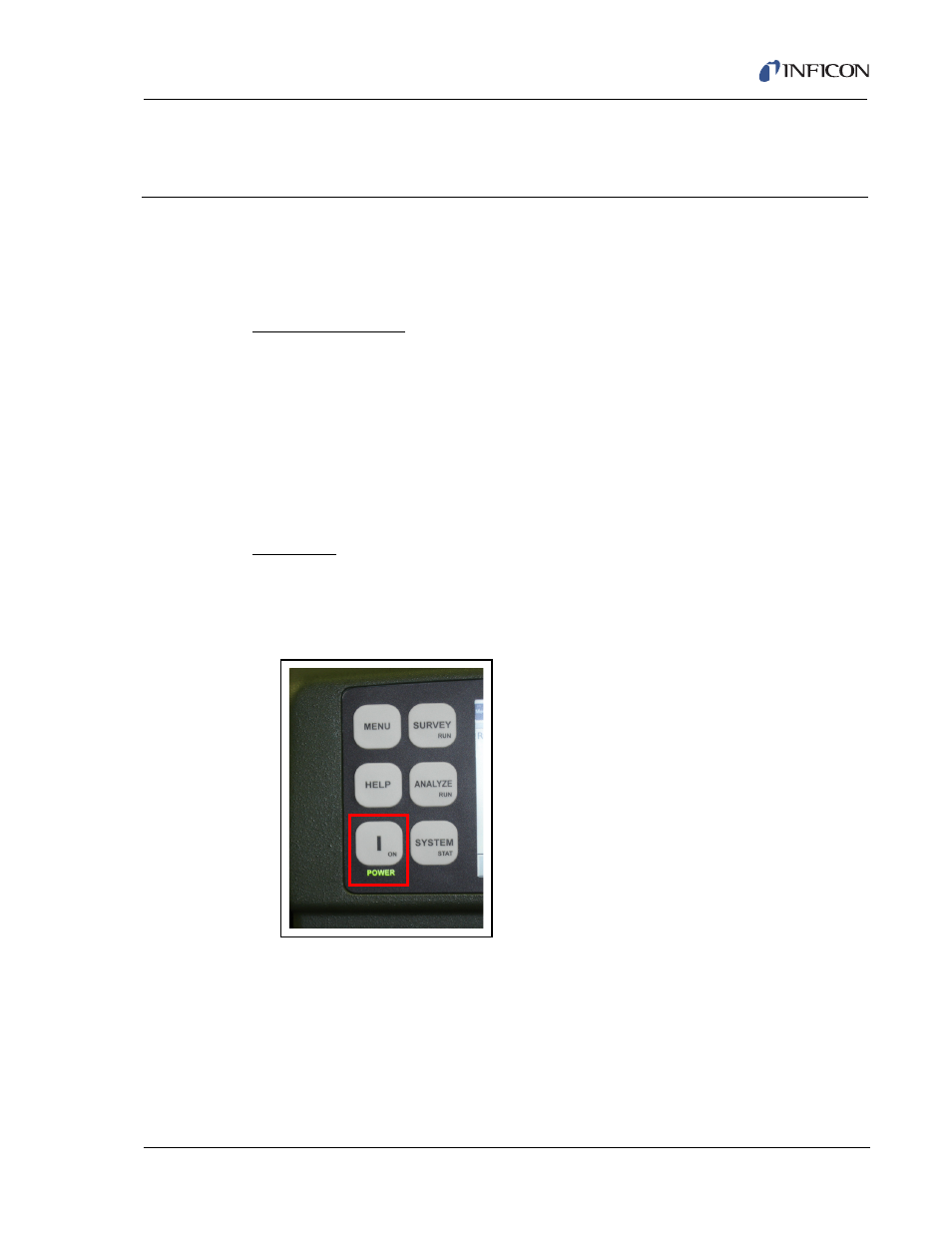

Figure 3-1 The Power Switch
NOTE: Power on the HAPSITE while connected to AC power. Using battery
power to turn on and heat the HAPSITE will consume over 40% of the
battery’s charge.
3
The HAPSITE will boot in approximately one minute and will sense which
sample configuration (i.e., concentrator) has been installed. It will begin to
prepare the default method for this sample configuration.
