HAPSITE ER Operating Manual

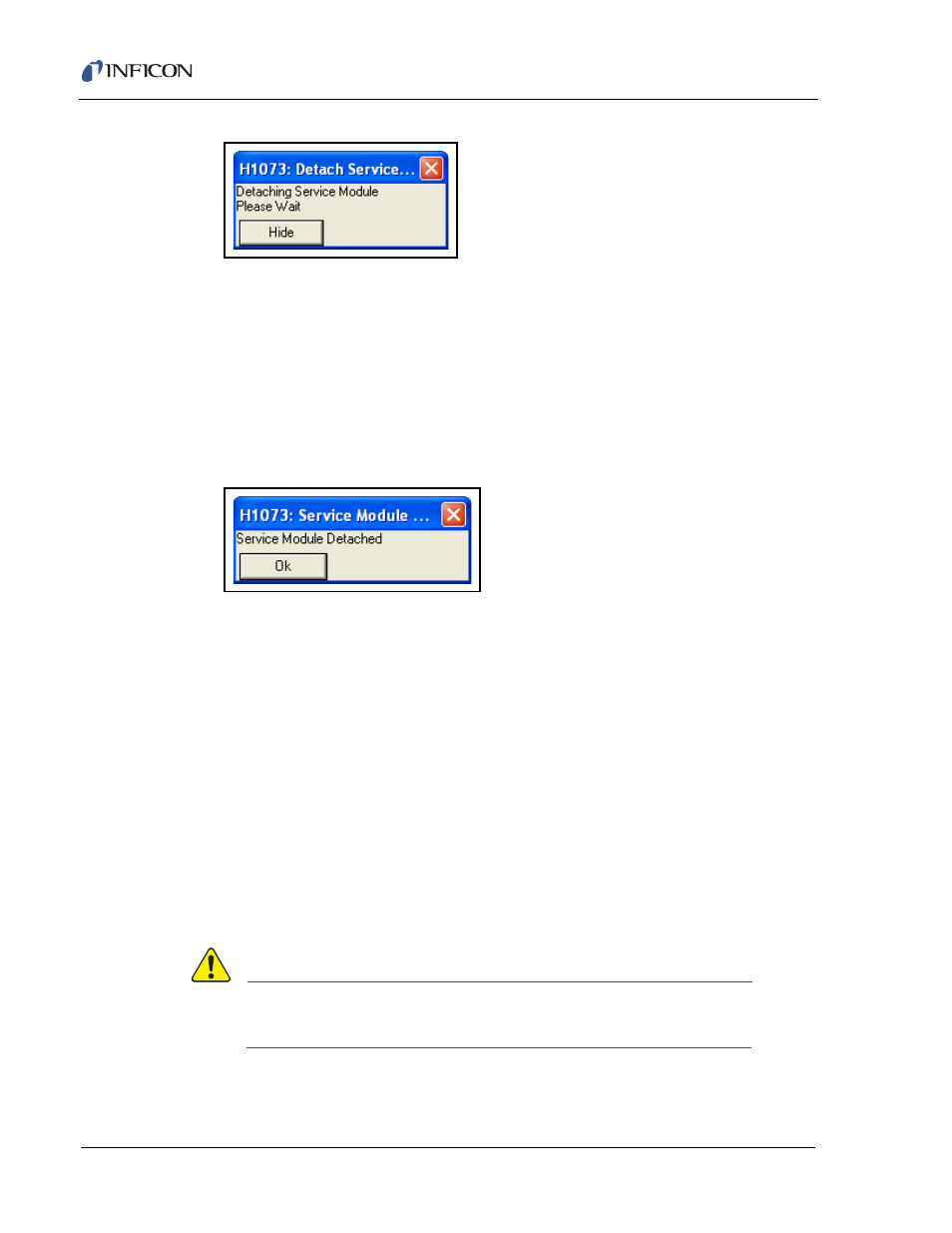

Figure 15-26 Detach In Process
5 The HAPSITE Vacuum Interconnect valve will close shortly after selecting
DETACH.
NOTE: The detach procedure typically takes about 3 to 5 minutes to complete.
NOTE: After pressing the Detach button and selecting Yes on the confirm
window, the HAPSITE Properties window can be closed.
6 When the Detach procedure is complete, a message will appear confirming a
successful detachment. See
Figure 15-27 .
Figure 15-27 Detach Successful
NOTE: To place the Service Module in storage see section 15.10, Storing the
Service Module, on page 15-20 .
15.8.2 Using the Front Panel Display to Detach
1 Touch Menu or push MENU.
2 Touch the PROBES & SM icon. Alternately, push the STAT button until the
PROBES & SM page is displayed.
3 Touch the DETACH SM button. Alternately, using the arrow keys, highlight the
DETACH SM button. Push OK SEL
4 A bar graph displaying the progress of the Detach procedure will appear on the
front panel of the HAPSITE.
5 The message Service Module Found, Not Attached will be displayed on the
screen.
CAUTION
Wait until the Turbo Speed reads zero before physically
removing the HAPSITE from the Service Module.
6 To place the Service Module in storage, see section 15.10, Storing the Service
Module, on page 15-20 .
