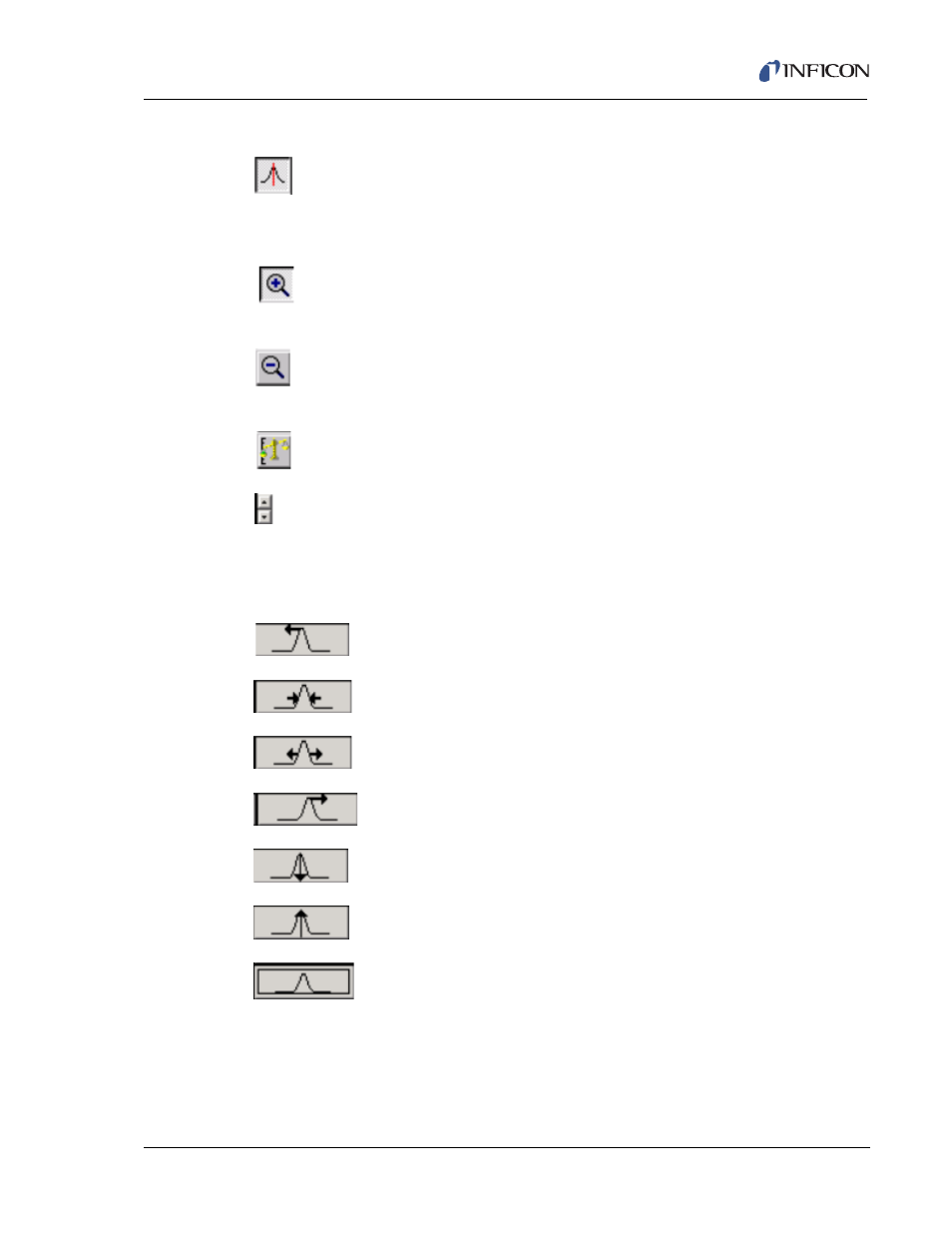

7.5.4.1 Peak Scan Window Controls
Mass Adjust . . . . . . . . . . . . Enables the cursor to select a mass peak
and drag the mass peak to a different
position on the mass axis.
Zoom . . . . . . . . . . . . . . . . . . Enables the cursor to select a section of the
peak scan window and zoom to that section.
Zoom Out. . . . . . . . . . . . . . . Returns the window to the original X axis and
Y axis scale.
Zoom Out Y axis . . . . . . . . . Returns the Y axis to original scale.
Y Axis Scale . . . . . . . . . . . . . . Increase or decreases the Y axis scale.
NOTE: For the following controls, the Left Mouse Button (LMB) is used to change
by 1 increment, shift-LMB changes in increments of 10, and Ctrl-LMB
changes by increments of 100.
. . . . . . . . . . . . . . . . . Shifts the mass peak left.
. . . . . . . . . . . . . . . . . Increases the peak resolution.
. . . . . . . . . . . . . . . . . Decreases the peak resolution.
. . . . . . . . . . . . . . . . . Shifts the mass peak right.
. . . . . . . . . . . . . . . . . Decreases the Ion Energy.
. . . . . . . . . . . . . . . . . Increases the Ion Energy.
. . . . . . . . . . . . . . . . . Zooms to a single peak scan display window.
