HAPSITE ER Operating Manual
The SKIP HEATER option allows for the HAPSITE to run when the probe is cold.
This is useful in cold climates, when it may be difficult for the probe to heat to the
set point temperature. See
Figure 3-101
.

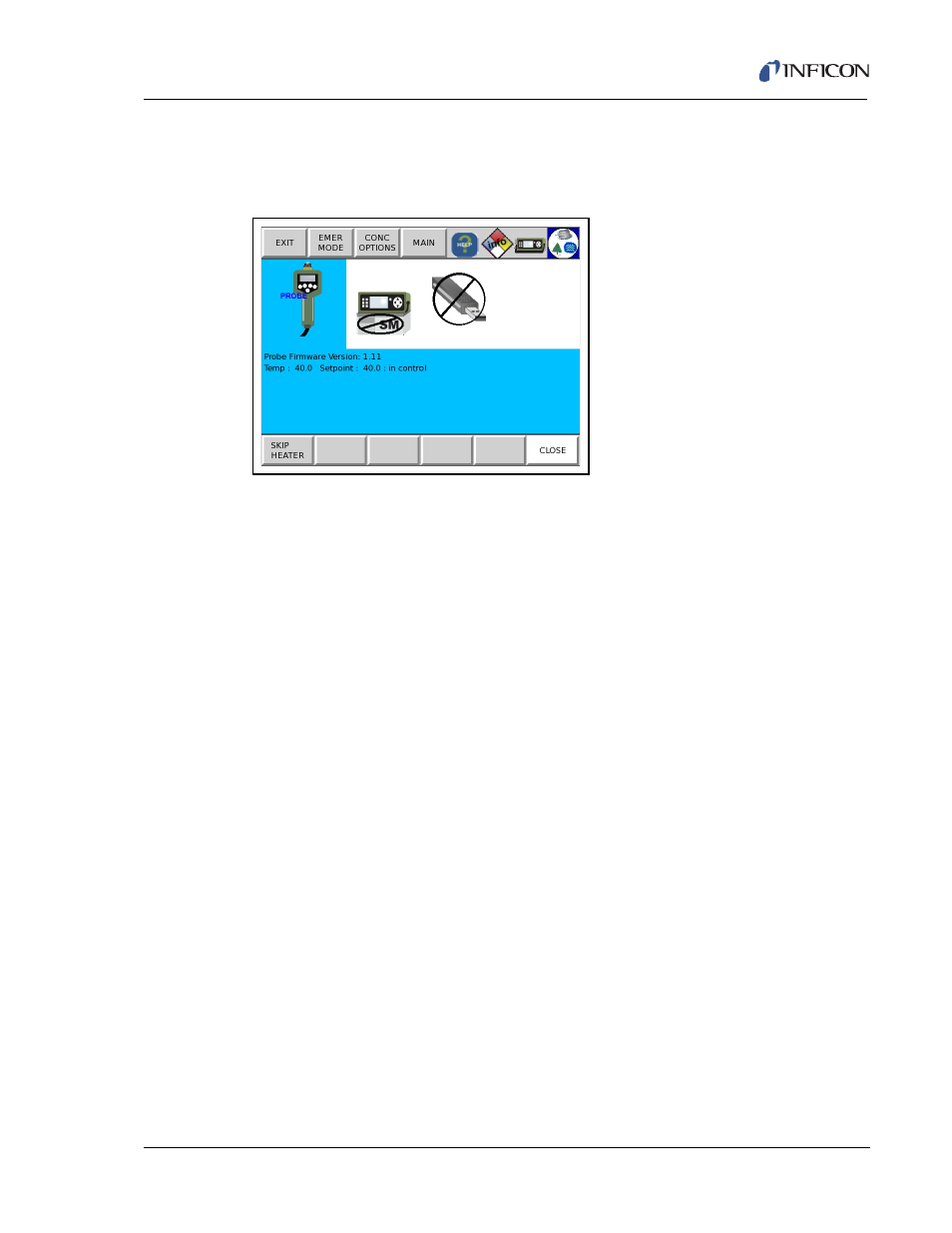

Figure 3-101 Probe Icon
If the Service Module is attached, the Service Module icon will be shown. Touching
the Service Module icon will display the installed version of the service module’s
firmware and the turbo speed of the service module’s pump. Options for attaching
and detaching the service module can be found through this screen. For more
information on the service module, see
Chapter 3, Operating HAPSITE in Portable
.
The Headspace Sampling System icon will appear when it is attached to the
HAPSITE. Touching the HSS or SituProbe icon will display the information
regarding the firmware version and accessory’s heaters. See
Headspace Sampling System, on page 13-1
Section Chapter 14, SituProbe,
for further information.
3.8 EXIT Menu
The EXIT menu is located on the top row of the front panel. See
Figure 3-102
. This
option will access Turn Off, Reboot or Standby. Turn Off will shut down the
HAPSITE’s power. Reboot will reset the microprocessor in the HAPSITE and
reload the drivers. It will also restart the operating system, the HAPSITE ER
program and the front panel program. The Standby option will put the system into
Extended Standby. Refer to
for Extended Standby
instructions.
1
Touch EXIT. Alternately, use the arrow keys to highlight EXIT and push OK
SEL. See
Figure 3-102
.
